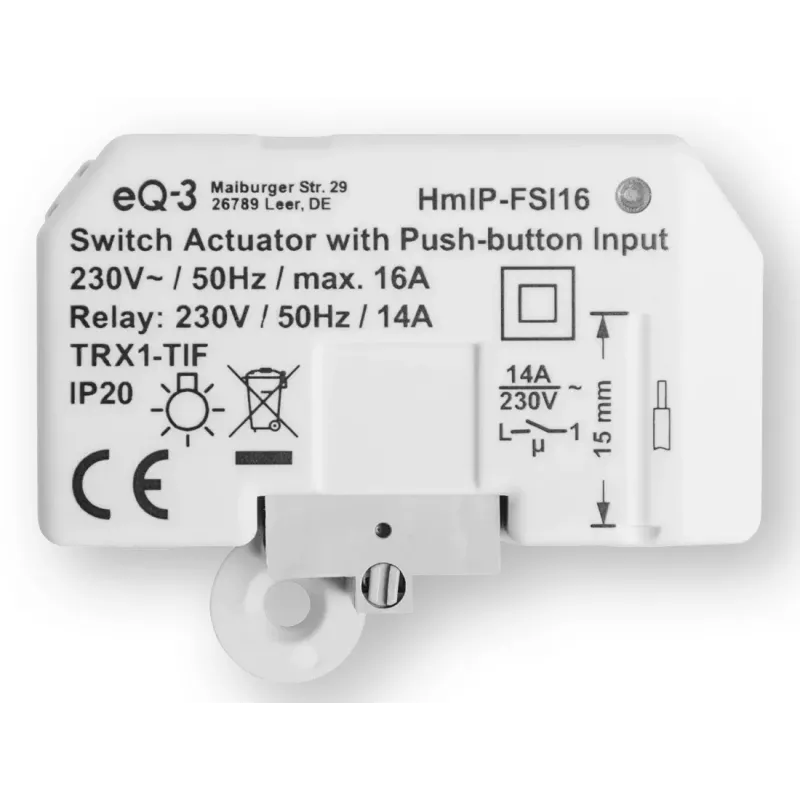

Homematic IP attuatore di commutazione con ingresso pulsante, da incasso V2

The Homematic IP Switching Actuator with Push-Button Input, Flush-Mounted V2 is a smart home device designed for in-wall installation. It enables switching of electrical loads up to 16 A and includes a push-button input for manual control. Part of the Homematic IP system, it integrates seamlessly with the Homematic IP Access Point or CCU3 for remote and automated operation.

Advantages

This actuator offers reliable switching with overload and short-circuit protection. Its compact flush-mount design saves space and fits standard DIN boxes. The integrated push-button input allows local control, while the status LED provides visual feedback. Low standby power consumption (<0.5 W) ensures energy efficiency.

Suitable for

• Switching lighting, heating, or other resistive loads in smart home installations
• Retrofitting existing flush-mounted boxes with smart control
• Integration into Homematic IP automation scenarios

Key specifications

• Wireless Protocol: Homematic IP
• Mounting Type: In-wall (flush-mounted)
• Function: Switching Actuator
• Input Type: 1x Push-button input
• Operating Voltage: 230 V AC, 50 Hz
• Max. Switching Current: 16 A (resistive load)
• Max. Switching Power: 3680 W (resistive load)
• Number of Channels: 1 (Switching)
• Wireless Frequency: 868.0 - 868.6 MHz / 869.4 - 869.65 MHz
• Protection Class: IP20
• Operating Temperature: 0 to 35 °C
• Standby Power Consumption: < 0.5 W
• Overload Protection: Yes
• Short-circuit Protection: Yes
• Compatibility: Homematic IP Access Point, Homematic IP CCU3
• Installation: Standard flush-mounted box (DIN 49073-1)
• Cable Cross-section: 0.75 - 1.5 mm²
• LED Indicator: Yes (Status LED)

Recommendations

For optimal performance, use with a Homematic IP Access Point or CCU3. Ensure proper installation by a qualified electrician. This device is ideal for creating automated lighting or load control in residential and commercial smart home systems.
