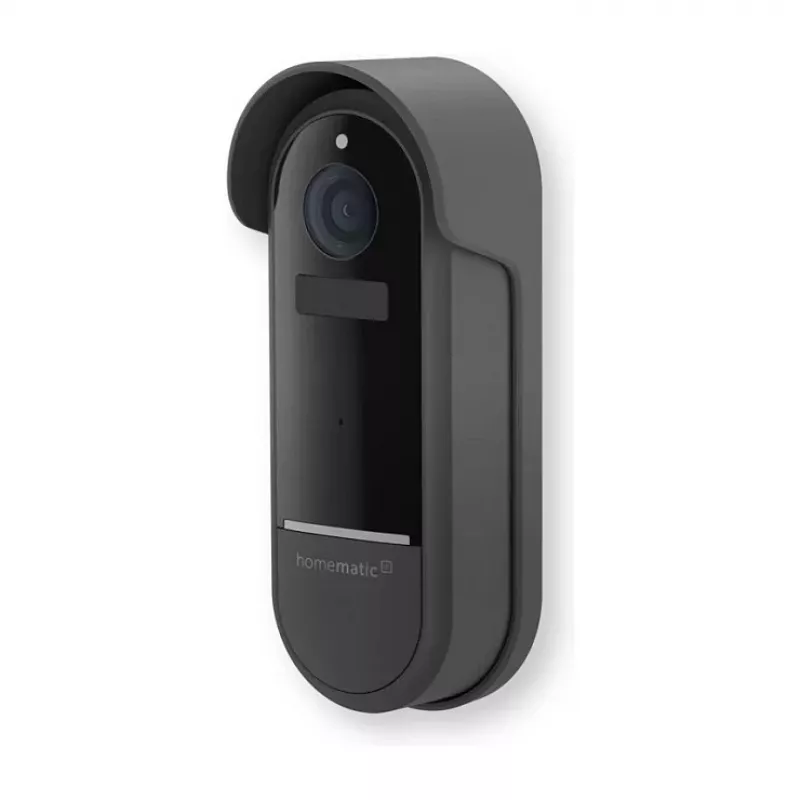

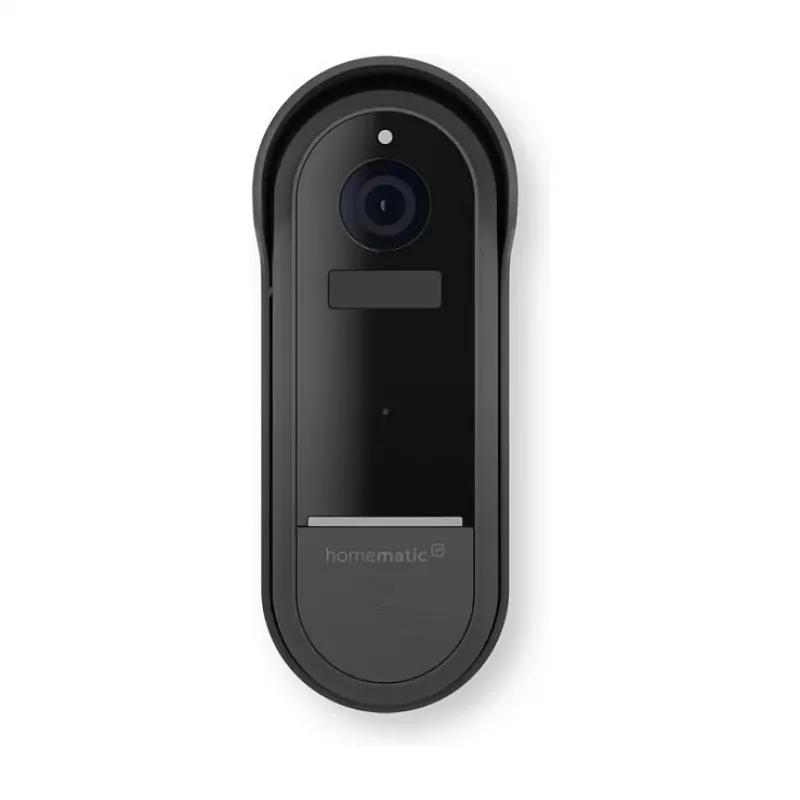

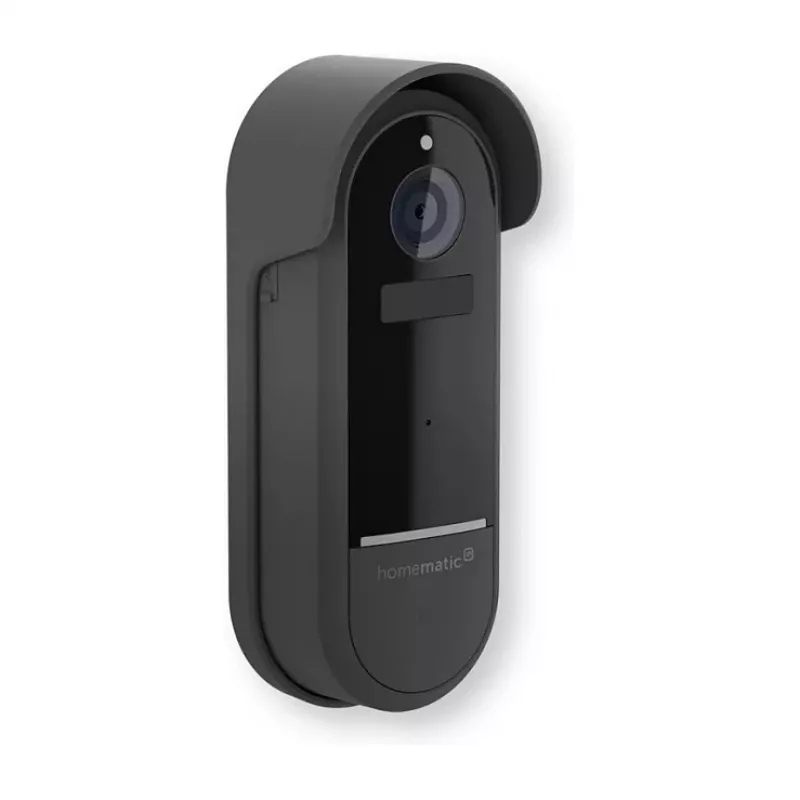

HOMEMATIC IP videocitofono (HmIP-CODB-A) (antracite, 3 MP, Wi-Fi)

See and speak to visitors at your door from anywhere with the HOMEMATIC IP Video Doorbell. This smart doorbell replaces your existing bell and adds a 3-megapixel camera, two-way audio, and motion detection—so you never miss a delivery or guest, even when you're not home.

Who is it for

Homeowners who want to upgrade their entrance with a connected video intercom that integrates into the Homematic IP smart home system. It suits those who prefer a wired doorbell but need remote access via Wi-Fi.

Main features

• 3 MP camera with 2048 x 1536 resolution and 105° horizontal field of view
• Two-way audio with integrated microphone and speaker
• PIR motion detection and infrared night vision
• Connects via 2.4 GHz Wi-Fi and Homematic IP radio (868.3/869.5 MHz)
• Supports existing doorbell button and chime via digital input/output
• Weather-resistant housing (IP44) for outdoor mounting
• Stores recordings locally on microSD card (not included) or in the cloud (subscription required)
• Powered by 8-24 V AC or 8-30 V DC

Specifications

• Colour: Anthracite
• Camera resolution: 3 Megapixel (2048 x 1536)
• Connectivity: Wi-Fi 2.4 GHz, Homematic IP radio protocol
• Power supply: 8-24 V AC / 8-30 V DC
• Ingress protection: IP44
• Operating temperature: -20 to +50 °C
• Mounting type: Surface-mounted
• Night vision: Yes (infrared LEDs)
• Field of view: approx. 105° horizontal, 55° vertical
• Storage: microSD card (not included), cloud (subscription required)
• Smart home integration: Homematic IP
• Digital inputs/outputs: 1x input for existing doorbell button, 1x output for existing chime
• Material: UV-resistant plastic

Tips

For optimal performance, mount the doorbell at a height of about 1.4 metres and ensure a stable 2.4 GHz Wi-Fi signal at the installation location. Use a microSD card for local recording if you prefer not to subscribe to the cloud service.
