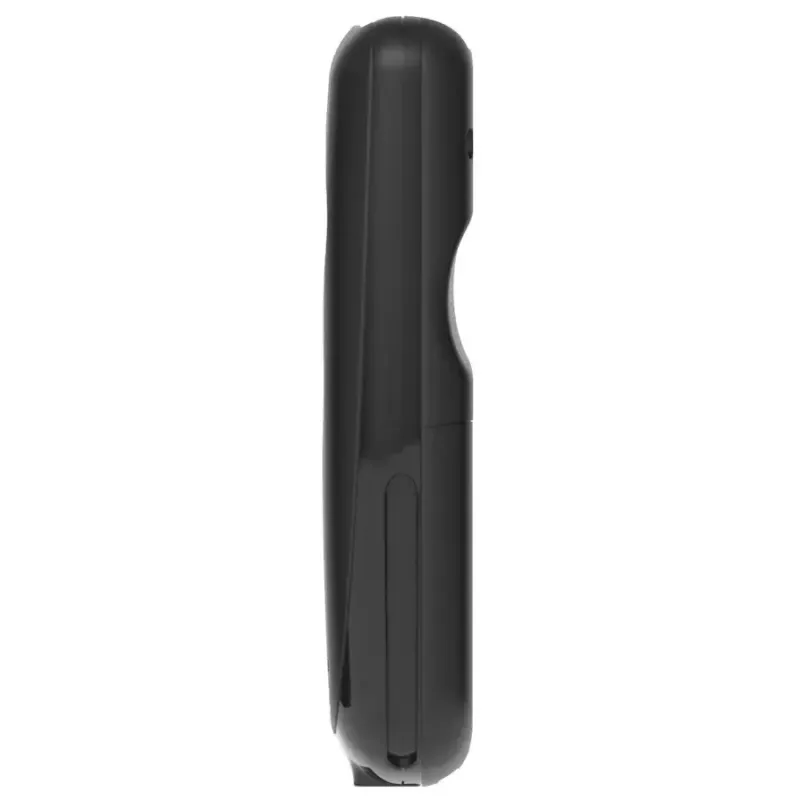

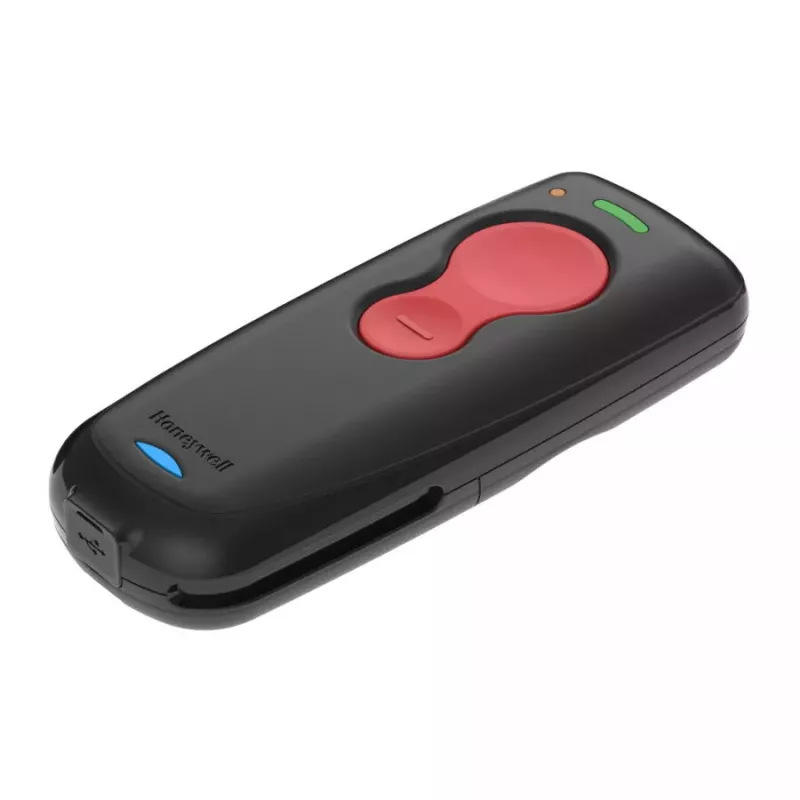

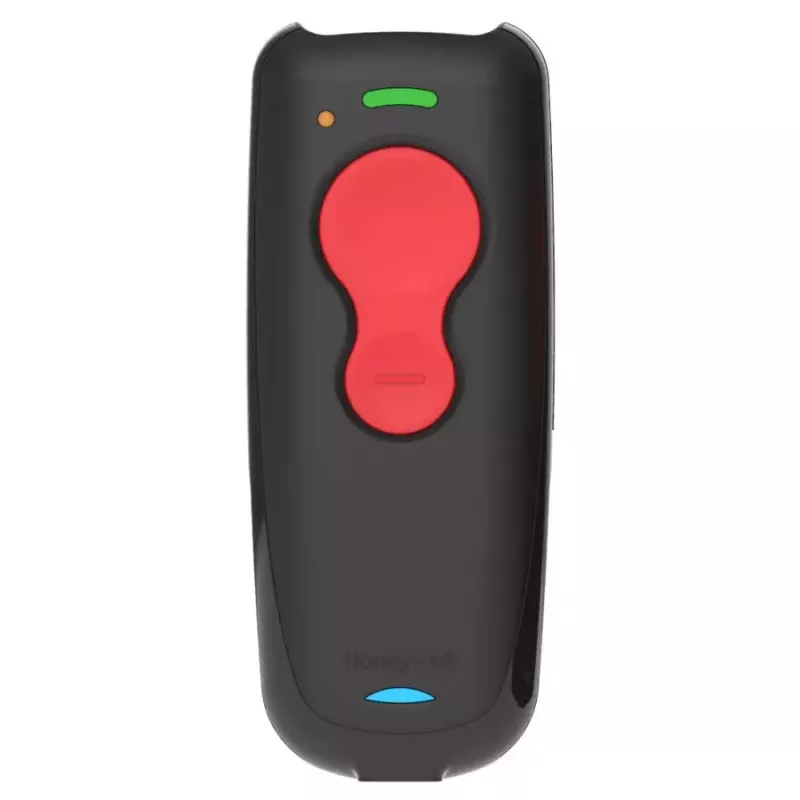

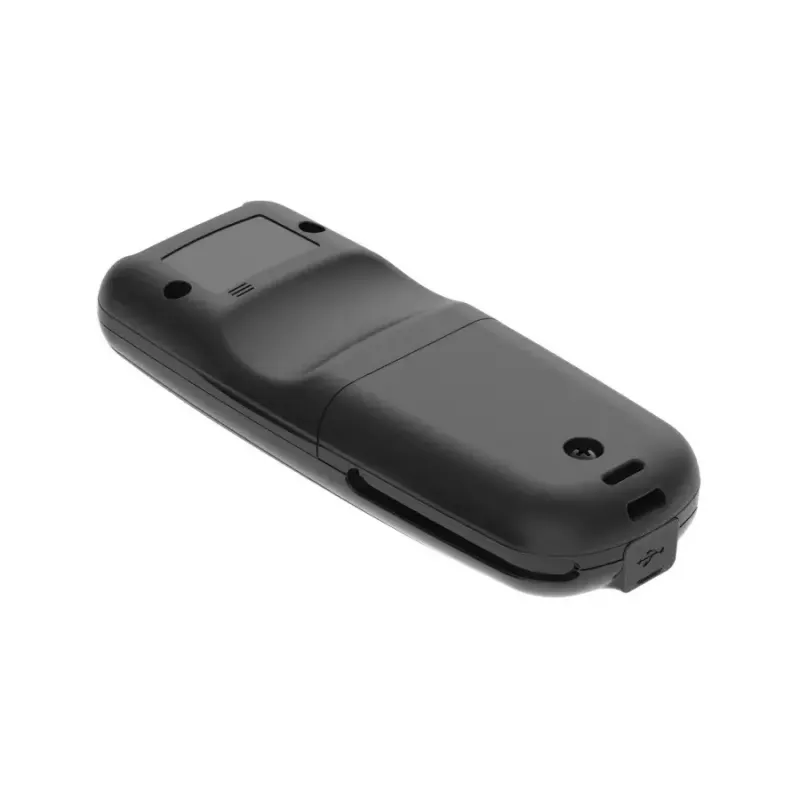

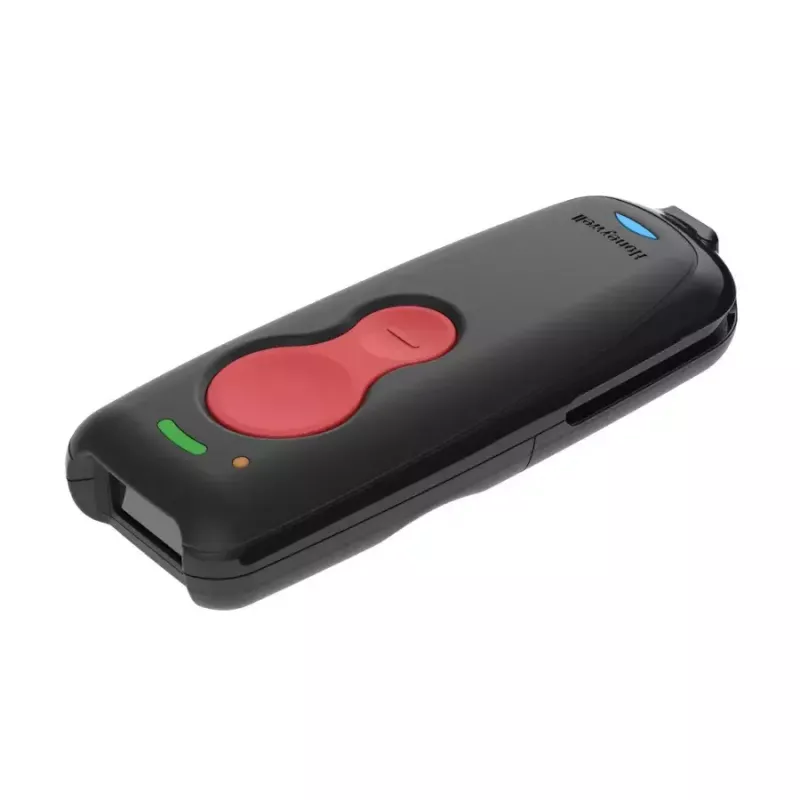

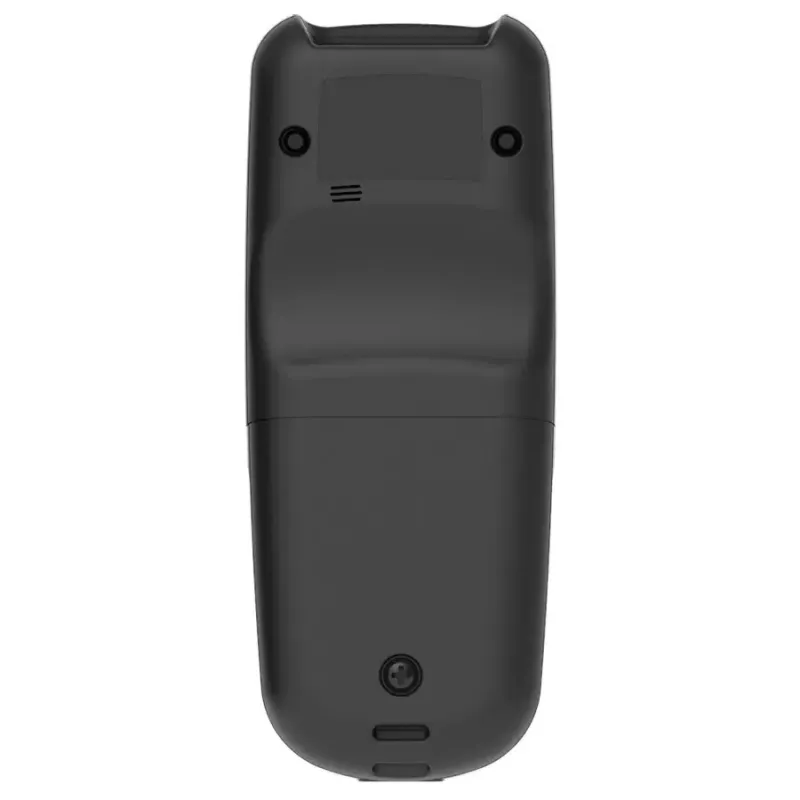

Origin Storage 1602G2D-2USB-OS lettore di codici a barre

The Voyager 1602g wireless scanner is designed for tablet-based retail point-of-sale and field service applications. It combines high-performance area-imaging technology in a compact, pocketable body that supports scanning of a wide range of 1D and 2D barcodes. The device also reads barcodes displayed on smartphone screens, enabling mobile coupons, e-tickets, digital wallets and loyalty cards.

Advantages

The scanner uses the same area-imaging engine as full-size models, ensuring reliable barcode capture. Its contoured design, oversized scan button and light weight provide comfortable handheld use. Bluetooth wireless connectivity allows operation up to 10 m (33 ft) from the host device, and the user-replaceable battery supports over 2,250 scans per charge and is recharged via standard microUSB.

Key specifications

• Imaging technology: area-imaging engine (same as full-size scanners)
• Barcode support: 1D and 2D barcodes
• Mobile screen reading: supports barcodes on smartphone displays
• Connectivity: Bluetooth wireless, range up to 10 m (33 ft)
• Battery: user-replaceable, rated for more than 2,250 scans per charge
• Charging: standard microUSB
• Form factor: compact, pocketable, lightweight

How to use

Pair the Voyager 1602g with a tablet or mobile device via Bluetooth following the device pairing procedure. Align the scanner with the barcode or smartphone screen and press the scan button; the area-imaging engine will capture 1D and 2D codes. Replace the battery when capacity decreases and recharge using a microUSB cable. Maintain the window free of debris for optimal performance.

Recommendations

For reliable daily operation in retail or field service, keep the firmware updated, charge the user-replaceable battery regularly, and store the scanner in a protective pocket when not in use to avoid scratches on the imaging window.
