HP scheda madre Shark Bay SFF

Built around the Intel H81 Express chipset, this HP motherboard delivers the essential foundation for a dependable small-form-factor business PC. With support for 4th Generation Intel Core processors and dual-channel DDR3 memory, it balances performance and efficiency for everyday office workloads.

Overview

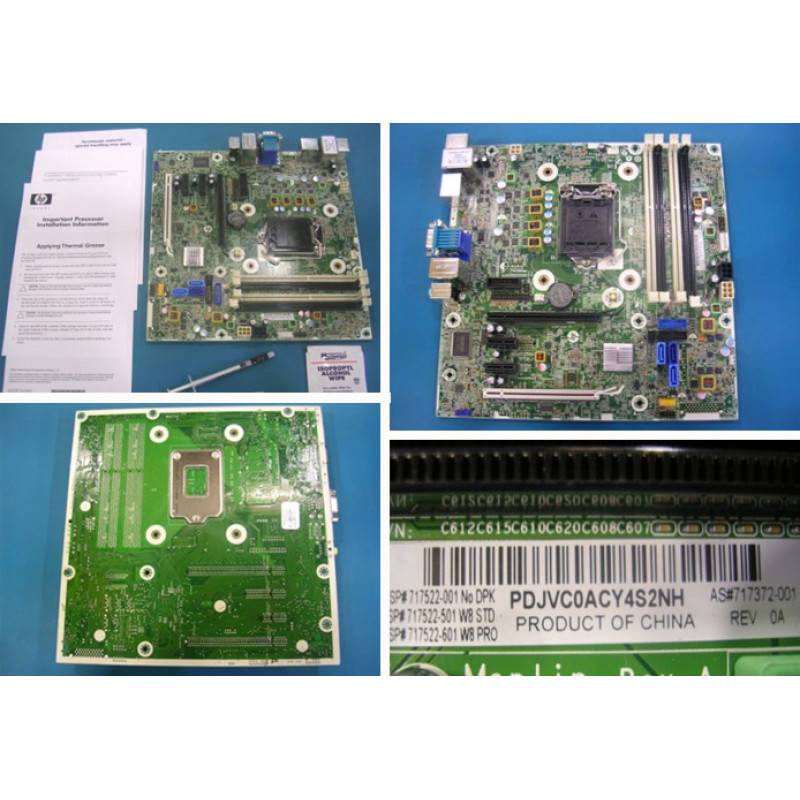

The HP 717522-501 motherboard, also known as the Shark Bay SFF, is engineered for the HP ProDesk 400 G1 Small Form Factor desktop. It features an LGA 1150 socket compatible with Intel Haswell processors, including Core i3, i5, i7, Pentium, and Celeron models. Two DDR3 DIMM slots support up to 16 GB of non-ECC unbuffered memory at 1600 MHz, providing ample capacity for multitasking and business applications.

What stands out

• Intel H81 Express chipset for stable, efficient performance
• Supports 4th Gen Intel Core processors via LGA 1150 socket
• Dual DDR3 slots with up to 16 GB capacity
• Integrated Intel HD Graphics with VGA and DisplayPort outputs
• Gigabit Ethernet and high-definition audio built in
• Proprietary SFF form factor for HP ProDesk 400 G1

Technical details

• Chipset: Intel H81 Express
• CPU Socket: LGA 1150
• Supported CPUs: Intel 4th Gen Core i3/i5/i7, Pentium, Celeron (Haswell)
• Memory: 2 x DDR3 DIMM, max 16 GB, 1600 MHz non-ECC unbuffered
• Expansion: 1 x PCIe x16 (low profile), 3 x PCIe x1 (low profile)
• Storage: 2 x SATA III 6Gb/s, 1 x SATA II 3Gb/s
• Graphics: Intel HD Graphics (requires compatible CPU)
• Audio: Realtek ALC221 High Definition Audio
• LAN: Realtek RTL8151GH-CG Gigabit Ethernet
• Rear I/O: 2 x USB 3.0, 4 x USB 2.0, 1 x VGA, 1 x DisplayPort, 1 x RJ-45, line-in, line-out
• Form Factor: Proprietary SFF (for HP ProDesk 400 G1)

Our verdict

The HP 717522-501 is a reliable, cost-effective motherboard for maintaining or upgrading HP ProDesk 400 G1 SFF systems. Its solid H81 chipset and essential connectivity make it an excellent choice for business environments where stability and compatibility are paramount.
