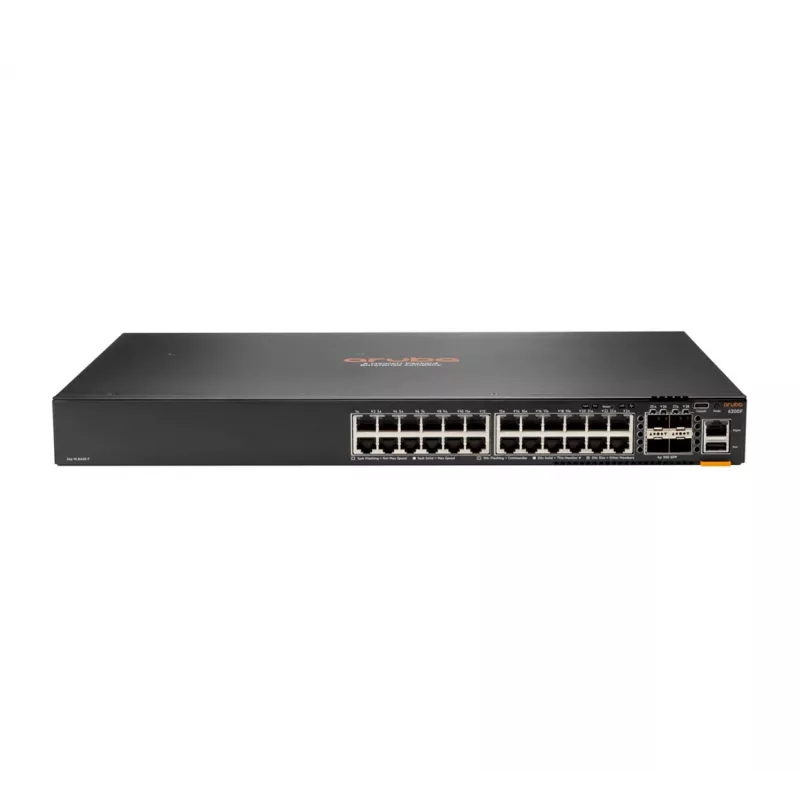

Switch managed Aruba 6200F 24G Class4 PoE 4SFP+ 370W

The Managed Switch Aruba 6200F 24G Class4 PoE 4SFP+ 370W is a managed Layer 3 switch designed for rack-mounted enterprise networks. It provides 24 Gigabit Ethernet RJ-45 ports with PoE Class 4 power delivery and four SFP+ uplink ports supporting 10G connectivity. With a switching capacity of 128 Gbit/s and a large MAC address table, the switch supports typical campus and branch deployments that require reliable traffic segmentation, access control and high-throughput uplinks in a 1U chassis.

Advantages

The Aruba 6200F delivers a combination of Power over Ethernet on every access port, high switching capacity and 10G-capable uplinks to accommodate bandwidth-hungry applications. As a managed Layer 3 device it supports advanced networking standards for redundancy, VLAN segmentation and security, enabling centralized configuration and monitoring. The 1U rack form factor and moderate weight make it suitable for standard network cabinets while the PoE budget supports a range of powered devices without separate power injectors.

Suitable for

• Small to medium enterprise access layer for office and campus environments
• Powering IP phones, wireless access points and PoE cameras
• Aggregation of access switches with 10G uplinks to core infrastructure
• Environments requiring VLAN segmentation, access control and Layer 3 routing

Key specifications

• Ports: 24x Gigabit Ethernet (10/100/1000) RJ-45 with PoE Class 4
• Uplinks: 4x SFP+ ports with 10G support
• Switching capacity: 128 Gbit/s
• MAC address table size: 32,768 entries
• Form factor: 1U rack-mountable chassis
• Weight: 4.9 kg
• Supported networking standards: comprehensive IEEE 802.1 and 802.3 family (L2/L3 features, QoS, link aggregation, port security)
• PoE power: Class 4 per port with a total power budget of 370W

How to use

Install the Aruba 6200F into a standard 19-inch rack using the supplied mounting brackets and secure appropriate power and cooling for the rack. Connect access devices to the Gigabit PoE ports and use the SFP+ ports for uplink connections to aggregation or core switches. Use the web-based management interface, CLI, or network management platform to configure VLANs, Layer 3 interfaces, PoE profiles, QoS policies and security settings. Monitor port utilization, PoE consumption and switch health regularly to maintain performance.

Recommendations

Allocate PoE budget per port according to connected device requirements and plan uplink bandwidth to avoid saturation. Keep firmware updated and apply redundancy features such as link aggregation and spanning tree to improve availability. For optimal thermal performance, maintain recommended airflow in the rack and avoid placing the unit in confined spaces without ventilation.
