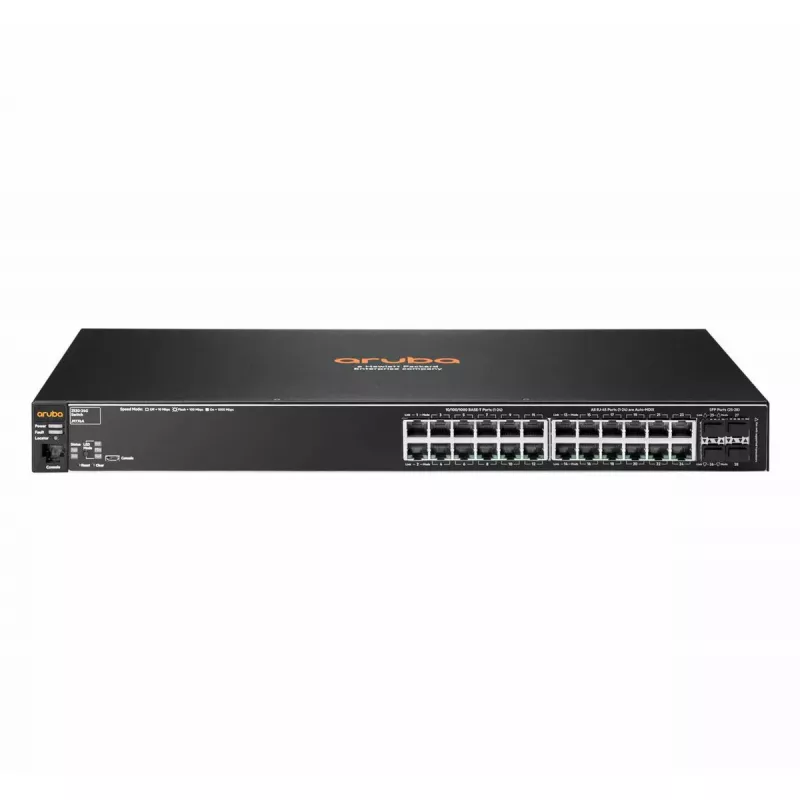

Switch managed L2 Gigabit Ethernet Hewlett Packard Enterprise Aruba 2530-24G

Aruba 2530-24G Switch is a fully managed Layer 2 access switch designed for enterprise edge, branch office and SMB deployments. It offers optional PoE+, optional 10GbE uplinks, enhanced access security, traffic prioritization, sFlow, IPv6 host support and power-saving features such as Energy Efficient Ethernet. The switch integrates with Aruba management tools like ClearPass Policy Manager and AirWave Network Management to provide consistent wired and wireless user experience and simplified deployment.

Advantages

The Aruba 2530 series delivers reliable and secure access with choices of 8-, 24- and 48-port models in Gigabit or Fast Ethernet variants, with optional PoE+ and optional 10GbE uplinks. Models include fanless options and Energy Efficient Ethernet (IEEE 802.3az) to reduce power consumption; LEDs and port low power mode can be disabled to save additional energy. The switches provide unified management and automatic optimal configuration when connected to Aruba access points, handling PoE priority, VLAN configuration and rogue AP containment.

Key specifications

• Model: Aruba 2530-24G
• Switch type: Fully managed Layer 2
• Ports: 24 Gigabit Ethernet ports
• PoE: Optional PoE+ support (model dependent)
• Uplinks: Optional 10GbE uplinks (model dependent)
• Security: 802.1X, MAC authentication, Web authentication, ACLs, DHCP/IPv6 protection, Dynamic ARP protection
• QoS: IEEE 802.1p with eight priority levels, WDRR and strict priority queuing
• Monitoring: sFlow, RMON
• Management: Web GUI, CLI, SNMP, console and micro USB ports; integration with ClearPass and AirWave
• Deployment: Wall, desktop and rack mounting; TR-069 supported for zero-touch provisioning
• Power and cooling: Fanless and variable-speed fan models available; Energy Efficient Ethernet (IEEE 802.3az)

How to use

Install the Aruba 2530-24G on a rack, wall or desktop according to site requirements, connect uplink and access ports, and power the device. Use the Web GUI, CLI or SNMP to perform initial configuration: set VLANs, enable authentication methods (802.1X, MAC or Web), configure QoS policies and apply ACLs. If using Aruba access points and ClearPass or AirWave, join the switch to the management platform to enable unified policies, automatic PoE priority and VLAN assignment. For deployments requiring minimal manual setup, enable TR-069 for zero-touch provisioning on supported networks.

Recommendations

Choose the specific Aruba 2530 model that matches port count, PoE+ requirements and uplink speed. For power-sensitive or quiet environments, select a fanless model and enable Energy Efficient Ethernet and port low power modes. Integrate the switch with ClearPass Policy Manager or AirWave for consistent wired/wireless policy enforcement and simplified monitoring.
