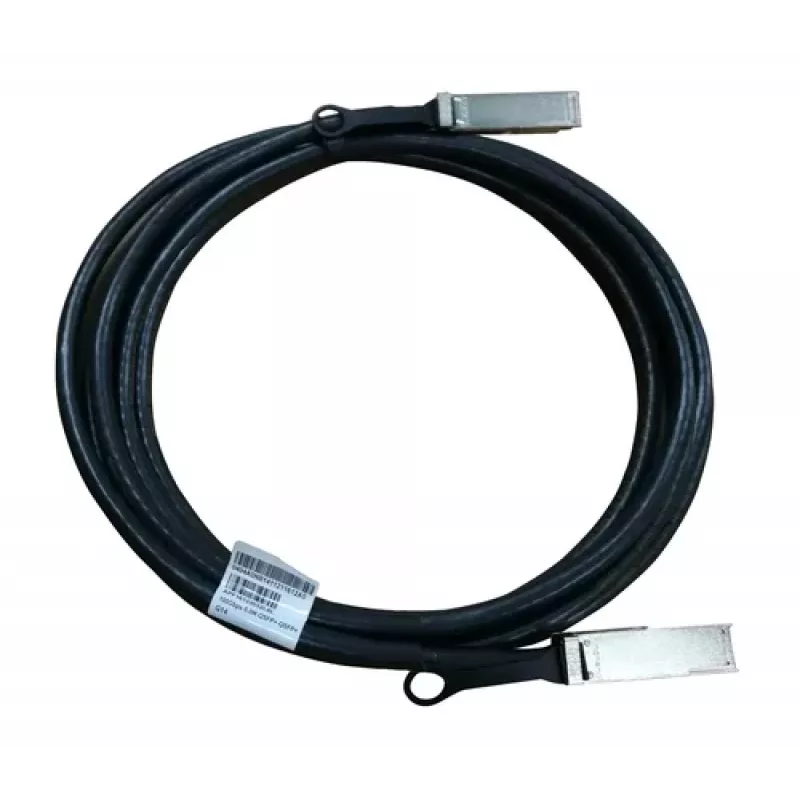

HPE X240 cavo in rame Direct Attach 100GbE QSFP28 maschio-maschio 5m

The HPE X240 Direct Attach Copper Cable is a high-performance, passive copper cable designed for 100 Gigabit Ethernet connectivity in data center environments. It provides a cost-effective, low-power solution for short-range interconnects between switches, servers, and storage devices.

Advantages

This cable offers ultra-low power consumption due to its passive design, eliminating the need for external power. It supports hot-swappable QSFP28 connectors for easy installation and maintenance. The 5-meter length provides flexibility for rack-to-rack and server-to-switch connections.

Suitable for

• Data center interconnects
• Rack-to-rack cabling
• Server-to-switch connections
• HPE FlexFabric and Aruba networks

Key specifications

• Cable Type: Direct Attach Copper (DAC)
• Data Transfer Rate: 100 Gigabit Ethernet (100GbE)
• Connector Type: QSFP28 Male to QSFP28 Male
• Cable Length: 5 meters (16.4 feet)
• Cable Technology: Passive Copper
• Ethernet Standard: 100GBASE-CR4
• Impedance: 100 Ohm
• Wire Gauge: 26 AWG
• Jacket Material: PVC
• Operating Temperature: 0 to 70°C
• Compliance: RoHS, CE, FCC, SFF-8665 (QSFP28 MSA)

Recommendations

For optimal performance, use this cable with compatible HPE switches and servers. Ensure proper handling to avoid damage to the connectors.
