HT Instruments HT-MK4 set adattatore di misura trifase 32A in valigia da trasporto 2009870

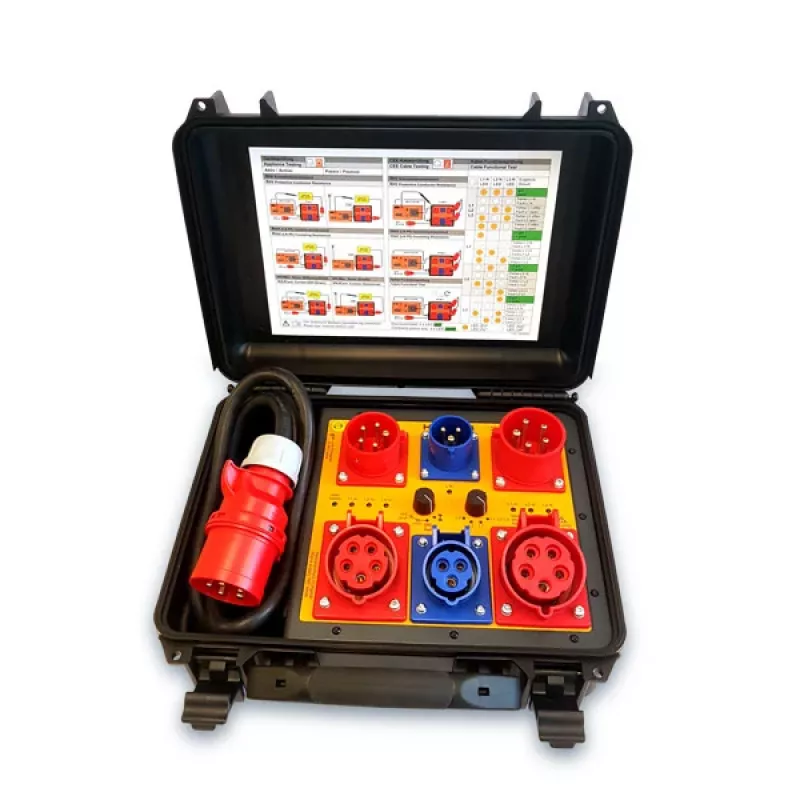

3-phase CEE measuring adapter kit for active and passive testing of industrial electrical installations, rated at 32 A and 400 V AC. The HT-MK4 provides safe measurement connections via 4 mm safety banana sockets for L1, L2, L3, N, and PE, enabling connection of multifunction testers to live or de-energized circuits.

Advantages

Compact adapter with pass-through CEE 32A 5-pin plug and socket allows measurements without interrupting the supply. High-impact plastic housing and robust carrying case protect the adapter and included measurement accessories during transport and field use.

Suitable for

• Testing of industrial electrical installations
• Machinery and distribution board verification
• Use with HT Instruments multifunction testers (MACROTEST, GSC, COMBI series) and compatible equipment

Key specifications

• Adapter type: 3-phase CEE measuring adapter kit
• Current rating: 32 A
• Voltage rating: 400 V AC
• Number of phases: 3-phase + Neutral + Earth (5-pin)
• Input connector: CEE 32A 5-pin plug
• Output connector (pass-through): CEE 32A 5-pin socket
• Measurement connections: 5x 4mm safety banana sockets (L1, L2, L3, N, PE)
• Testing modes: Active (live) and passive (de-energized)
• Frequency range: 50/60 Hz
• Material: High-impact plastic housing, durable plastic case

Recommendations

Ideal for electricians and maintenance technicians who need safe, reliable measurement access points on 3-phase CEE circuits during installation testing and troubleshooting.
