HT Instruments TL-50MKT prolunga cavo di misura terra 50 m su avvolgicavo, verde 2009690

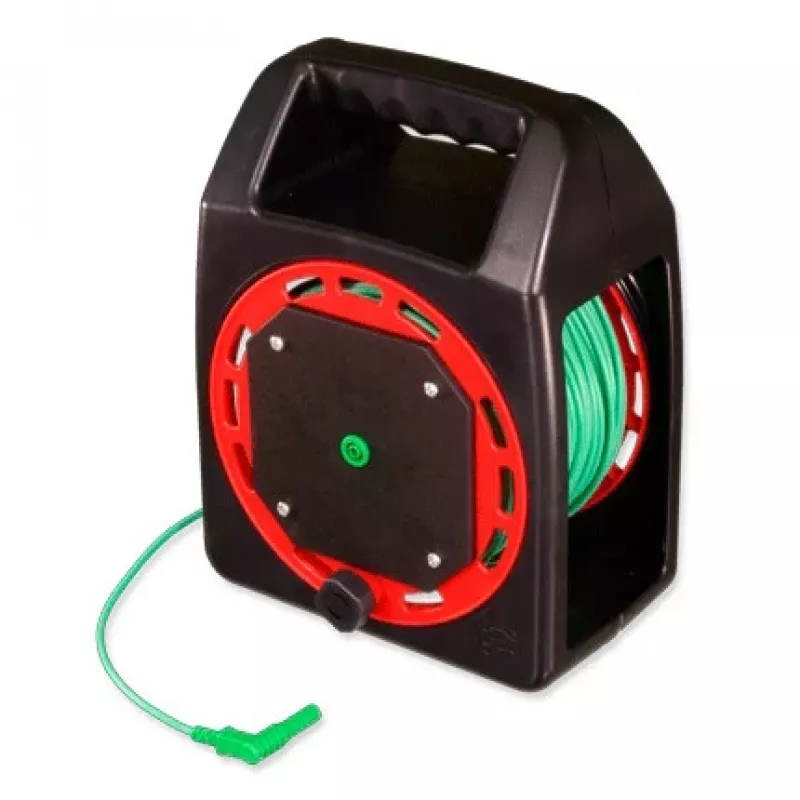

The TL-50MKT extends the reach of HT Instruments earth resistance testers by 50 metres, with the cable stored on a manual reel that keeps the lead tangle-free between measurements. The green PVC insulation is flexible enough to lay out across uneven ground, while the high-purity copper conductor keeps resistance low so the extra length does not distort readings.

Highlights

• 50 m extension lead for earth resistance testing
• 4 mm safety banana plug to spade terminal
• High-purity copper conductor, flexible PVC insulation
• Manual cable reel for tidy storage and transport
• Compatible with GEO416, GEO417, GEO418, GEO419 and MACROTEST G3

In daily use

The reel pays out smoothly when you need to reach a distant auxiliary earth spike, and the spade terminal attaches directly to the rod. After the test, winding the cable back onto the reel takes seconds, so the lead is ready for the next job. The green jacket is easy to spot on site, reducing the chance of leaving the lead behind.

Full specifications

• Cable length: 50 m
• Cable colour: Green
• Connector type (tester end): 4 mm safety banana plug
• Connector type (auxiliary rod end): Spade terminal
• Conductor material: High-purity copper
• Insulation material: Flexible PVC
• Number of conductors: 1
• Reel type: Manual cable reel
• Reel material: Durable plastic
• Compatibility: HT Instruments earth resistance testers (GEO416, GEO417, GEO418, GEO419, MACROTEST G3)
• Safety rating: CAT III 1000V / CAT IV 600V (insulation)
• Operating temperature range: -10°C to +50°C
• Storage temperature range: -20°C to +70°C
• Cable diameter: Approx. 4 mm

Final note

The TL-50MKT is a practical extension for earth resistance measurements, combining a long reach with a reel that keeps the cable organised.
