Hub di interfacce TP-Link UH9120C USB 3.2 Gen 1 (3.1 Gen 1) Type-C 5000 Mbit/s

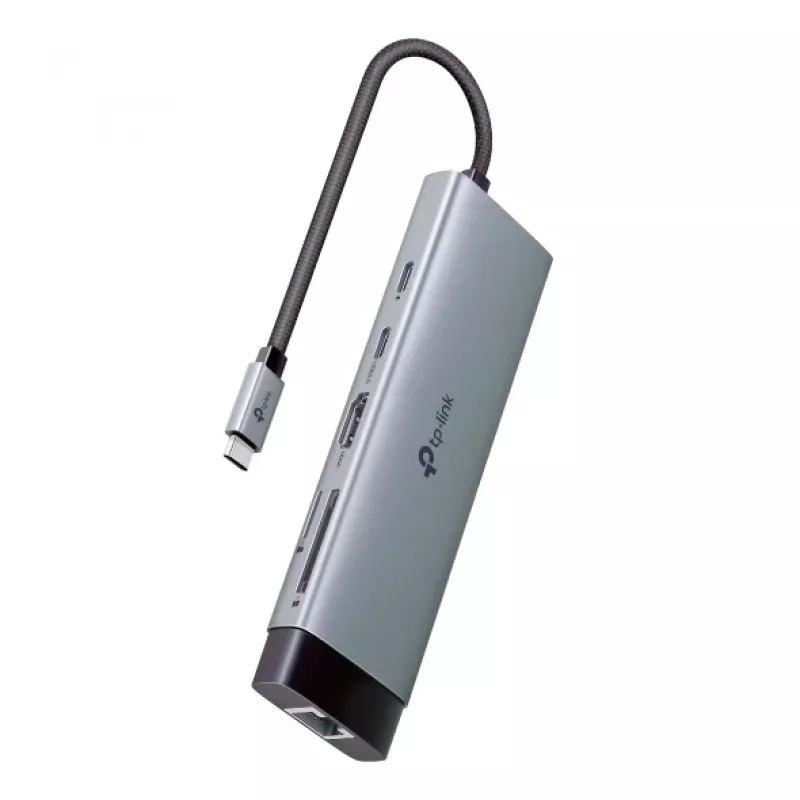

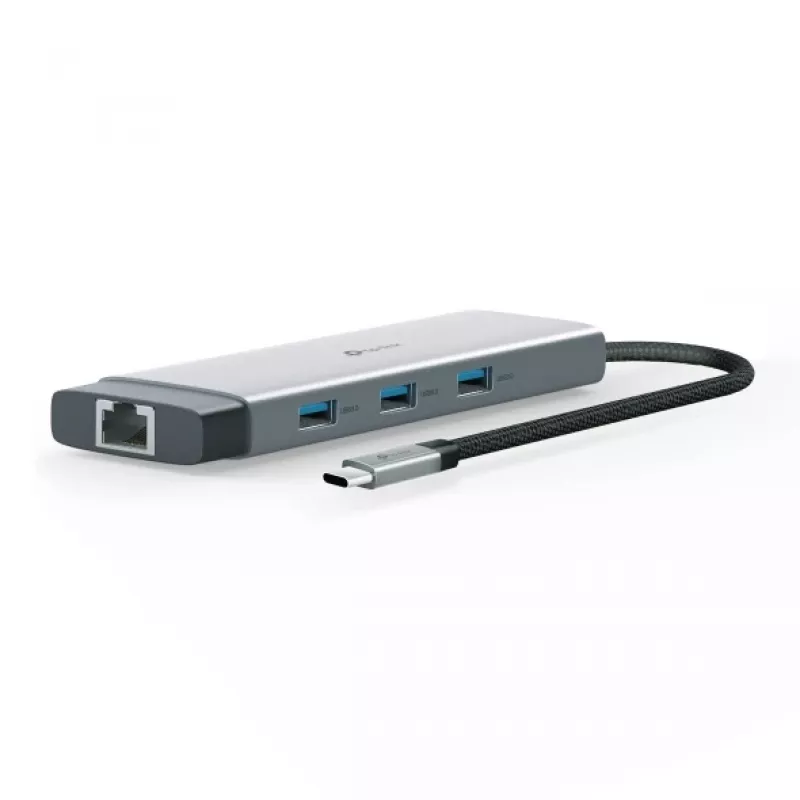

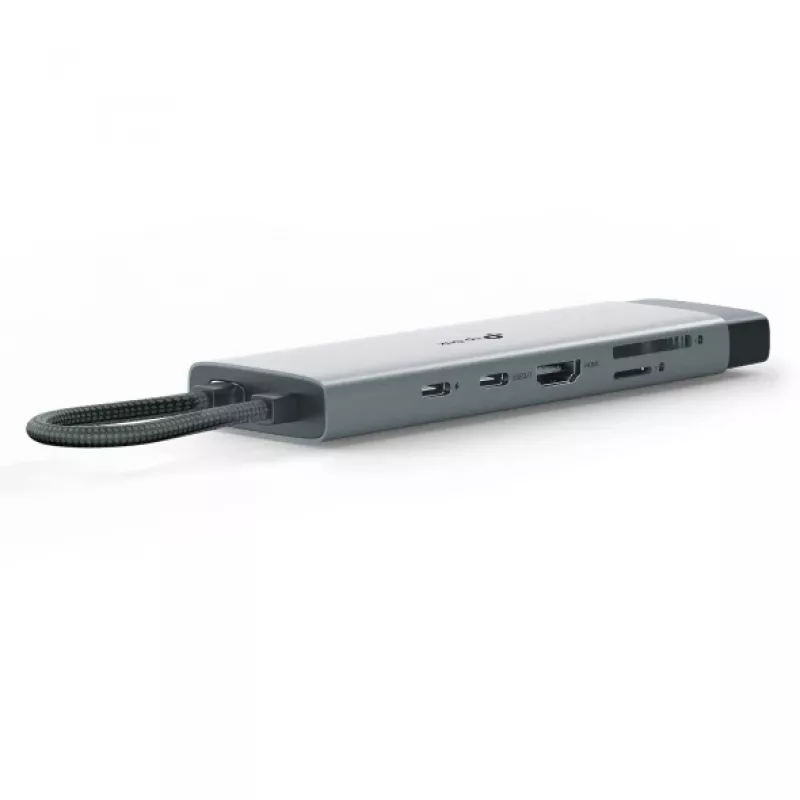

The TP-Link UH9120C interface hub is a compact USB-C docking solution with USB 3.2 Gen 1 Type-C connectivity and a maximum data rate of 5000 Mbit/s. Its aluminum-alloy housing and braided cable offer increased durability, while the self-storing connector protects the port and improves portability. The hub includes HDMI, RJ-45 (Ethernet), USB Type-A and memory card support for MicroSD and SD, enabling multiple device connections in a small footprint (140.2 × 43 × 14.3 mm).

Advantages

The UH9120C provides a stable USB 3.2 Gen 1 connection with backward-compatible devices and delivers high-speed data transfer up to 5000 Mbit/s. The driver-free plug & play operation supports a wide range of operating systems including Windows, macOS, Linux, iPadOS, iOS, Android and Chrome OS. A durable aluminum alloy case and braided cable extend product lifetime, and the self-storing connector shields the port during transport.

Suitable for

• Connecting external displays via HDMI
• Wired network access using the RJ-45 Ethernet port
• Attaching USB peripherals through the Type-A port
• Reading MicroSD and SD memory cards
• Expanding ports on laptops and tablets with USB-C

Key specifications

• Interface: USB 3.2 Gen 1 Type-C
• Maximum data transfer rate: 5000 Mbit/s
• Ports included: 1 × HDMI, 1 × RJ-45 (Ethernet), 1 × USB 3.2 Gen 1 Type-A
• Memory card support: MicroSD, SD
• Dimensions: 140.2 mm × 43 mm × 14.3 mm
• Housing: Aluminum alloy; braided cable

How to use

Connect the UH9120C hub to a host device using the integrated USB-C connector. Plug external peripherals such as an HDMI display, Ethernet cable, USB Type-A device or memory card into the corresponding ports. The hub is driver-free on supported systems; once connected it should be recognized automatically. For HDMI displays, select the appropriate input on the monitor or TV. For wired network access, configure network settings on the host as required.

Recommendations

Use the self-storing connector to protect the port when transporting the hub. Ensure your host device supports USB-C data and video output if you require HDMI or Ethernet functionality. Avoid exposing the hub to liquids or extreme temperatures to maintain long-term reliability.
