Hub USB-C 10-in-1 D-Link DUP-A01 — host USB 3.2 Gen 1 Type-C, Gigabit Ethernet, SD/MicroSD, HDMI fino a 3860x2160@60Hz

The D-Link 10-in-1 USB-C Hub DUP-A01 is a compact, bus-powered docking accessory that expands a single USB-C host port into ten functional connections. It provides a USB 3.2 Gen 1 (Type-C) host interface and combines wired networking, multiple high-speed USB ports, dual HDMI display outputs, and SD/microSD card access in a lightweight white enclosure. The hub is intended for laptops and tablets to add external displays, a stable Ethernet link, file transfer options and card reading without additional adapters.

Advantages

The hub delivers multiple interfaces in a single, travel-friendly package allowing simultaneous use of networking, display, storage and peripherals. High-speed USB 3.2 Gen 1 ports enable fast data transfers for external drives and accessories while the Gigabit Ethernet port provides reliable wired connectivity where Wi‑Fi is insufficient. Dual HDMI outputs support high-resolution displays and the integrated SD and microSD slots simplify media workflows. The device is bus-powered via the USB-C host and available in a lightweight design for easy transport.

Suitable for

• Connecting laptops or tablets to wired networks for stable internet or file transfers
• Extending desktop space with one or two external HDMI displays up to 3840×2160 @ 60 Hz
• Attaching external USB storage, peripherals and fast data-syncing via USB 3.2 Gen 1 ports
• Importing photos and videos directly from SD or microSD memory cards
• Working on the move where multiple connections are required but port availability is limited

Key specifications

• Host interface: USB 3.2 Gen 1 (Type-C)
• Total ports: 10
• USB ports: multiple USB Type-C and USB Type-A using USB 3.2 Gen 1 signaling (high-speed data transfer)
• Video outputs: 2 × HDMI supporting up to 3840×2160 @ 60 Hz
• Network: Gigabit Ethernet (10/100/1000 Mbit/s)
• Card reader: SD and microSD slots for direct media access
• Power: bus-powered via USB-C with Power Delivery pass-through support
• Weight: 0.0985 kg
• Colour: White

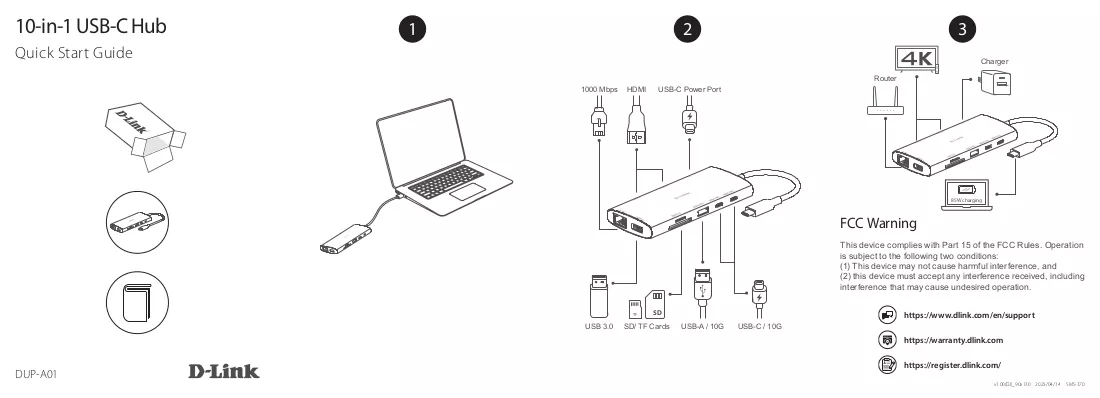

How to use

Connect the hub to a compatible host device using the USB-C host interface. Attach displays to the HDMI outputs, plug wired network cable into the Ethernet port and connect USB peripherals or storage devices to the available USB Type-A and Type-C ports. Insert SD or microSD cards into the respective slots to access media files. When using pass-through power delivery, connect a USB-C power adapter to the hub’s power input to supply the host and connected devices.

Recommendations

Use a compatible USB-C power adapter when charging the host through the hub to ensure adequate power delivery. For dual 4K display setups, verify the host device supports multiple external displays over USB-C. Avoid forcing memory cards into slots and use recommended cables to maintain optimal signal quality.
