Hub USB EXSYS EX-11295HMS USB 3.2 Gen 2 Type-B 10000 Mbit/s nero

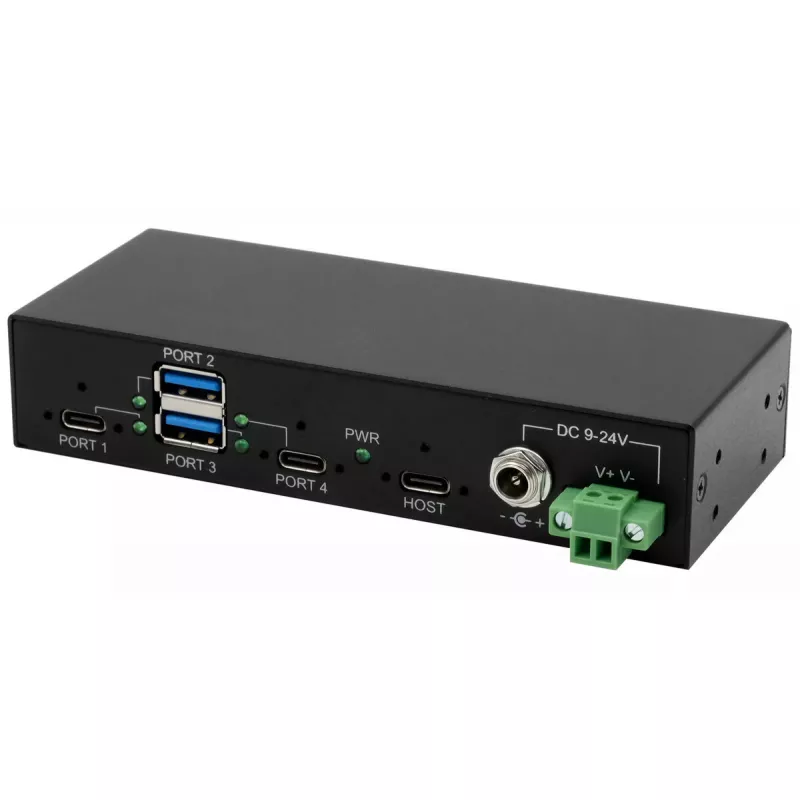

The EXSYS EX-11295HMS is a robust industrial-grade USB 3.2 Gen 2x1 hub in a metal housing, designed for reliable high-speed connectivity. It provides two USB-A ports and two USB-C ports for end devices, plus one USB-C port for PC connection (Type-B host interface). The hub supports SuperSpeed USB 10Gbps data transfer and can be mounted on a wall or on a DIN carrier rail. Power is supplied by the included external plug-in power supply or by an optional DIN-rail power supply; bus power is not supported.

Advantages

The metal casing and industrial design ensure durability and stable operation in demanding environments. USB 3.2 Gen 2 (10Gbps) provides high transfer speeds for data-intensive tasks. Each downstream port can deliver up to 2.5 A when the hub is powered by an external supply, enabling charging of smartphones, tablets and other USB devices. Flexible mounting options (wall or DIN rail) simplify integration into workstations or control cabinets.

Suitable for

• Workstations and offices that require multiple high-speed USB connections
• Industrial control cabinets and automation systems with DIN-rail mounting
• Charging and data transfer for smartphones, tablets and other USB devices
• Environments needing a durable metal-housed USB hub

Key specifications

• Model: EXSYS EX-11295HMS
• Host interface: USB 3.2 Gen 2 (Type-B)
• Downstream ports: 2× USB-A, 2× USB-C
• Upstream port: 1× USB-C (to PC)
• Maximum data rate: 10 Gbps (SuperSpeed USB 10Gbps)
• Maximum current per port (with external power): up to 2.5 A

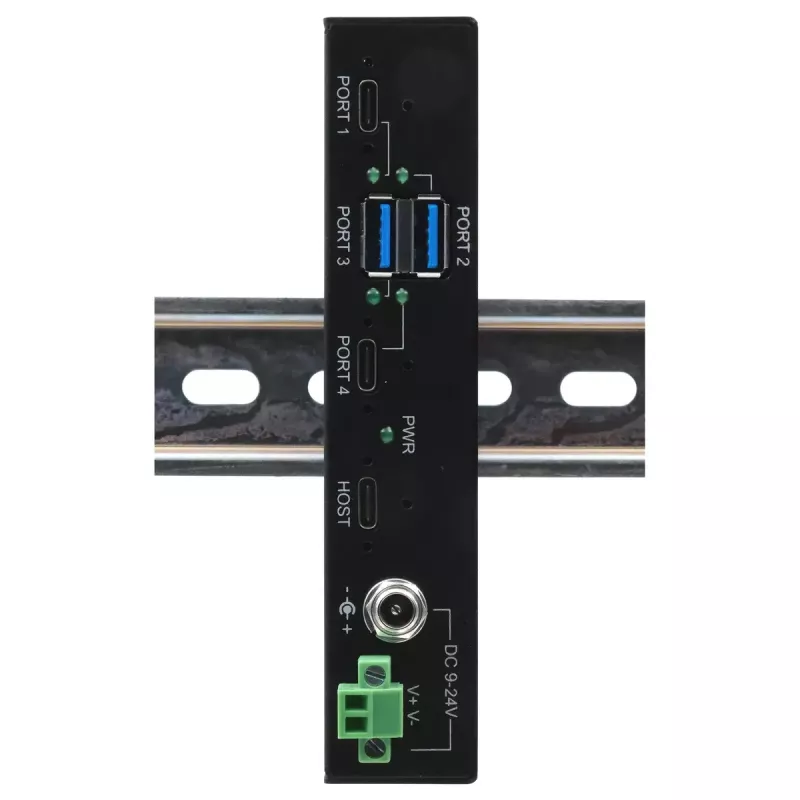

• Mounting: wall mounting or DIN carrier rail
• Power: external plug-in power supply included; optional DIN-rail power supply supported
• Color: Black

How to use

Mount the hub on a wall or install it on a DIN carrier rail using the provided fittings. Connect the hub to the PC using the Type-B USB upstream port (USB-C connector to host as described in the product data). Plug the included external power supply into the hub and to mains power to enable self-powered operation; if a DIN-rail power supply is used, connect it according to the power supply instructions. Connect end devices to the two USB-A or two USB-C downstream ports for data transfer and charging. Bus power is not supported, so the hub requires the external power source for full functionality and per-port charging.

Recommendations

For reliable 10Gbps transfers and full charging capability (up to 2.5 A per port), always use the included external power supply or a compatible DIN-rail power supply. Ensure correct mounting and adequate ventilation around the metal housing to maintain stable operation.
