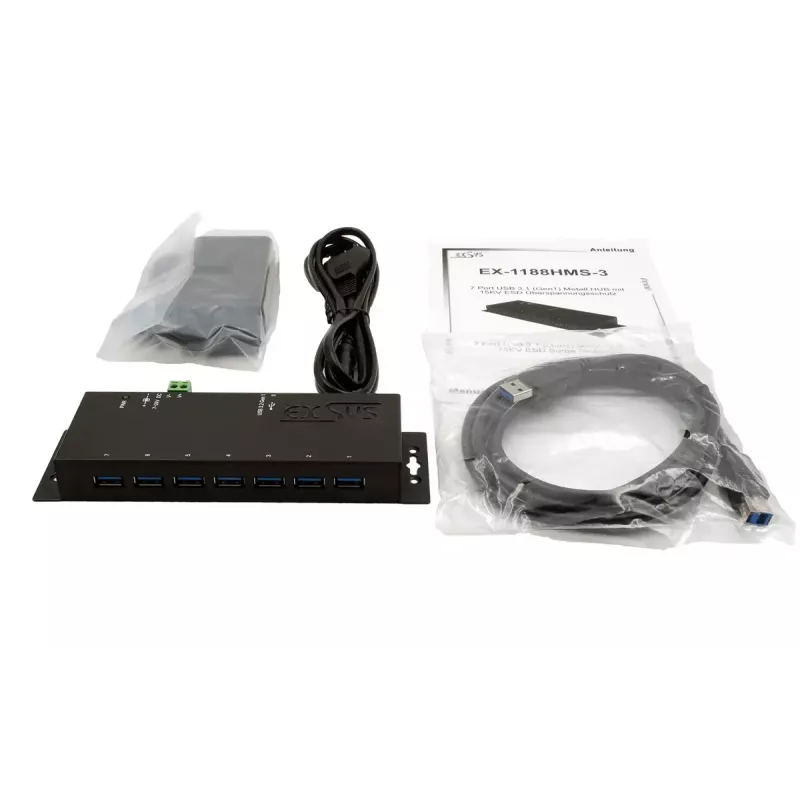

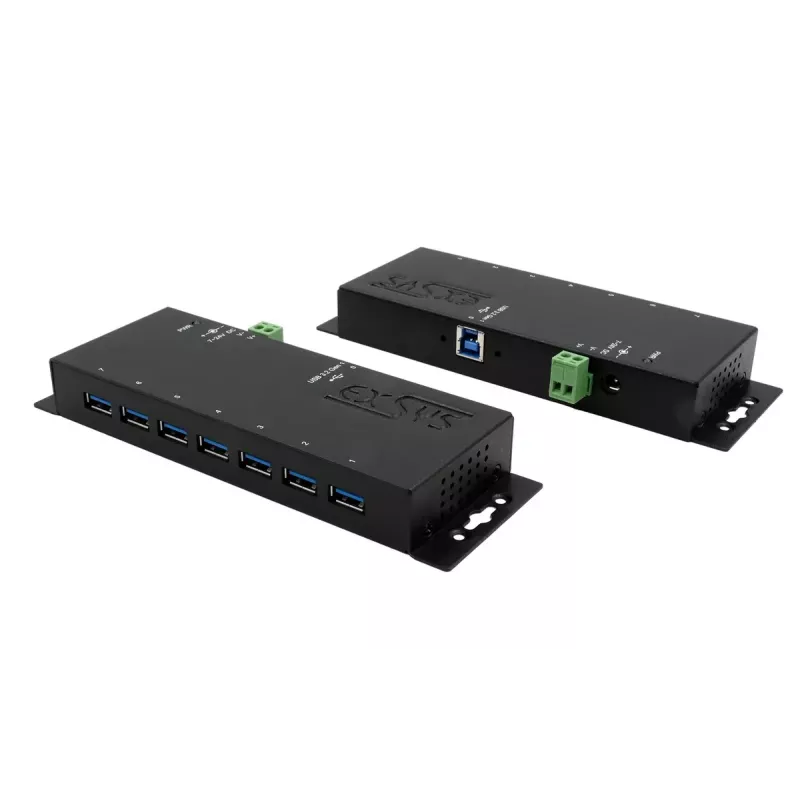

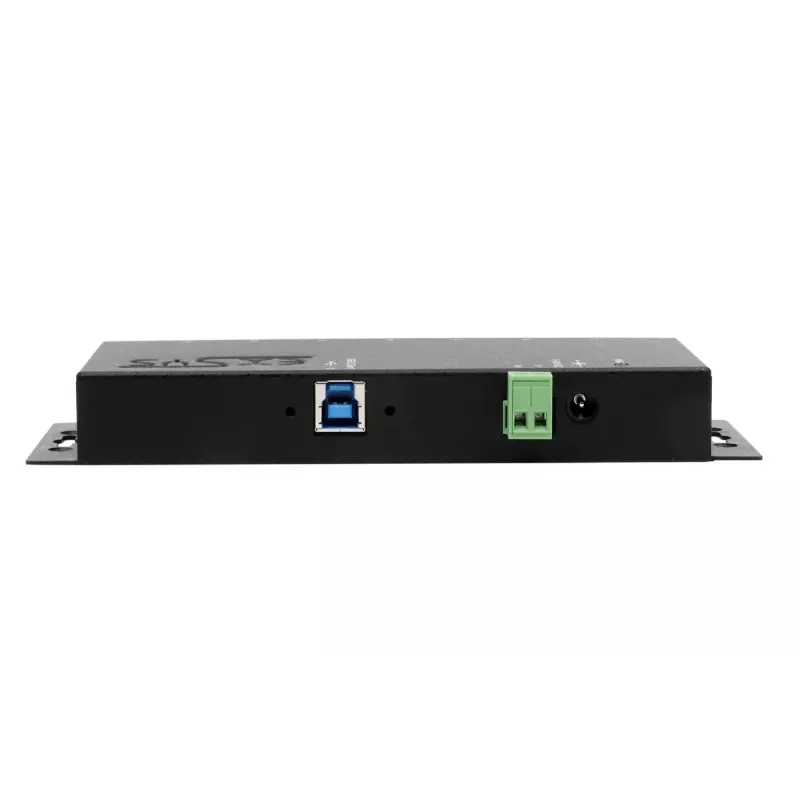

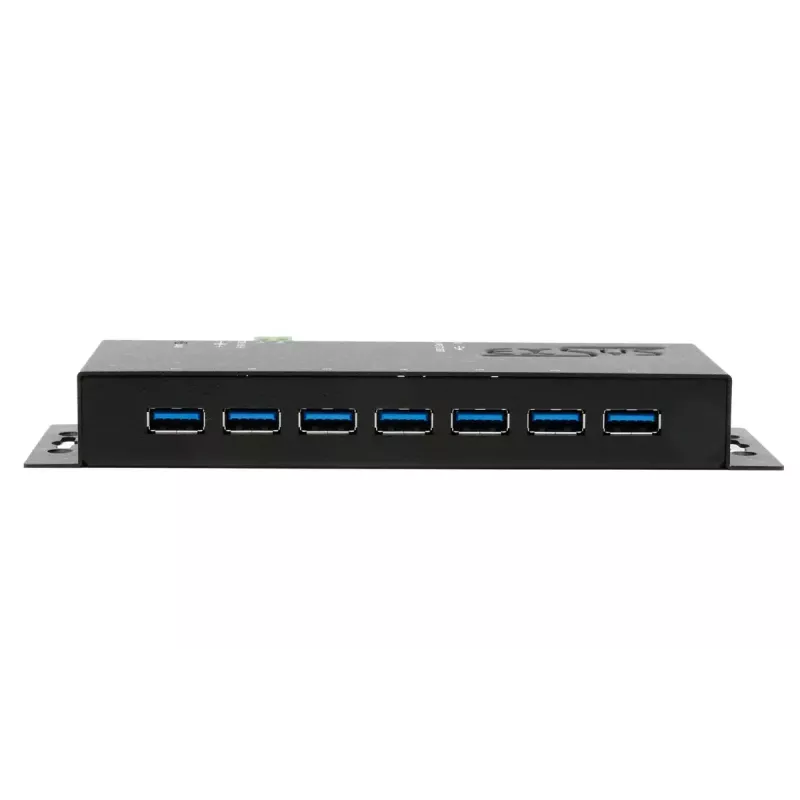

Hub USB EXSYS EX-1188HMS-3

The EXSYS EX-1188HMS-3 is a 7-port USB 3.2 Gen1 hub with a Type-B host interface and seven Type-A downstream ports. It supports data transfer rates up to 5000 Mbit/s and is powered by a 12V/3A input. Each downstream port includes 15 kV ESD surge protection. The hub is finished in black and includes LED power indicators; its housing allows mounting on a wall, under a table or inside a 19-inch cabinet (optional mounting kit EX-6099).

Advantages

The EX-1188HMS-3 expands a single USB 3.2 Gen1 port into seven high-speed Type-A ports while providing per-port 15 kV ESD protection. The device supports full USB 3.2 Gen1 data rates (up to 5 Gbit/s) and is externally powered (12V/3A) to ensure stable operation when multiple peripherals are connected. Its rugged housing and multiple mounting options make it suitable for constrained spaces and rack installations.

Suitable for

• Connecting multiple external USB peripherals to a notebook, desktop or server
• Office workstations requiring additional USB ports
• Industrial and automation systems needing protected USB expansion
• Installation in 19-inch cabinets, under desks or on walls

Key specifications

• Model: EXSYS EX-1188HMS-3
• Ports quantity: 7 downstream Type-A ports
• Host interface: USB 3.2 Gen1 (Type-B)
• Data rate: up to 5000 Mbit/s (USB 3.2 Gen1)
• Power input: 12V, 3A (external power required)
• ESD protection: 15 kV per output
• Colour: Black

How to use

Connect the hub's Type-B host port to the USB port of your notebook, desktop or server. Attach the external 12V/3A power adapter to provide sufficient power for multiple devices. Plug USB peripherals into the Type-A downstream ports; the LEDs indicate power status. If required, mount the hub on a wall, under a desk or inside a 19-inch cabinet using the optional EX-6099 kit for rack installation.

Recommendations

For reliable performance when multiple high-current devices (such as external drives) are connected, always use the recommended 12V/3A power adapter. Avoid exposing the hub to extreme temperatures or moisture and ensure proper grounding when installing in industrial environments.
