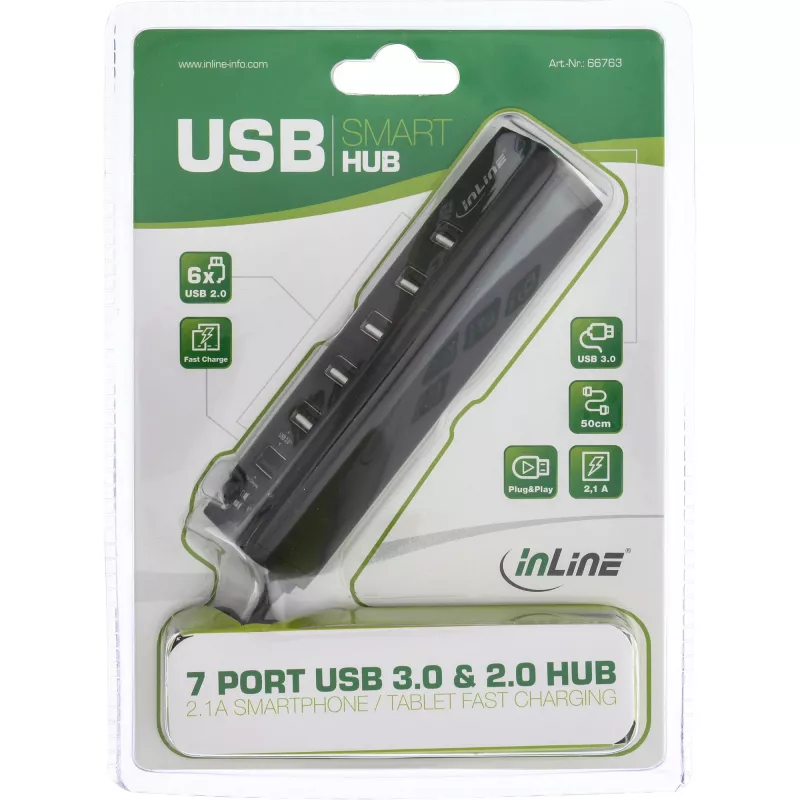

Hub USB InLine Smart Hub 7 porte USB 3.0 e 2.0 con porta di ricarica rapida

Combined USB 3.2 Gen.1 and USB 2.0 connectivity: One USB 3.2 Gen.1 socket with up to 5 Gb/s for fast data transfers and six USB 2.0 sockets with up to 480 Mb/s for versatile connection options.
Integrated quick-charging port: One of the USB 2.0 sockets enables fast charging of devices with up to 2.1 A (requires optional 5 V DC / 3 A power adapter).
Clear status display: A red LED indicates the charging mode, a green LED signals active data transfers.
Simple integration: Plug-and-play functionality without driver installation ensures fast commissioning.
Compact, robust design: Lightweight ABS plastic housing for flexible use where space is limited.

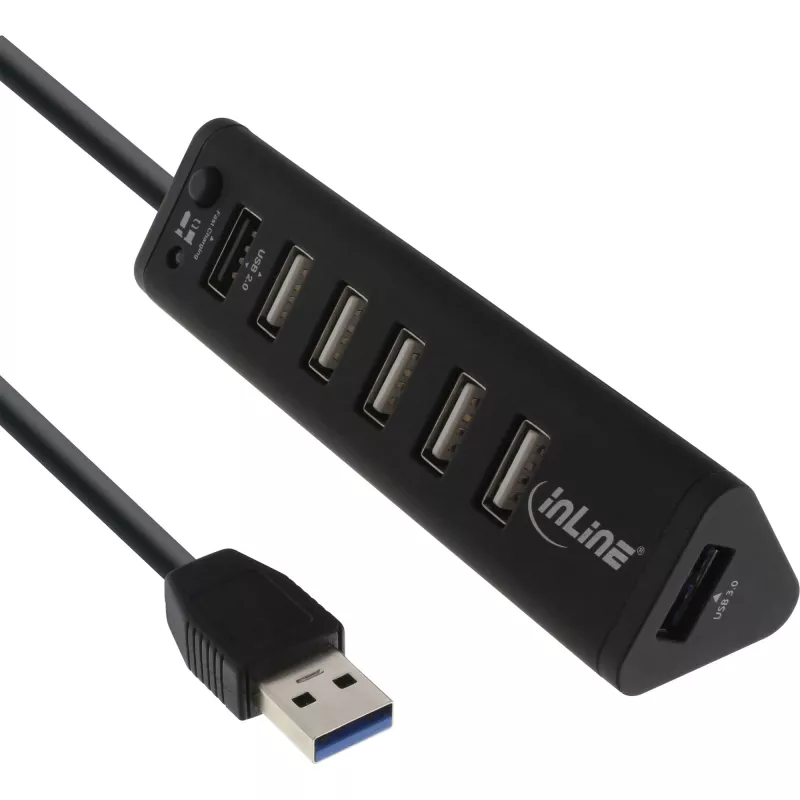

The InLine® Smart Hub is a reliable and powerful solution for expanding USB ports in demanding IT environments. It combines a USB 3.2 Gen.1 interface with a data rate of up to 5 Gb/s for fast file transfers with six additional USB 2.0 ports for other peripheral devices.

An integrated quick-charging port with up to 2.1 A ensures a fast power supply for mobile devices, provided an optional 5 V DC / 3 A power supply unit is used. The LED status display provides information on the current operating status at all times: red LED for charging mode, green LED for data transfer.

Thanks to the plug-and-play function, the hub can be immediately integrated into existing systems without additional driver installation. The compact and robust ABS housing is ideal for use in confined spaces or in mobile working environments. With a cable length of 50 cm, the hub also offers sufficient flexibility for various areas of application.

Input/output voltage: 5.0 V DC
Power input: 1x DC socket 3.5 x 1.35 mm
Cable length: approx. 50 cm
Dimensions: 120 x 31 x 28 mm (LxWxH)
Weight: 60 g

Content of delivery:

InLine® Smart Hub with 50 cm cable
1 m USB-to-DC cable (3.5 x 1.35 mm)

InLine Smart Hub 7 Port USB 3.0 & 2.0 Hub with Fast-charge Port. Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-A, Hub interfaces: USB 2.0, USB 3.2 Gen 1 (3.1 Gen 1) Type-A. Data transfer rate: 5000 Mbit/s, Product colour: Black, Housing material: ABS synthetics. Power source type: DC, Input voltage: 5 V, Output voltage: 5 V. Width: 31 mm, Depth: 120 mm, Height: 28 mm. Package width: 144 mm, Package depth: 194 mm, Package height: 42 mm

How to use

Connect the hub to your computer using the integrated or supplied USB Type-A host connector. Once connected, the operating system should recognise the hub and enumerate the attached ports automatically; no additional drivers are typically required for modern Windows, macOS or Linux systems. Plug USB devices into the available Type-A ports; use the USB 3.0 ports for high-speed storage devices and the dedicated fast-charge port for charging mobile devices. Ensure the host system provides sufficient power for connected devices or use an externally powered USB hub solution if high current draw peripherals are used.

Recommendations

Use the USB 3.0 ports for external SSDs and HDDs to achieve optimal transfer speeds, and reserve the fast-charge port for charging phones or tablets. Avoid connecting multiple high-current devices simultaneously to an unpowered hub to prevent unstable operation; consider using a powered hub or a USB port on the host that supports higher current if needed.
