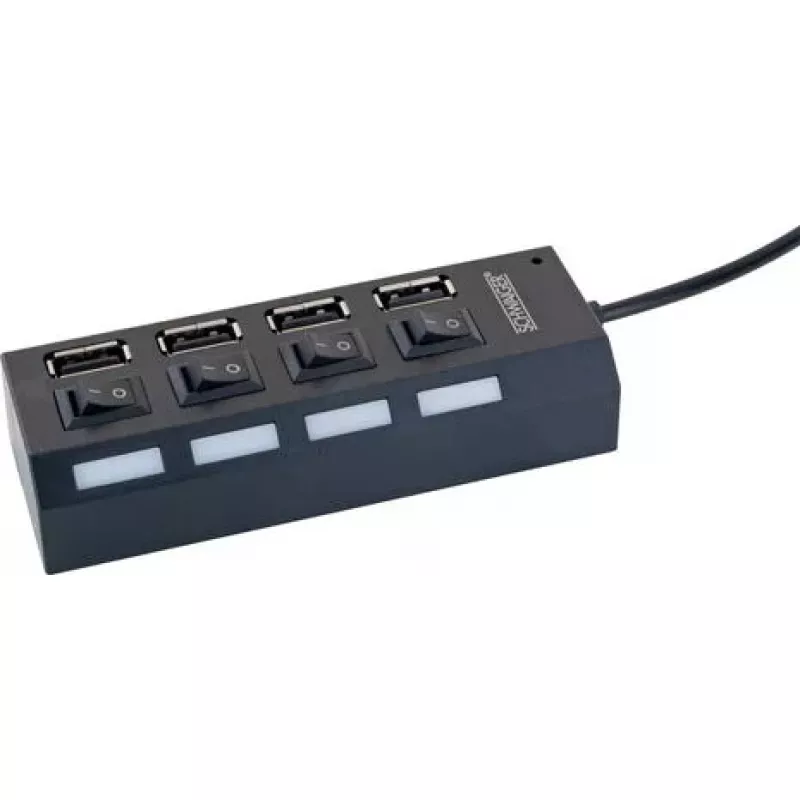

Hub USB Schwaiger UH4013 2.0 480 Mbit/s nero

The Schwaiger UH4013 is a compact USB 2.0 hub designed to expand a single USB port into four functional ports. Supporting data transfer rates up to 480 Mbit/s and featuring a slim black housing with dimensions of 105 mm × 36 mm × 22 mm, this hub provides straightforward connectivity for peripherals such as mice, keyboards, flash drives and other USB devices. The hub operates from a 5 V input voltage and is compatible with standard USB 2.0 host interfaces.

Advantages

The UH4013 offers four additional USB 2.0 ports in a lightweight and pocketable form factor, enabling simultaneous connection of multiple devices without changing existing system settings. Its USB 2.0 compatibility ensures reliable data transfer at up to 480 Mbit/s for supported devices, and the black finish integrates unobtrusively into desktop and laptop setups. Low weight and compact dimensions make it easy to carry and position on a workstation.

Suitable for

• Connecting mice, keyboards and other input devices
• Attaching USB flash drives and external storage for file transfers
• Connecting printers, scanners or dongles that use USB 2.0
• Expanding USB port availability on laptops, desktops and small-form computers

Key specifications

• Interface standard: USB 2.0
• Maximum data rate: up to 480 Mbit/s
• Number of ports: 4 downstream ports
• Input voltage: 5 V
• Color: black
• Dimensions (W × D × H): 105 mm × 36 mm × 22 mm
• Weight: 0.05 kg

How to use

Connect the UH4013 to an available USB port on your computer using the integrated host cable or supplied connector, then plug your USB devices into the hub's four ports. The hub is bus-powered from the host port at 5 V; no separate power supply is required for typical low-power peripherals. After connection, the operating system should detect each device and install drivers if necessary. For devices requiring higher power, connect them one at a time and verify operation.

Recommendations

Use the hub for low- and medium-power USB 2.0 devices. For high-power peripherals or multiple simultaneously powered devices (such as external hard drives), consider using a powered USB hub or connect high-draw devices directly to a powered USB port to ensure stable operation.
