i-tec Metal USB-C Nano Dock HDMI/VGA con LAN + caricabatterie 100 W

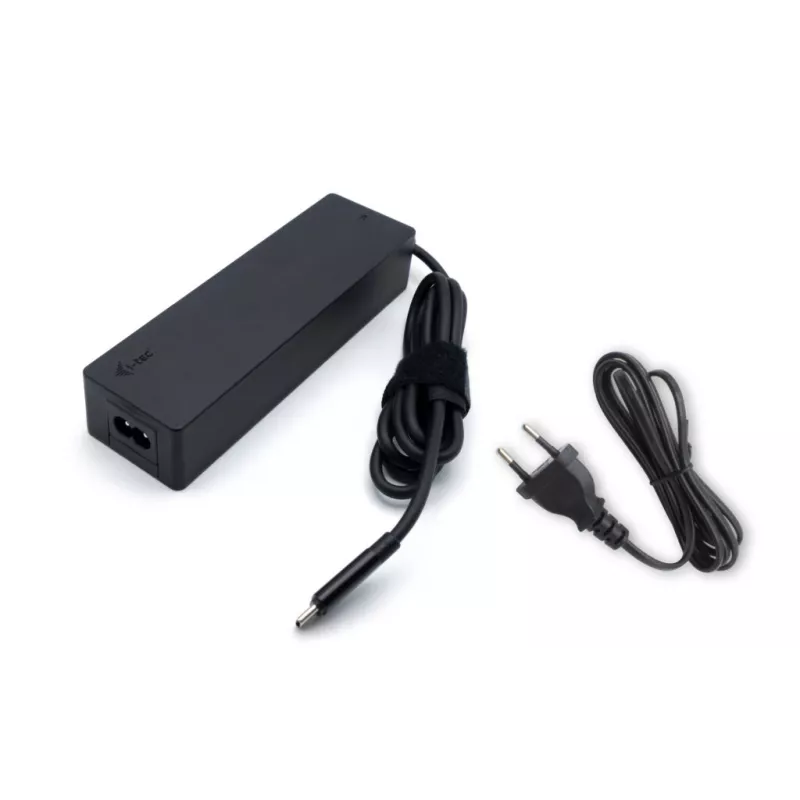

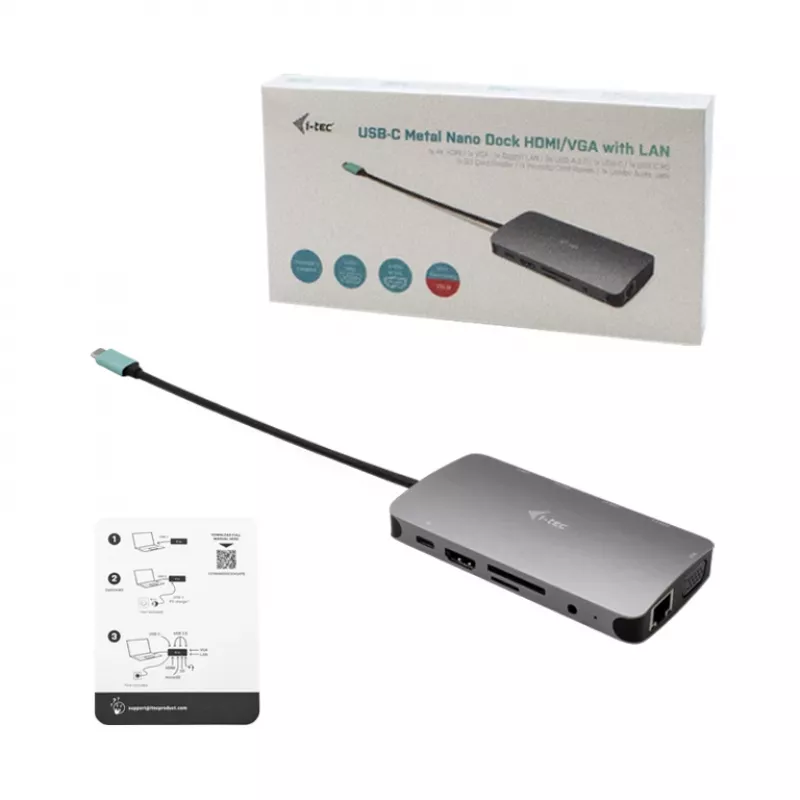

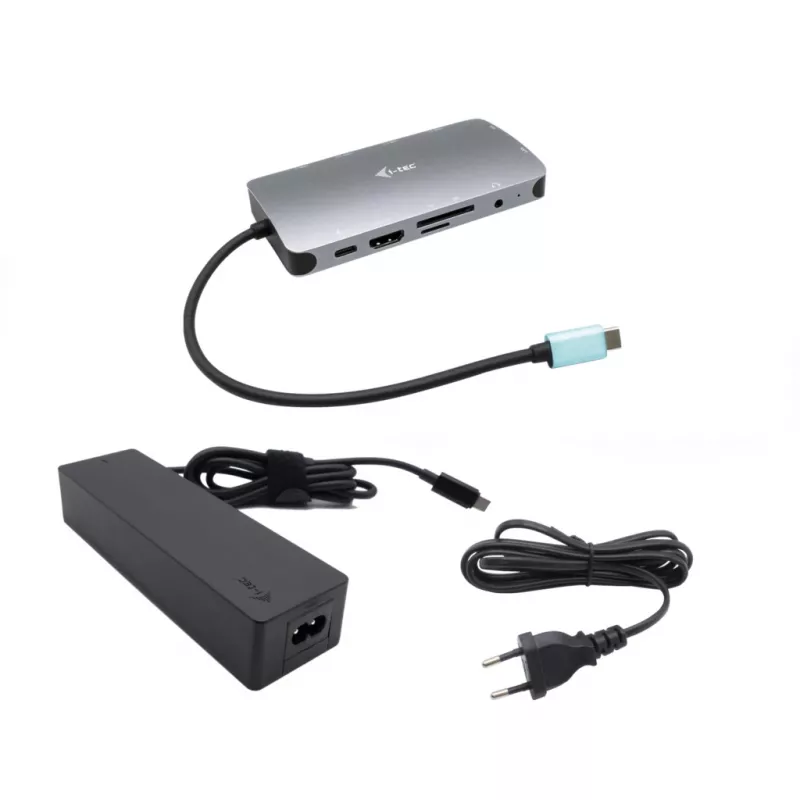

The USB-C Dock i-tec Metal Nano Dock HDMI/VGA LAN Charger 100W is a combined docking station and universal USB-C charging adapter designed to expand connectivity and provide power for laptops and tablets that support USB-C Power Delivery. The compact metal docking station offers HDMI and VGA video outputs, a Gigabit Ethernet port, multiple USB ports and memory card slots while the included 100 W USB-C charger supplies power for devices with up to 100 W demand.

Advantages

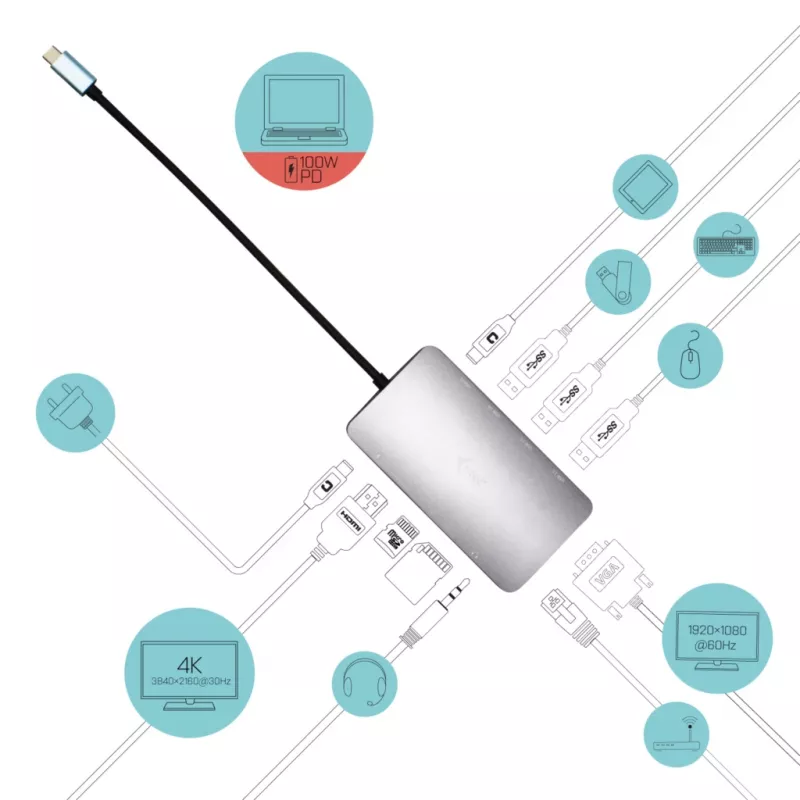

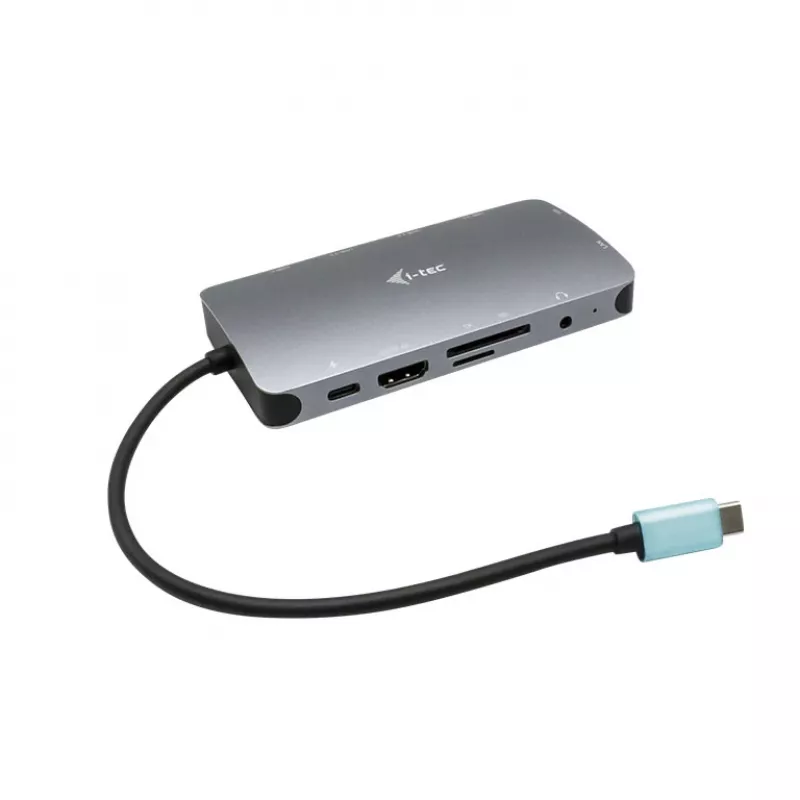

The docking station supports up to 4K@30 Hz external displays via HDMI, provides simultaneous HDMI and VGA outputs (both mirror the same image), and supplies power delivery up to 100 W so compatible laptops and tablets can be charged while connected. A brushed aluminium housing increases durability for travel. Integrated USB-C cable length and Thunderbolt 3 compatibility simplify connection to a wide range of devices. Additional features include three USB 3.0 Type-A ports, one USB-C data port, SD and microSD card slots, a front combined audio/microphone jack and a Gigabit RJ-45 Ethernet port supporting 10/100/1000 Mbps.

Suitable for

• Users needing wired network access for stable internet (RJ-45 Gigabit Ethernet)
• Connecting external monitors or projectors via HDMI or VGA for presentations or dual-display setups (mirrored)
• Connecting USB peripherals such as external drives, keyboards and mice via USB 3.0 ports
• Transferring photos and files from SD or microSD cards used in cameras and smartphones

Key specifications

• Power delivery: up to 100 W (USB-C PD compatible)
• Video outputs: 1× HDMI (up to 4K@30 Hz) and 1× VGA (both can be used simultaneously as mirrored outputs)

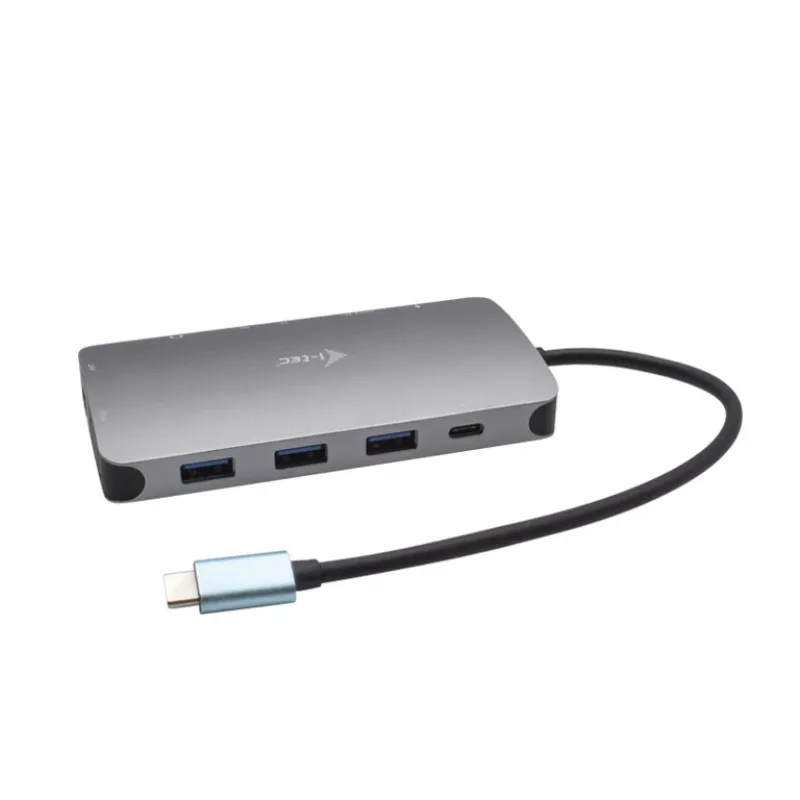

• USB ports: 3× USB 3.0 Type-A, 1× USB-C port
• Memory card: SD and microSD slots
• Ethernet: 1× Gigabit RJ-45 (10/100/1000 Mbps)
• Audio: combined headset/microphone jack (front panel)
• Compatibility: Windows 10, macOS, Android, Chrome OS and Linux; Thunderbolt 3 compatible
• Material and colour: brushed aluminium, grey
• Weight: 0.1 kg

How to use

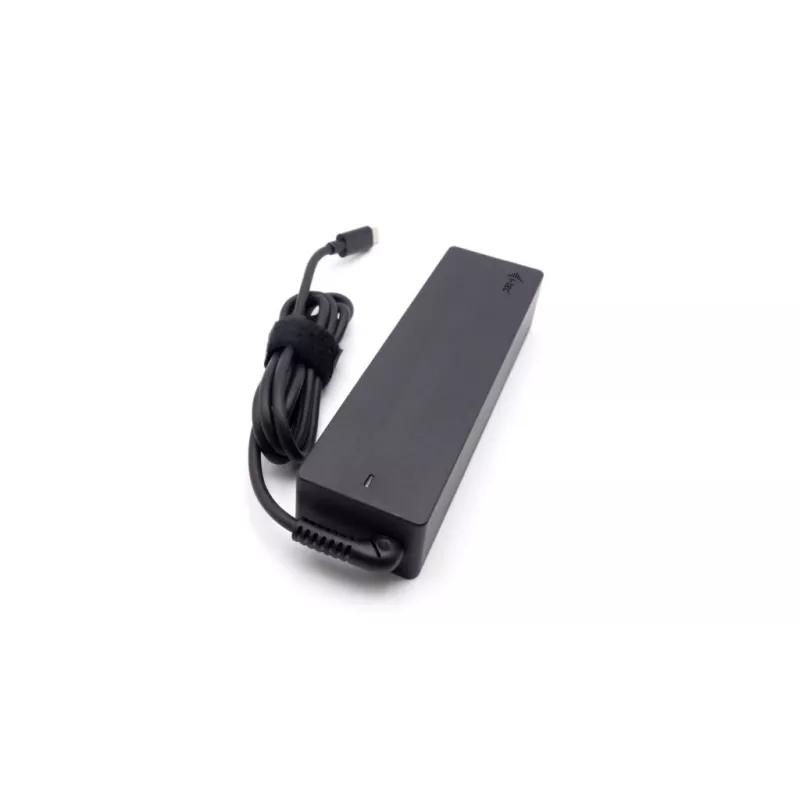

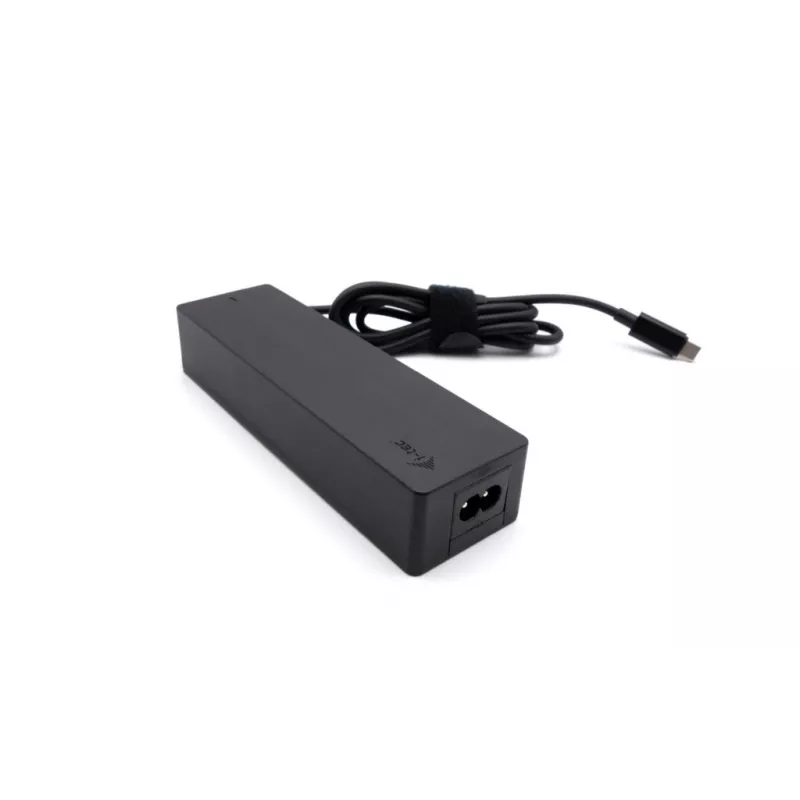

Connect the integrated USB-C cable of the docking station to a laptop or tablet USB-C/Thunderbolt 3 port that supports USB-C data and power delivery. Connect an external monitor or projector to the HDMI or VGA port as required; when both HDMI and VGA are used they will display the same image. Plug USB peripherals into the USB 3.0 Type-A ports and insert SD/microSD cards into the respective slots for file access. Connect a network cable to the RJ-45 port for wired internet access. Use the included 100 W USB-C charger to power the docking station or directly charge devices that require up to 100 W following the USB Power Delivery profiles.

Recommendations

For stable video output at the highest resolution, use the HDMI port for 4K displays and ensure the host device supports the required USB-C Alternate Mode. When using both HDMI and VGA simultaneously expect mirrored output. Use the supplied USB-C charger when device power demand may approach 100 W and keep firmware and OS drivers up to date for optimal compatibility.
