i-tec USB 3.0 / USB-C Docking station dual display HDMI DVI + VGA

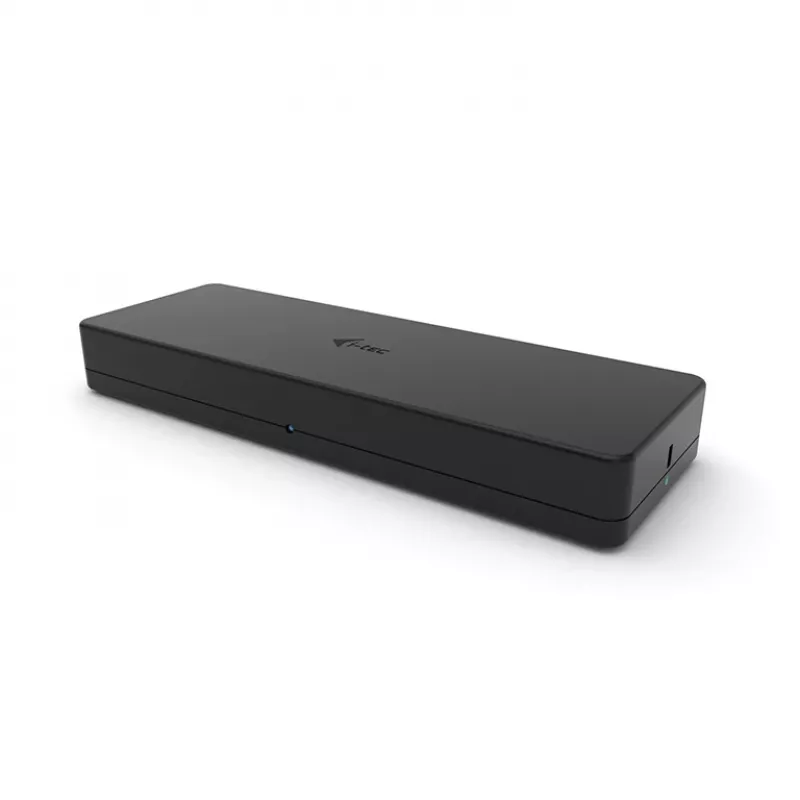

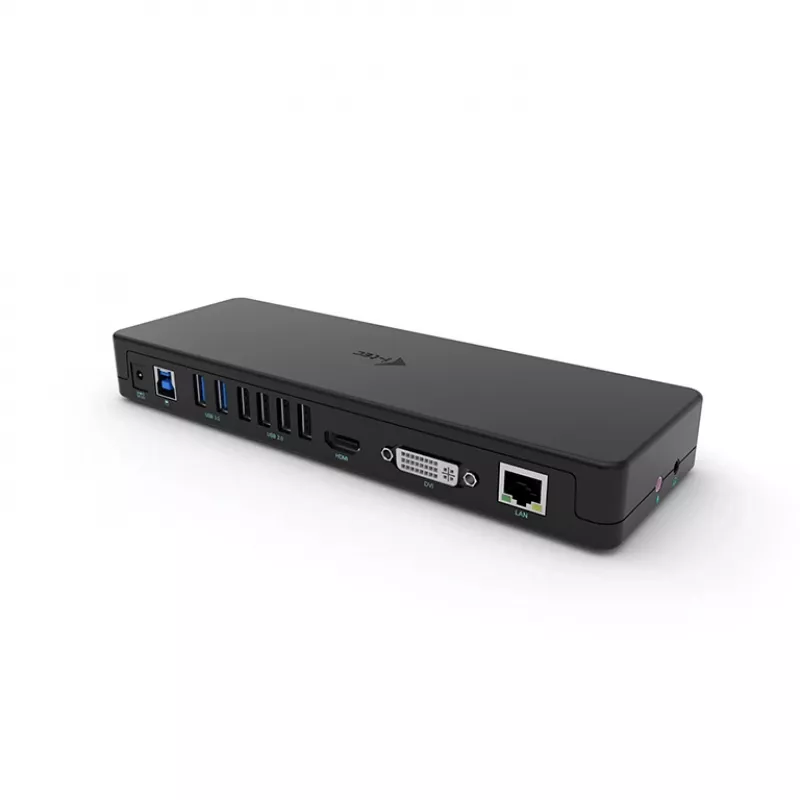

The i-tec USB 3.0 / USB-C Dual Display Docking Station is a universal docking solution compatible with most laptops and current operating systems. It connects via USB 3.0 (USB 3.2 Gen 1) Type-A, USB-C or Thunderbolt 3/4 and provides multiple expansion ports including HDMI, DVI-I and VGA for external displays, six USB ports (two USB 3.0 / Gen 1 and four USB 2.0), a Gigabit Ethernet (RJ-45) port and 3.5 mm audio input/output. The device has a compact black design, accepts 12 V/2 A power and includes a Kensington lock slot for physical security.

Advantages

The docking station supports up to two external monitors through HDMI and DVI (with VGA available), offers reliable wired network connectivity at 10/100/1000 Mbit/s, and provides a range of USB ports for peripherals. It is compatible with Android and major operating systems and includes a VESA mounting option (VESA bracket supplied separately) so the unit can be mounted behind a monitor for a tidy workspace.

Suitable for

• Expanding laptop connectivity for office workstations
• Connecting dual external displays for productivity tasks
• Setting up home office or hot-desk environments with wired LAN
• Using multiple USB peripherals such as keyboard, mouse, and external drives

Key specifications

• Host interface: USB 3.2 Gen 1 (USB 3.0) Type-A; compatible with USB-C / Thunderbolt 3/4 connections
• Video outputs: 1× HDMI, 1× DVI-I, 1× VGA (D-Sub)
• USB ports: 2× USB 3.0 (Gen 1), 4× USB 2.0 (total 6 USB ports)
• Ethernet: 1× RJ-45, 10/100/1000 Mbit/s
• Audio: 3.5 mm headphone/microphone support
• Power: 12 V, 2 A
• Security: Kensington lock slot
• Colour and weight: Black, 0.76 kg

How to use

Connect the docking station to your laptop using a compatible cable (USB 3.0 Type-A, USB-C or Thunderbolt). Attach external displays to the HDMI, DVI-I or VGA ports as required and connect peripherals to the USB ports. Plug an Ethernet cable into the RJ-45 port for wired network access and connect speakers or a headset to the 3.5 mm audio jack. Ensure the docking station is powered by a suitable 12 V/2 A adapter if required by the model.

Recommendations

For optimal display performance, use digital outputs (HDMI or DVI) when available and check your laptop's graphics and OS support for multiple monitors. Mount the docking station behind a monitor using the VESA bracket to save desk space and secure the unit with a Kensington lock in shared environments.
