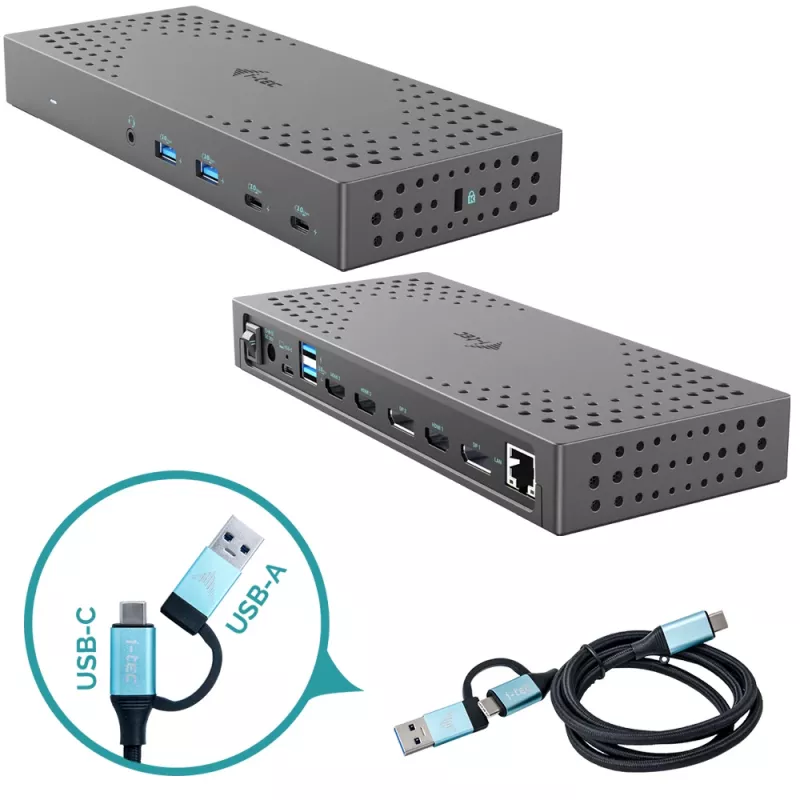

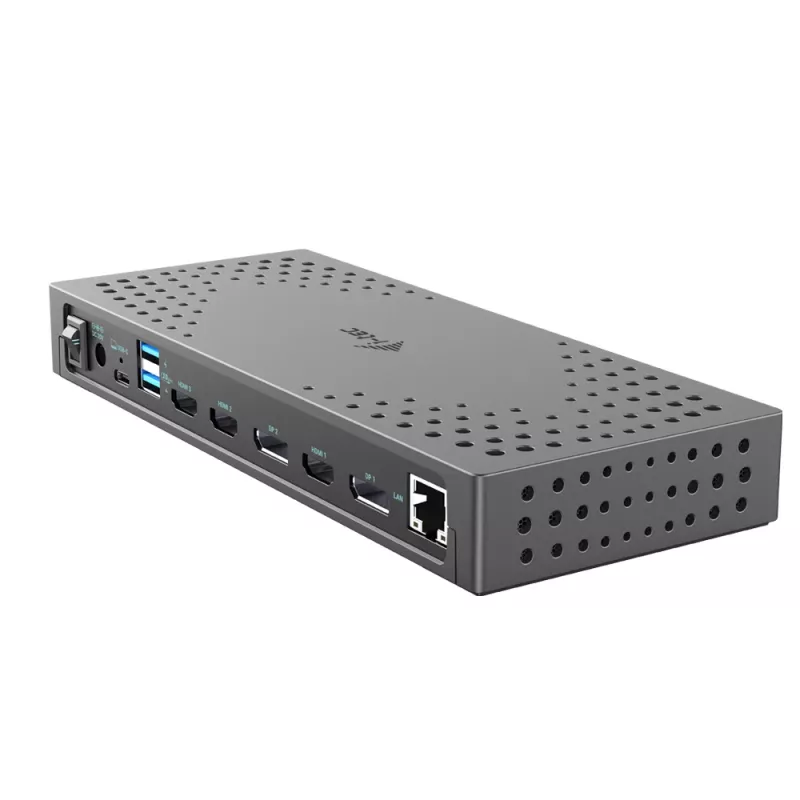

i-tec USB 3.0 / USB-C / Thunderbolt, docking station 3x 4K Gen 2 + Power Delivery 100W

A professional Gen 2 docking station that supports output to up to three external monitors with resolutions up to 4K. The dock is compatible with most notebooks through USB 3.0, USB-C and Thunderbolt™ 3/4 ports and supports major operating systems. Note that three-monitor output requires a laptop with a Thunderbolt™ 3/4 port or a USB-C port that supports video (USB-C DP Alt mode); when connected via USB 3.0, the dock supports up to two external monitors. Charging for laptops or tablets is supported up to 100 W when the dock is connected to a host that permits power delivery.

Advantages

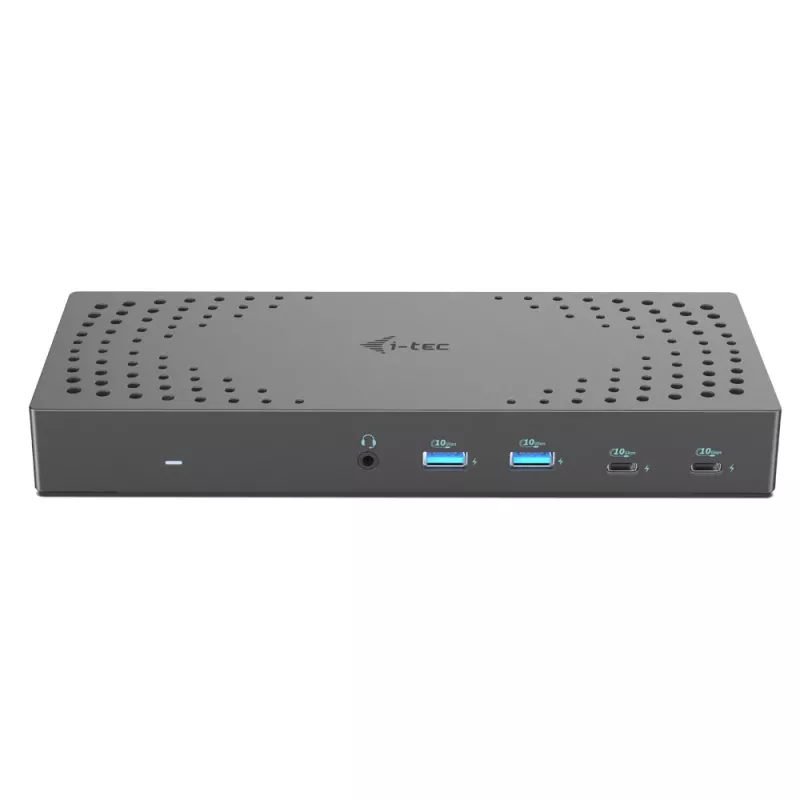

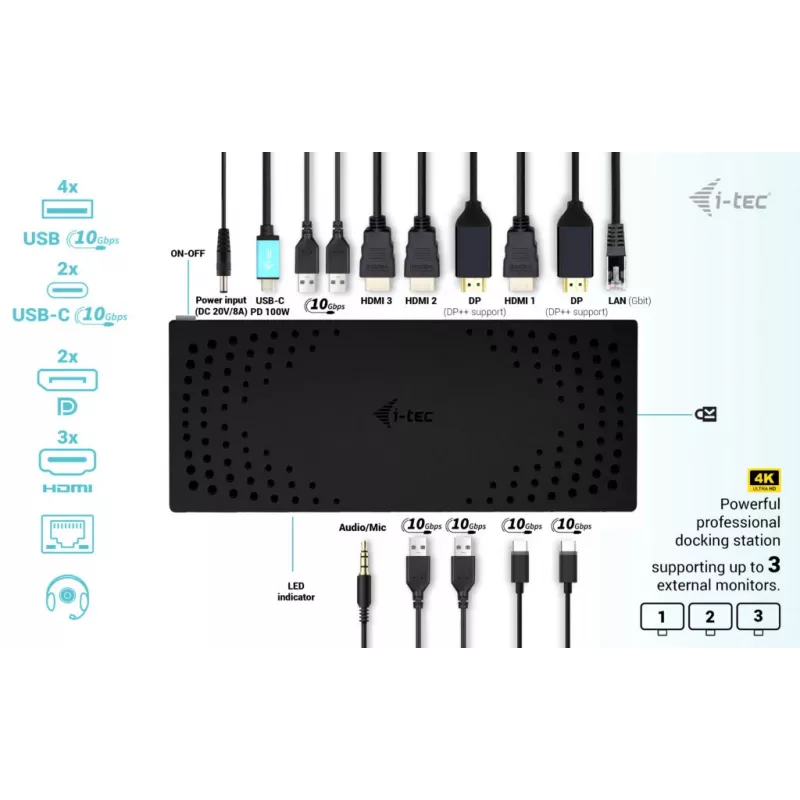

The docking station provides multiple high-speed Gen 2 USB ports (up to 10 Gbps) for peripherals, a Gigabit Ethernet RJ-45 port for reliable wired network access, and combo audio/microphone jack. It includes 2 DisplayPort and 3 HDMI video outputs (HDMI 3 requires a Thunderbolt™ 3/4 or USB-C with DP Alt mode on the host), a Kensington lock slot for physical security, a power switch for energy saving, and VESA mounting support for installation behind compatible monitors.

Key specifications

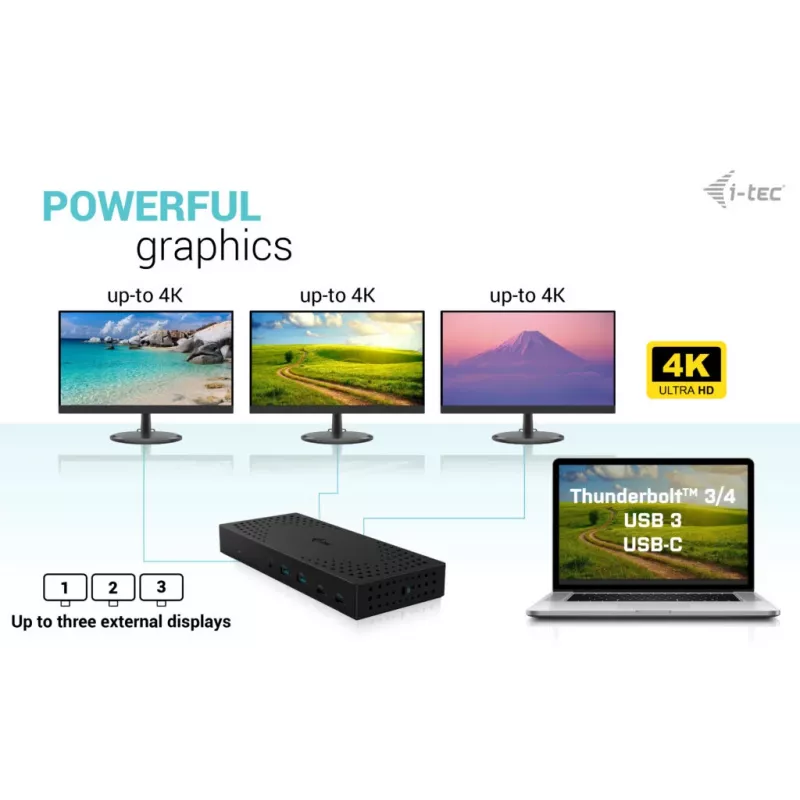

• Multi-monitor support: up to 3 external displays at up to 4K (three displays require Thunderbolt™ 3/4 or USB-C with DP Alt mode)

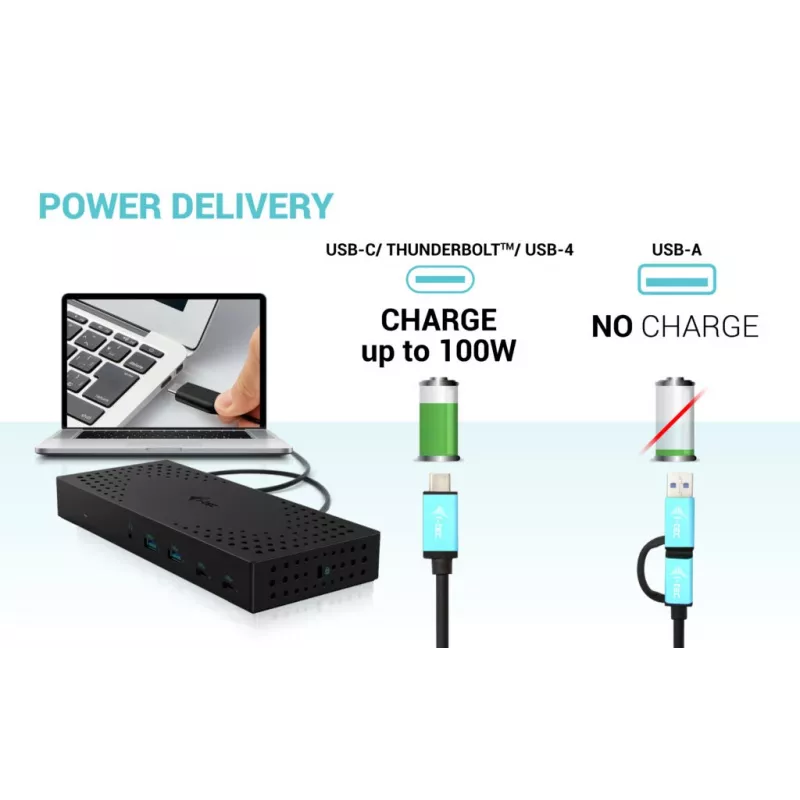

• Power delivery: up to 100 W (not available when connected via USB 3.0)

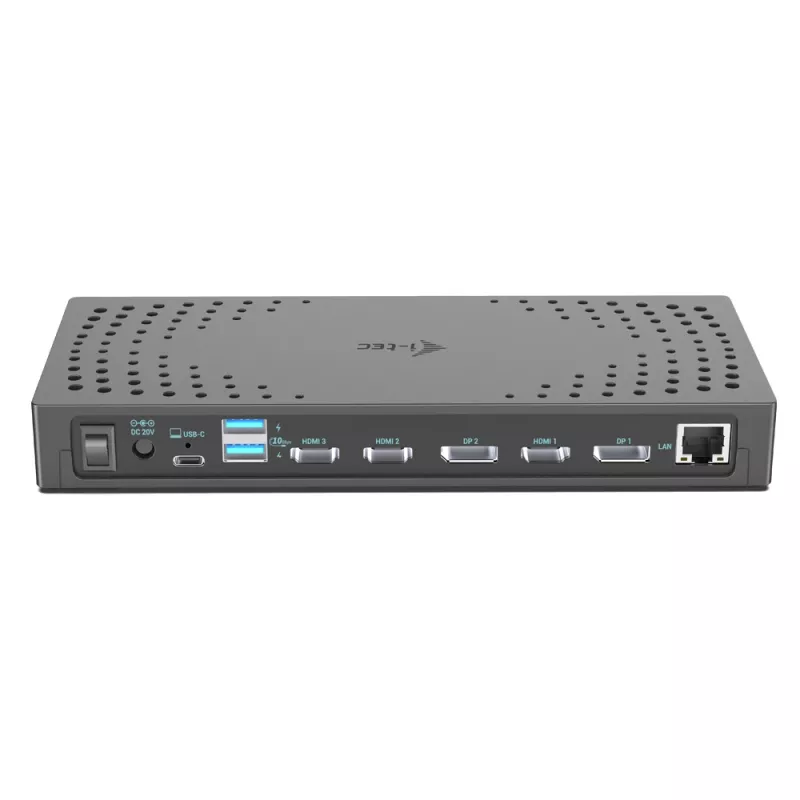

• Video outputs: 2× DisplayPort, 3× HDMI (HDMI 3 functional only with appropriate host port)
• USB ports: 4× USB 3.2 Gen 2 (10 Gbps), 2× USB-C Gen 2 (10 Gbps)
• Network: Gigabit Ethernet RJ-45, 10/100/1000 Mbps
• Audio: combo jack for headphones and microphone

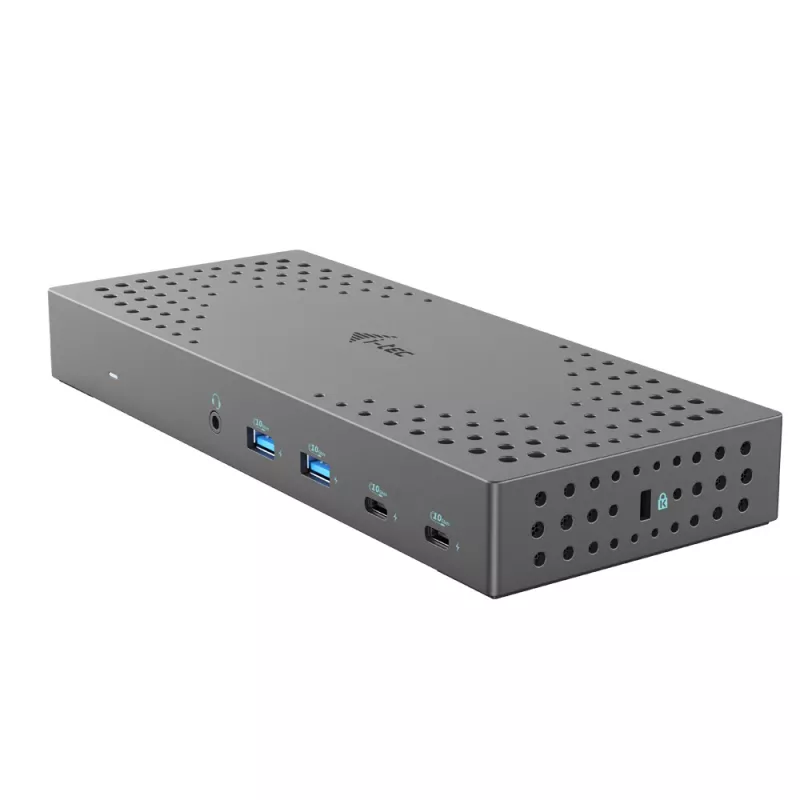

• Security: Kensington lock slot

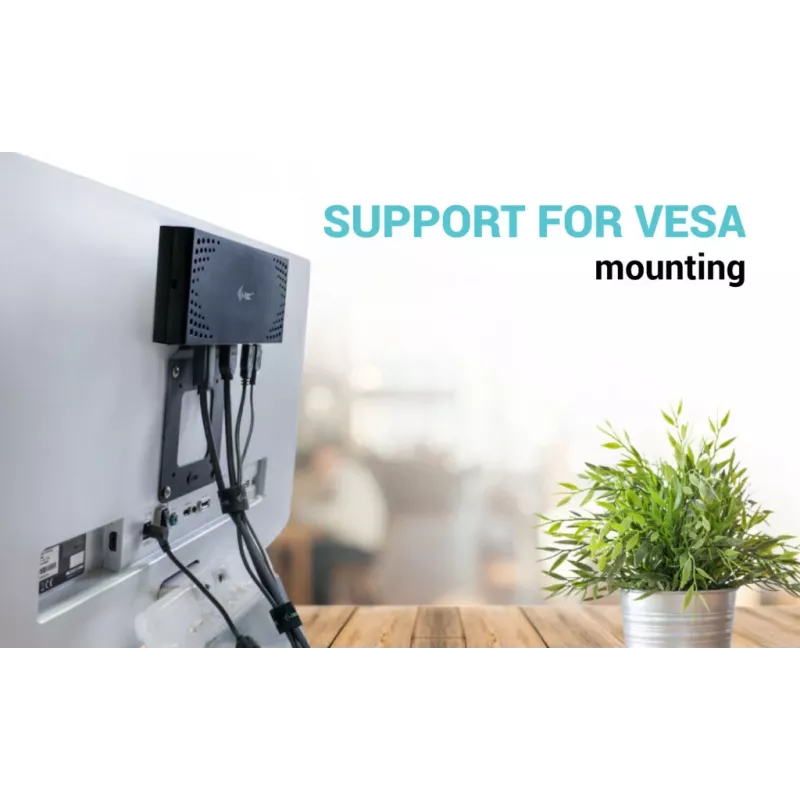

• Mounting: VESA mount support for behind-monitor installation
• Compatibility: Windows 10 / 11, macOS, Android 5+, Chrome OS R51+, Linux Ubuntu

How to use

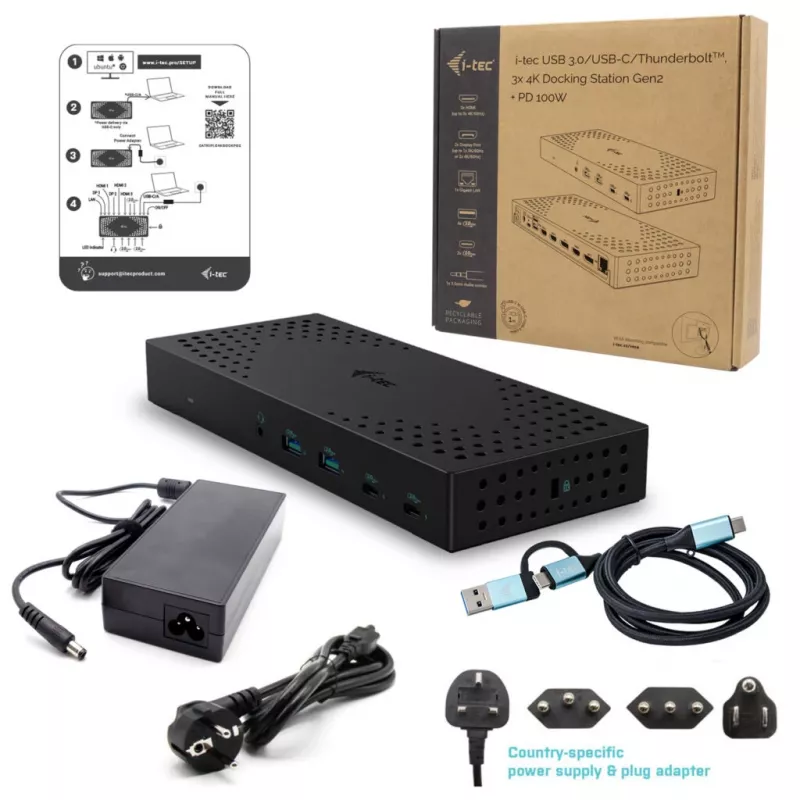

Connect the docking station to your notebook using the appropriate host port (Thunderbolt™ 3/4, USB-C with DP Alt mode, or USB 3.0). Attach external monitors to the DisplayPort and HDMI outputs; verify your laptop’s port capabilities to enable three-monitor output. Plug in USB devices to the Gen 2 ports for data transfer, connect an Ethernet cable for wired network access, and use the combo jack for audio. When supported by the host, connect the dock’s power adapter to enable up to 100 W power delivery to charge the laptop or tablet. Use the dock’s power switch to turn off the unit when not in use to save energy.

Recommendations

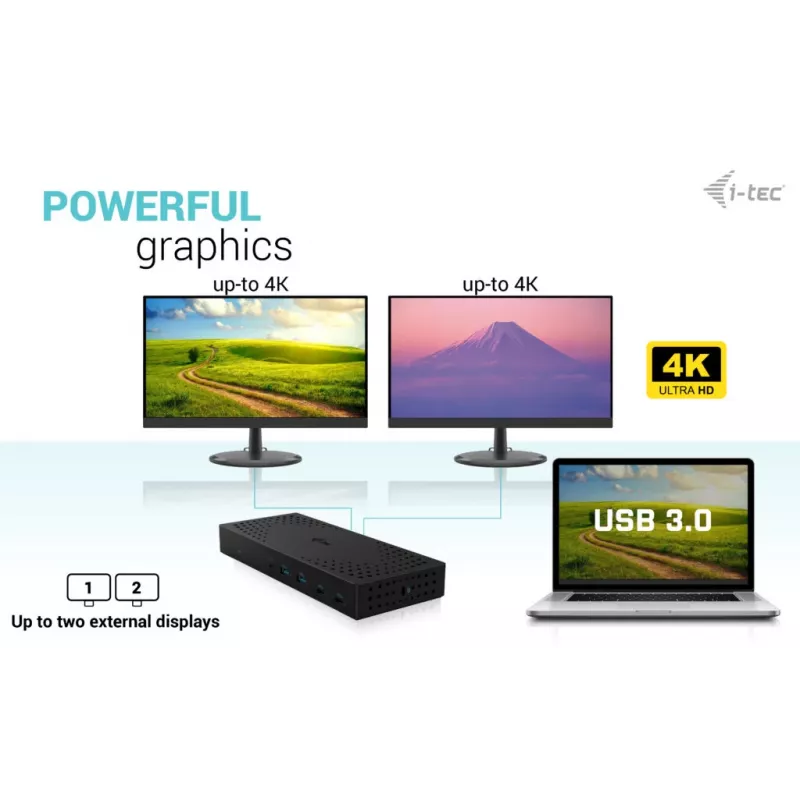

For three-screen configurations ensure your notebook has Thunderbolt™ 3/4 or a USB-C port with DP Alt mode. If you connect the dock via USB 3.0, expect support for only two external monitors and note that power delivery/charging will not be available.
