Docking station ICY BOX IB-DK4040a-CPD — 10-in-1 USB-C, HDMI 4K60Hz, VGA, 3×USB-A, Gigabit-LAN, PD 100W, SD/MicroSD, alluminio

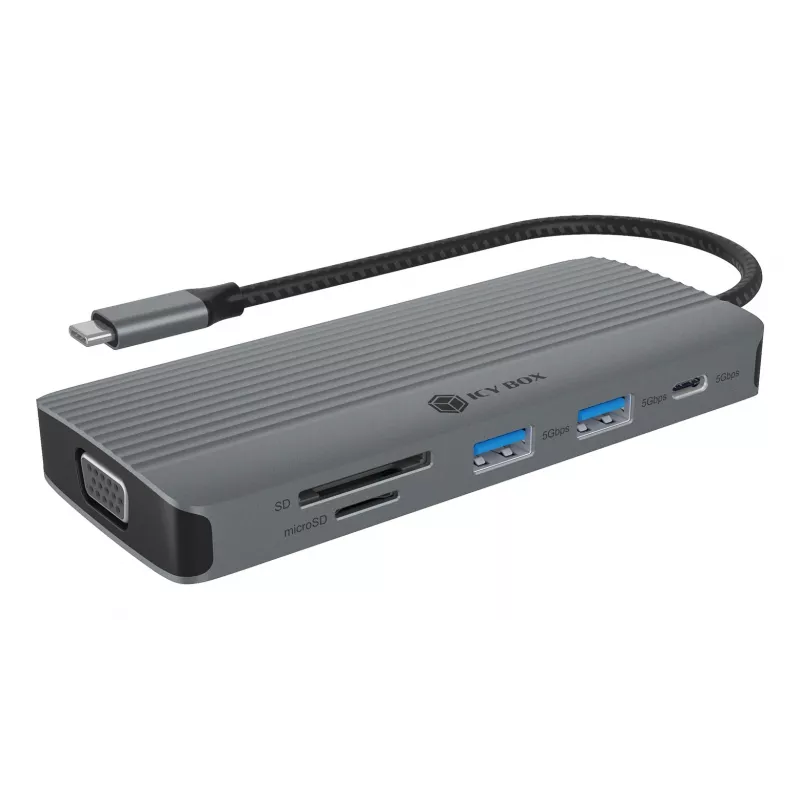

The ICY BOX IB-DK4040a-CPD is a 10-in-1 wired USB-C docking station that expands the connectivity of laptops and USB-C devices. It provides a USB 3.2 Gen 1 Type-C host interface with Power Delivery up to 100 W, a single HDMI output supporting 4K at 60 Hz, a VGA output, three USB-A 3.2 Gen 1 ports, Gigabit Ethernet (1000 Mbit/s), SD and MicroSD card slots, and high-speed data transfer up to 5 Gbit/s. The compact aluminium housing offers a low-profile desktop presence while enabling external display, network and storage connections from one hub.

Advantages

The docking station combines multiple ports in a single aluminium unit to reduce cable clutter and provide a consistent set of interfaces for different work scenarios. HDMI 4K60Hz and VGA outputs allow connection to modern high-resolution displays as well as legacy monitors and projectors. Integrated Gigabit Ethernet delivers stable wired network access while three USB-A ports and card readers support peripherals and removable media. USB Power Delivery support up to 100 W enables pass-through charging of compatible laptops and devices through the host USB-C connection.

Suitable for

• Office and home office setups requiring additional display and wired network connections
• Presentations with modern HDMI displays or older VGA projectors
• Connecting multiple USB peripherals such as keyboards, mice and external drives
• Transferring photos and files from SD and MicroSD cards
• Charging USB-C laptops and devices while using external accessories

Key specifications

• Host interface: USB 3.2 Gen 1 Type-C (data up to 5 Gbit/s)
• Power Delivery: up to 100 W pass-through charging
• Video outputs: 1× HDMI (supports 4K @ 60 Hz), 1× VGA
• USB: 3× USB-A 3.2 Gen 1 ports
• Network: Gigabit Ethernet (1000 Mbit/s)
• Card readers: SD and MicroSD (TransFlash) slots
• Construction: aluminium housing, silver colour
• Weight: 0.11 kg

How to use

Connect the docking station to a compatible host device using the USB-C host cable. If required, connect an external power adapter to the host device to enable Power Delivery charging up to 100 W. Attach displays to the HDMI and/or VGA outputs depending on the monitor capabilities; the HDMI port supports up to 4K at 60 Hz while VGA provides compatibility with older displays. Plug USB peripherals into the USB-A ports and insert SD or MicroSD cards into the corresponding slots. Connect Ethernet cable to the RJ-45 port for wired network access. The docking station uses standard plug-and-play operation with compatible operating systems; no additional drivers are typically required for basic functions.

Recommendations

For reliable display output at 4K60, use a high-quality HDMI cable and ensure the host device supports DisplayPort Alternate Mode over USB-C. When using Power Delivery, verify the host laptop accepts the provided charging profile. For maximum data transfer speeds, connect high-performance storage devices to the USB-A ports and use UHS-II compatible cards in the SD slot when supported by the card and host.
