IDEAL Networks NaviTEK NT Pro kit tester di rete per reti in rame e fibra ottica (R153001)

Equipped with a 3.5-inch color LCD and support for both copper and fiber optic testing, the NaviTEK NT Pro delivers professional-grade network diagnostics in a rugged handheld unit. It performs wiremap, length, TDR, PoE load testing, and optical power measurement, making it an indispensable tool for field technicians.

Overview

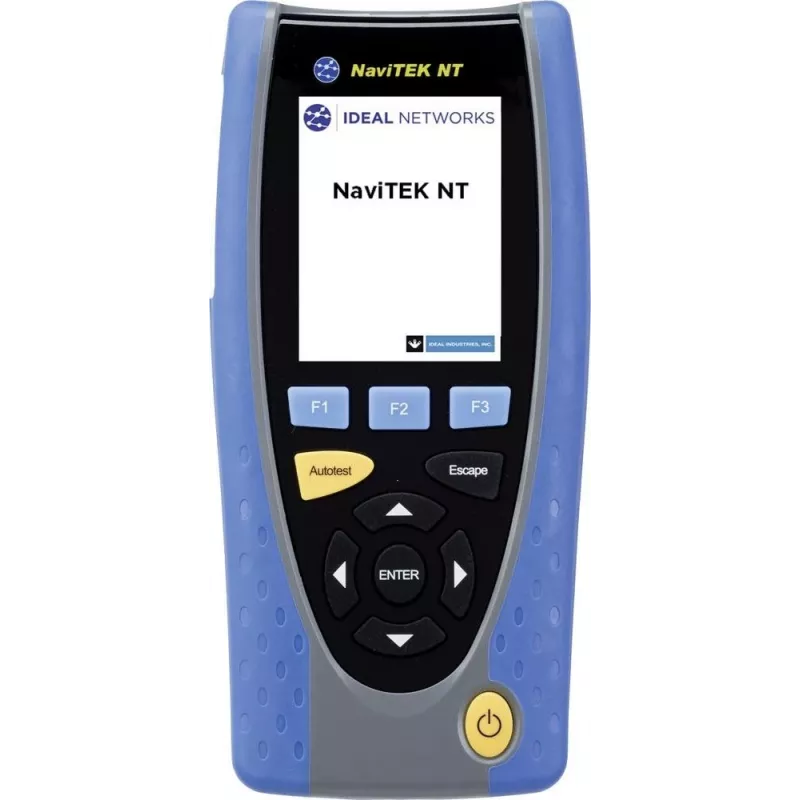

The IDEAL Networks NaviTEK NT Pro is a comprehensive network tester designed for installation, maintenance, and troubleshooting of copper and fiber optic networks. It combines advanced copper testing capabilities with fiber optic power measurement via SFP modules, all in a portable, battery-powered device. The kit includes the main unit, remote unit, patch cables, power adapter, USB cable, quick reference guide, carry case, and four SFP modules (2x SR, 2x LR) for multimode and single-mode fiber testing.

What stands out

• Dual-media testing: copper (UTP/STP/FTP) and fiber (multimode/singlemode) with included SFP modules.
• Comprehensive copper diagnostics: wiremap, length, distance to fault (TDR), PoE/PoE+ detection and load test, port blink, ping, traceroute, DHCP client, switch detection, network scan, VLAN detection, IP configuration, and tone generator.
• Fiber testing: optical power measurement via SFP ports; optional USB microscope for fiber inspection.
• 3.5-inch color LCD with intuitive icon-based graphical interface.
• Rechargeable Li-ion battery (3.7V, 3000mAh) providing up to 5 hours of continuous use.
• Internal memory stores over 5000 test results; generate PDF reports via IDEAL AnyWARE™ app or PC software.
• Network diagnostics: identifies network configuration (IP, gateway, DNS), services (HTTP, FTP, SSH), and device types.
• Customizable auto-test for copper and fiber networks.
• Operating temperature: 0°C to 40°C (32°F to 104°F).
• Kit includes: main unit, remote unit, 2x 2m Cat 5e patch cables, power adapter, USB cable, quick reference guide, carry case, 2x SFP+ SR modules, 2x SFP+ LR modules.

Technical details

• Supported media: Copper (UTP, STP, FTP), Fiber Optic (Multimode, Singlemode)
• Copper test functions: Wiremap, Length, Distance to Fault (TDR), PoE/PoE+ Detection & Load Test, Port Blink, Ping, Traceroute, DHCP Client, Switch Detection, Network Scan, VLAN Detection, IP Address Configuration, Tone Generator
• Fiber test functions: Optical Power Measurement (requires SFP modules), Fiber Inspection (requires optional USB microscope)
• Display: 3.5-inch Color LCD
• Connectivity: RJ45 (main unit & remote), SFP port, USB Type-A (for reporting/microscope), USB Type-B (for PC connection)
• Power: Rechargeable Li-ion Battery (3.7V, 3000mAh), up to 5 hours continuous use
• Data storage: Internal memory for >5000 test results
• Reporting: PDF reports via IDEAL AnyWARE™ app or PC software
• PoE standards: IEEE 802.3af/at (PoE/PoE+)
• Operating temperature: 0°C to 40°C (32°F to 104°F)
• User interface: Intuitive graphical interface with icon-based menu

Our verdict

The NaviTEK NT Pro is a versatile and powerful network tester that covers both copper and fiber, making it an excellent choice for technicians who need a single tool for diverse network environments. Its intuitive interface, extensive test functions, and robust reporting capabilities justify its position as a professional-grade solution.
