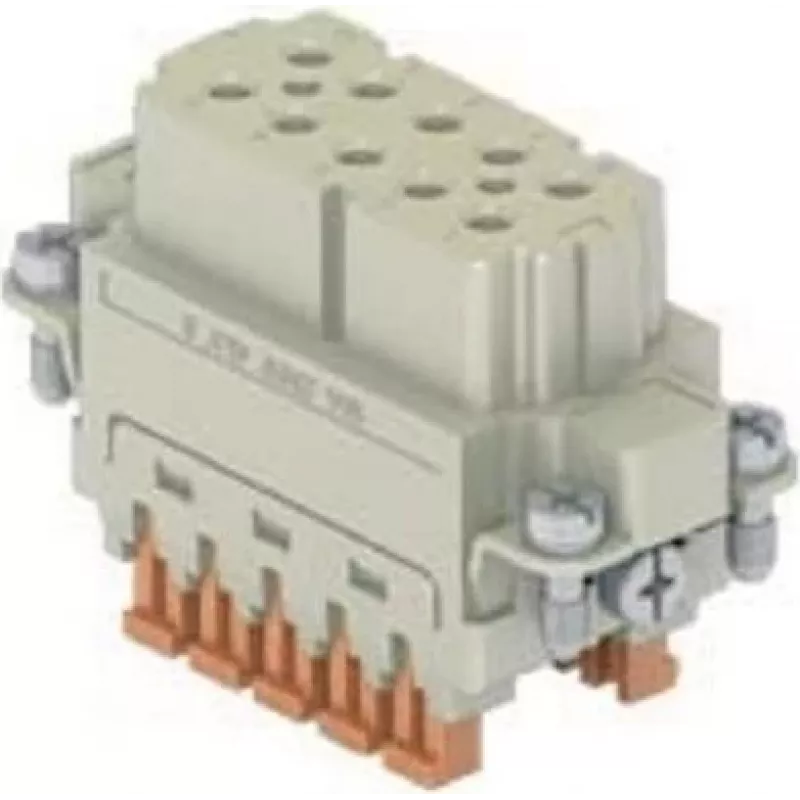

ILME CSAHF10 Inserto femmina 10P+PE argento SQUICH 16A 250V dimensione 49.16

In industrial control panels and machinery, the ILME CSAHF10 female insert provides a reliable 10-pole plus protective earth connection using spring-cage SQUICH termination. It fits ILME size 49.16 housings and is rated for 16 A at 250 V, making it suitable for power and signal distribution in automation systems.

Key specifications

• Product type: Female insert
• Connector series: CSAHF
• Number of poles: 10 + PE (total 11 contacts)
• Connection technology: SQUICH spring-cage
• Rated current: 16 A
• Rated voltage: 250 V
• Contact plating: Silver
• Wire gauge range: 0.14 - 2.5 mm² (AWG 26 - 14)
• Housing size: 49.16
• Operating temperature range: -40°C to +125°C
• Flammability rating: UL94 V-0
• Insulation resistance: > 10 GΩ
• Dielectric strength: 2.5 kV

Why choose it

Tool-less spring terminals speed up wiring and reduce maintenance time. Silver-plated contacts ensure low contact resistance and long-term reliability in demanding environments.

Ideal use cases

• Industrial machinery and control cabinets
• Automation systems requiring modular connectors
• Applications needing quick, vibration-resistant terminations

Good to know

The insert is made of thermoplastic material and is compatible with standard ILME 49.16 hoods and housings. It is approved by UL, CSA, and EAC.
