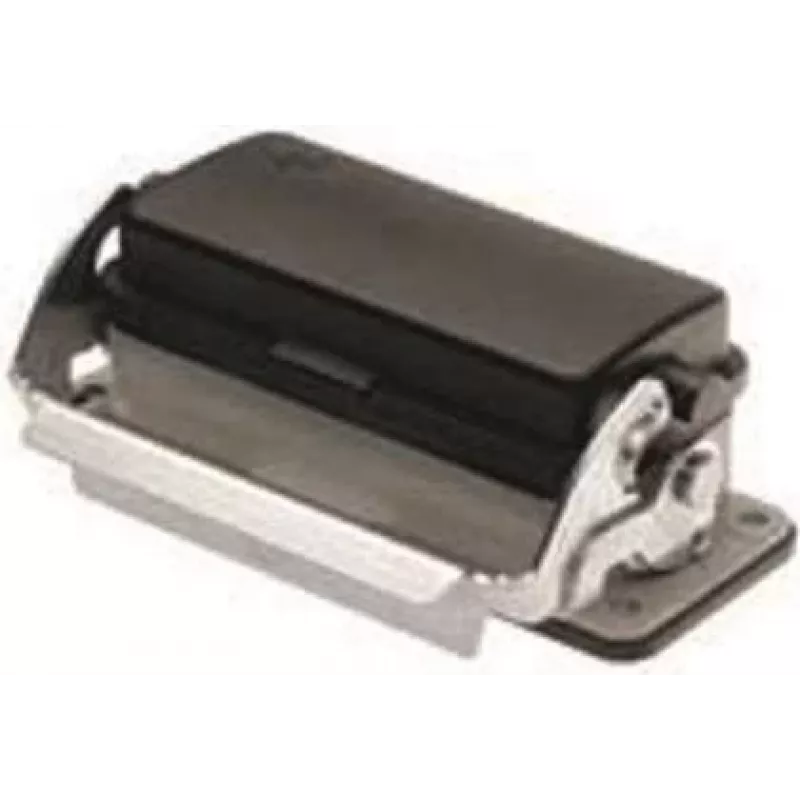

ILME CVI16LSP custodia per montaggio superficiale misura 77.27, alluminio pressofuso, leva singola, coperchio a molla, IP66/IP67

Industrial connectors need a robust enclosure that protects inserts from dust, moisture and mechanical impact. The ILME CVI16LSP surface mounting housing provides a sealed die-cast aluminium shell for 16-pole inserts, with a single lever locking system and a spring-loaded cover that keeps the interior clean when unmated.

Who is it for

Panel builders and machine OEMs integrating rectangular connectors into control cabinets or equipment frames where a surface-mounted, IP66/IP67 rated housing is required.

Main features

• Die-cast aluminium alloy body with polyester powder coating for corrosion resistance
• Single lever locking system for secure mating
• Spring-loaded cover protects contacts when connector is open
• V-type cable entry for flexible cable routing
• Compatible with 16-pole inserts in size 77.27
• NBR gasket ensures reliable sealing
• Operating temperature range -40°C to +125°C

Specifications

• Housing type: Surface mounting housing
• Series: C-TYPE
• Size: 77.27
• Material: Die-cast aluminium alloy
• Locking system: Single lever
• Cover type: Spring-loaded cover
• Protection degree: IP66/IP67
• Temperature range: -40°C to +125°C
• Insert compatibility: 16-pole inserts
• Cable entry type: V-Type
• Gasket material: NBR
• Surface treatment: Polyester powder coated
• RoHS compliant: Yes

Tips

For optimal sealing, ensure the mating connector is properly aligned before engaging the lever. The spring-loaded cover should be closed when the connector is not in use to prevent contamination.
