InLine 23101B supporto a parete/piedistallo per TV 177,8 cm (70") nero

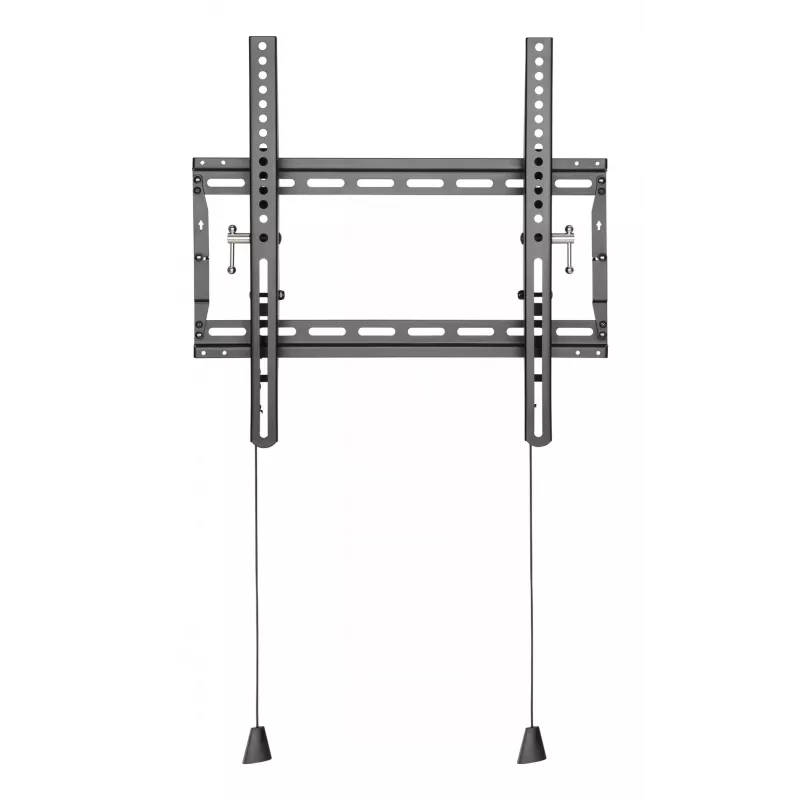

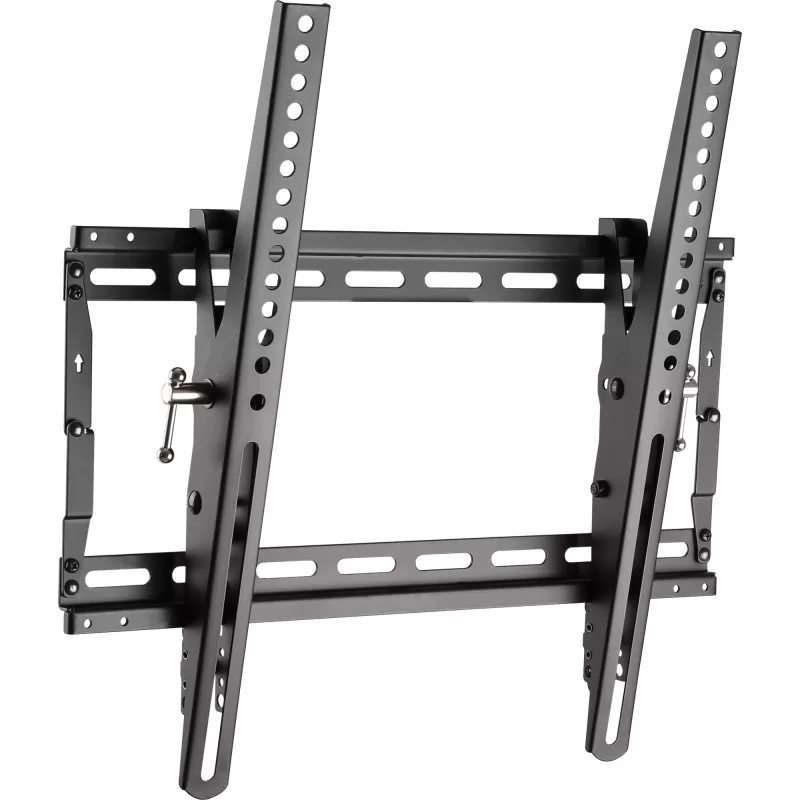

InLine 23101B is a fixed tiltable TV mount/stand designed to attach flat-screen televisions securely to walls or compatible support structures. The bracket supports a wide range of screens from 32 to 70 inches and is constructed from solid steel with a matte black powder-coated finish. It provides a space-saving solution for home, office or public installations where a robust and stable attachment is required, while offering a modest tilt adjustment to optimize viewing angle and simple cable routing through an open wall system.

Advantages

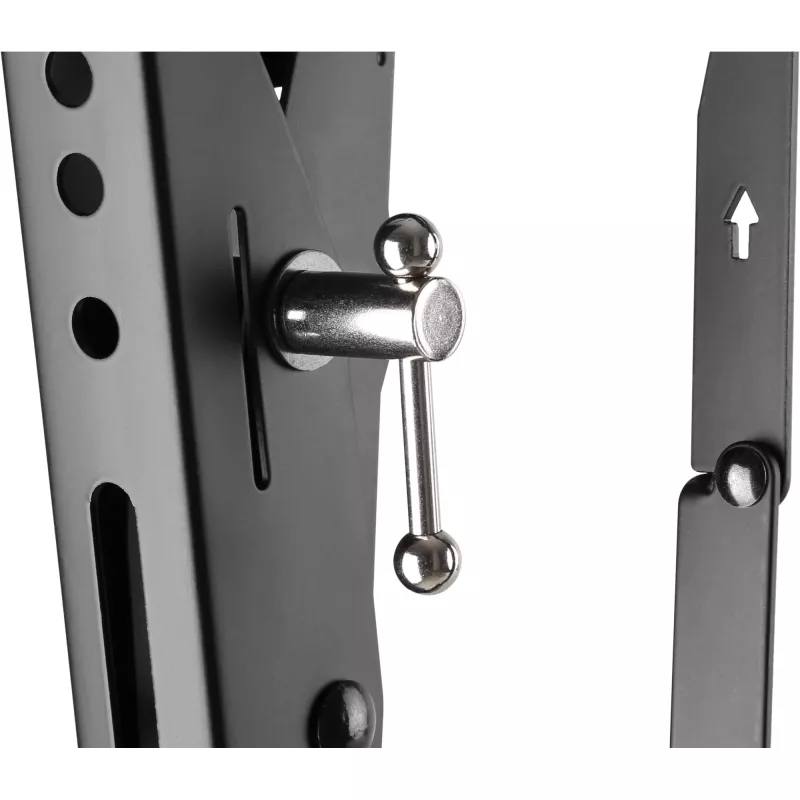

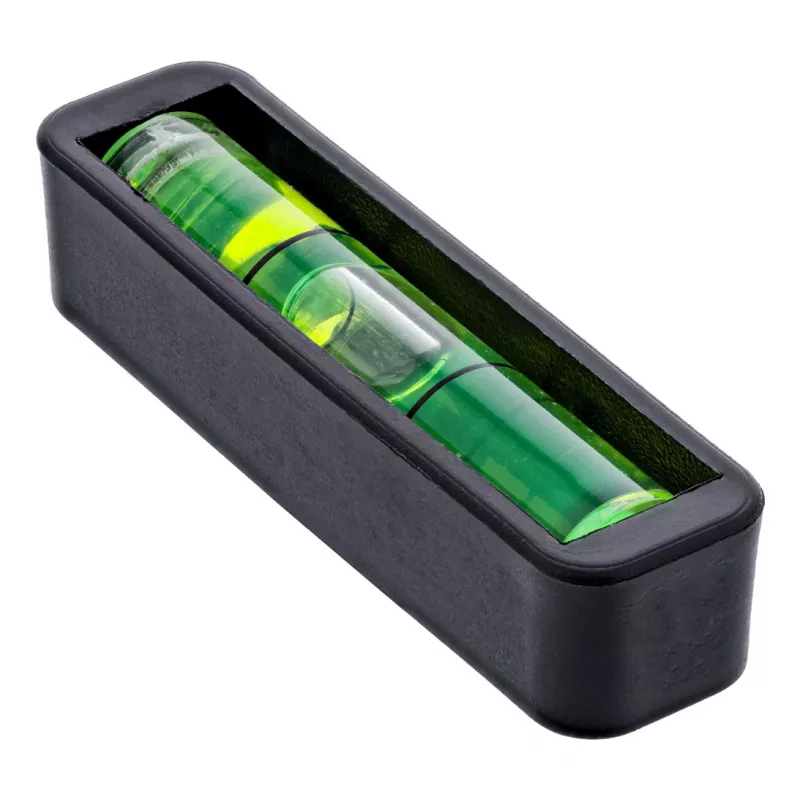

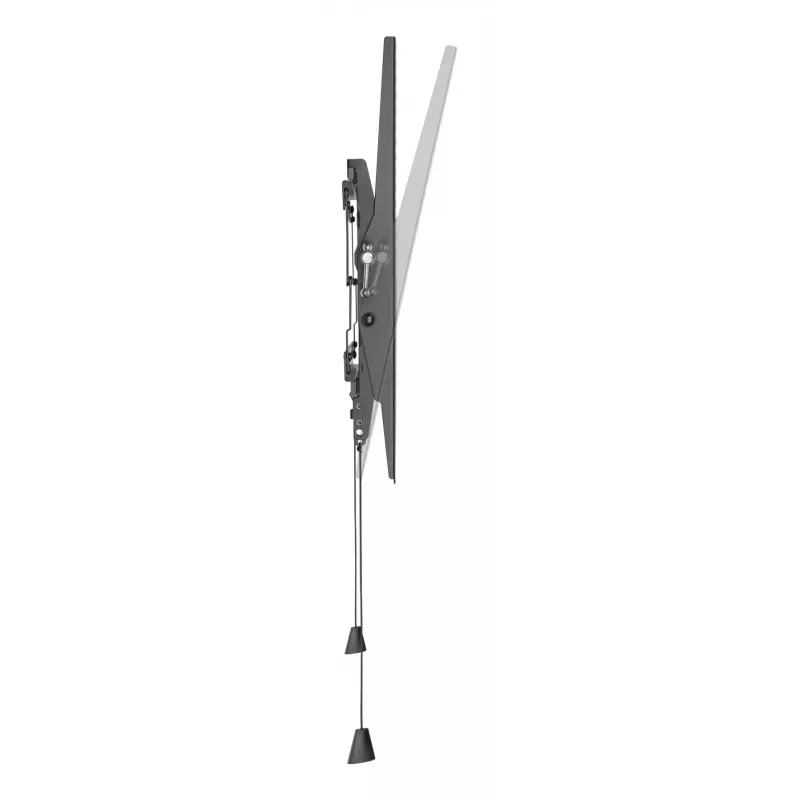

The bracket’s high load capacity of up to 70 kg allows mounting of large and heavy displays, including many curved screens, while remaining firmly supported by the extra sturdy steel construction. Tilt adjustment from +3° to −12° enables fine-tuning of the viewing angle. Installation features such as an integrated spirit level, directional arrows, open wall design for cable routing and tool-free spring locking with quick release simplify and speed up setup. An anti-theft eyelet increases security in public or semi-public environments.

Suitable for

Key specifications

How to use

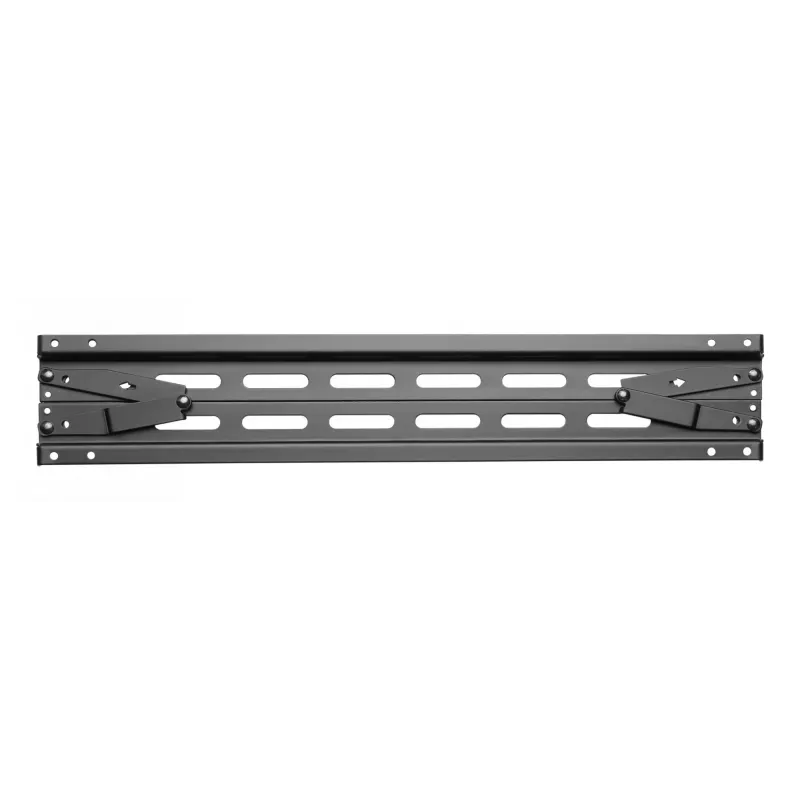

Position the mount at the desired location on a suitable load-bearing wall or compatible support posts and use the integrated spirit level and directional arrows to align it precisely. Secure the wall plate with appropriate fasteners for your wall type, then attach the TV to the bracket following the VESA hole pattern up to 400 × 400 mm. Adjust the tilt within the +3° to −12° range to achieve the correct viewing angle. Use the tool-free spring locking and quick release for safe engagement and fast removal when required. Route cables through the open wall system to keep the installation tidy.

Recommendations

Verify wall type and choose appropriate anchors or bolts rated for the combined weight of the mount and display; professional installation is recommended for heavy or high-mounted displays. Regularly check fasteners and the anti-theft eyelet for secure attachment, and follow the TV manufacturer’s instructions for safe handling and VESA compatibility.
