InLine 32308A switch di rete unmanaged 10G Ethernet (100/1000/10000) nero

Genuine 10GbE performance for professional networks:Eight RJ45 ports with 10GBase-T enable maximum transfer rates for data-intensive applications.
Maximum compatibility thanks to comprehensive standard support:Supports all common IEEE network standards from 10BASE-T to 10GBASE-T, including Auto-MDI/MDI-X.
Robust metal housing with 19" mounting option:Ideal for installation in network cabinets or professional IT environments.
Intelligent data handling with high MAC capacity: 16K MAC addresses, store-and-forward transmission and jumbo frame support for efficient traffic.
Reliable continuous operation with active cooling: The integrated fan ensures stable operating temperatures even under full load.

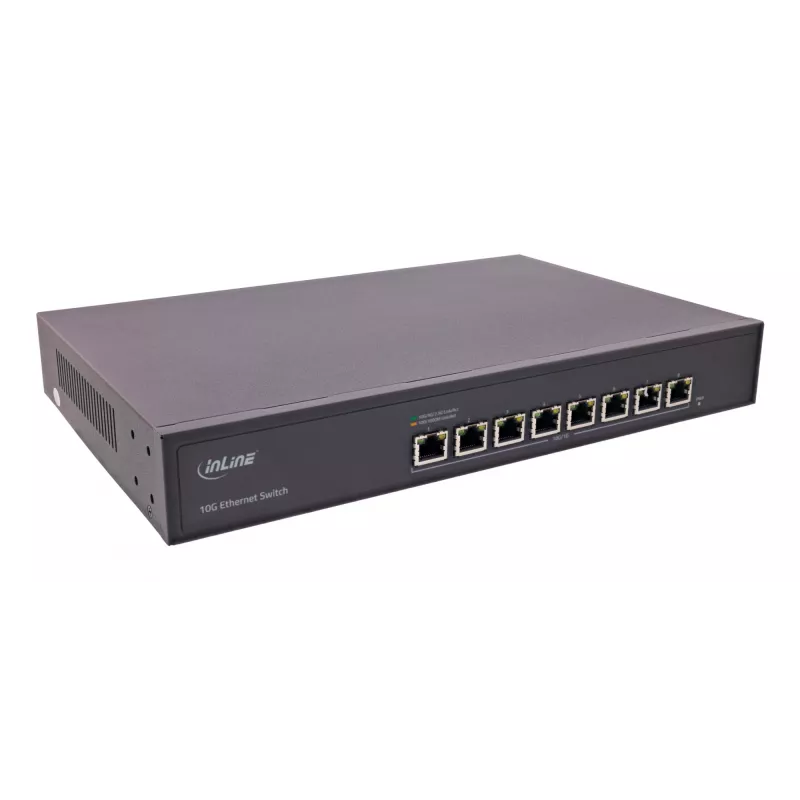

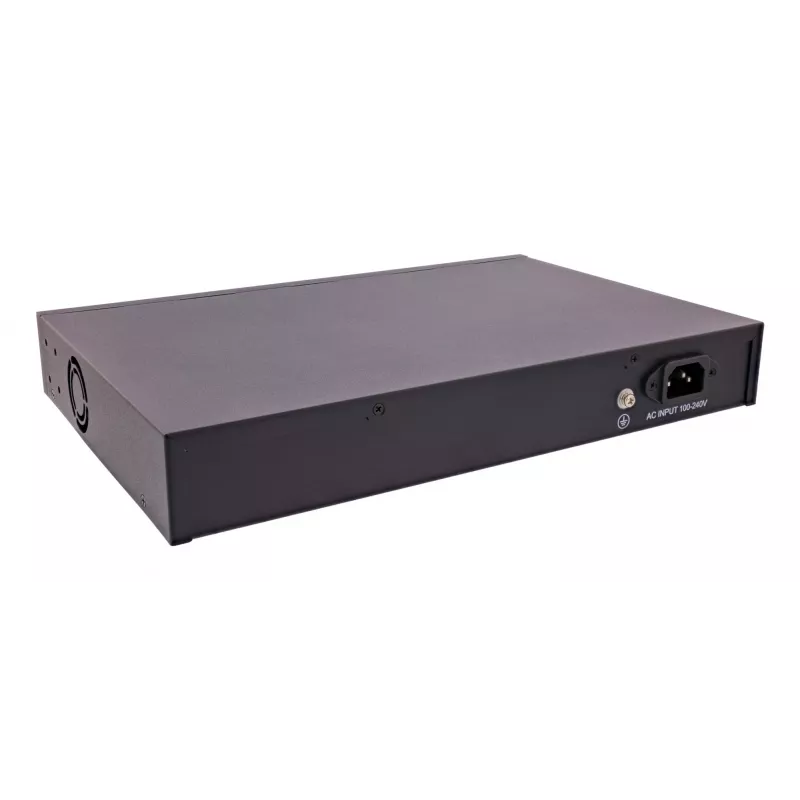

The InLine® 10 Gigabit Network Switch with eight RJ45 ports is the ideal solution for professional users who want to combine high bandwidth requirements with easy integration. With support for common network standards – including 10GBASE-T – as well as Auto-MDI/MDI-X and automatic speed detection, the switch offers maximum flexibility in daily operation. Store-and-forward technology ensures that damaged packets are not forwarded, while a MAC table with 16,000 entries and jumbo frame support efficiently manages even complex network structures. The robust metal housing and 19" rack mounting option make the switch ideal for server rooms, workshops or laboratories. Active ventilation ensures the necessary temperature balance and guarantees stable operation – even under permanently high loads. With a packet buffer of 12 Mbit and a switching capacity of 160 Gb/s, this device represents a future-proof expansion of your network environment.

Chipset: RTL9303
Standards: IEEE 802.3 (Ethernet), IEEE 802.3u (Fast Ethernet), IEEE 802.3ab (Gigabit Ethernet), IEEE 802.3bz (5G Ethernet), IEEE 802.3z (Gigabit Ethernet), IEEE 802.3ae (10G Ethernet), IEEE 802.3x Flow control
Ports: 8x 10GBase-T RJ45, Auto-MDI/MDI-X
LED indicators: Power supply, port status
Network cable: 10BASE-T: UTP Category 3, 4, 5 cable or higher (≤ 100m); 100BASE-TX: UTP Category 5, 5e cable or higher (≤ 100m); 1000BASE-T: UTP Category 5e cable or higher (≤ 100m); 10GBASE-T: UTP Category 6a cable or higher (≤ 100m)
MAC address table: 16K, automatic learning, automatic updates
Jumbo frame supported
Packet buffer: 12Mbit
Packet forwarding rate: 119.04 Mp/s
Transmission type: Store-and-forward
Bandwidth: 160Gbit
VLANs: 1-4094
Dimensions (W x D x H): 320x210x45mm
Weight: approx. 1.8 kg
Power consumption: 100~240V AC, 50/60Hz, 12V DC, 4A
Power consumption: max. 34 watts
Fan: 12V, 0.48W, 4.8 CFM, 4000 rpm, approx. 35dBA, 40x40x20mm
Ambient conditions: Operating temperature 0-40°C, storage temperature -40-70°C, operating humidity 10-90% non-condensing, storage humidity 5-95% non-condensing

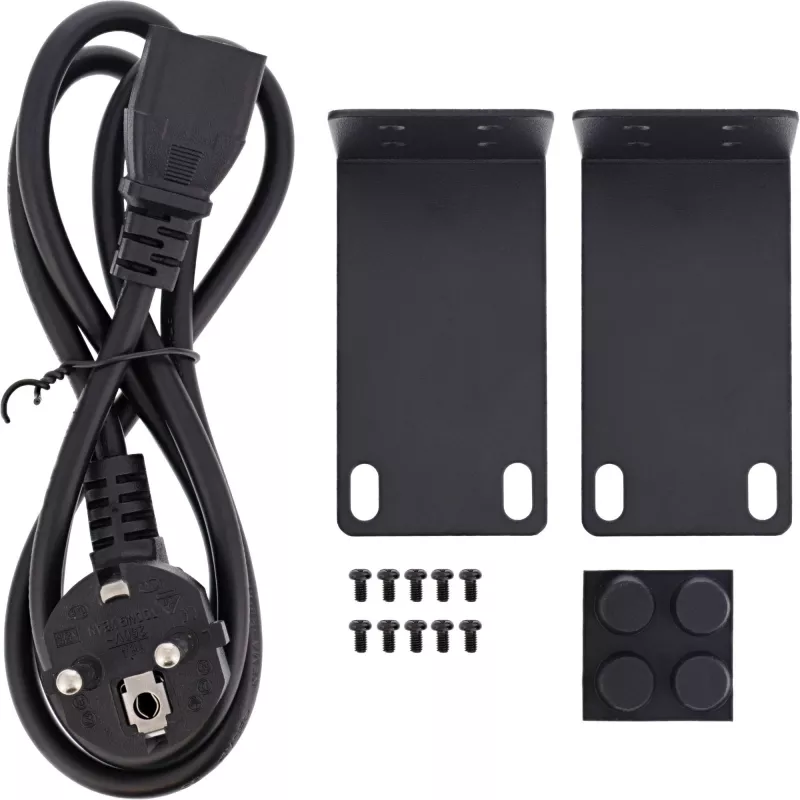

Scope of delivery: 1x InLine® 10 Gigabit network switch; 1x user manual (German/English); 1x power cable; 2x 19" mounting brackets; 10x screws for mounting brackets; 4x rubber feet

InLine 32308A. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: 10G Ethernet (100/1000/10000), Basic switching RJ-45 Ethernet ports quantity: 8. MAC address table: 16000 entries, Switching capacity: 160 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3at, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE.... DC input voltage: 12 V. Power connector: AC-in jack. Rack mounting

How to use

Place the switch on a stable surface or mount it in a rack according to available brackets and space. Connect each 10 Gigabit Ethernet link using appropriate SFP+ or 10GBase‑T cabling as required by your configuration. Attach power and verify link LEDs to confirm physical connectivity. For typical deployments, connect upstream aggregation links to core switches or routers and downstream ports to servers, storage arrays, or other network devices. Monitor link indicators and use existing network management tools to observe traffic and health where applicable.

Recommendations

Use shielded cabling and properly grounded infrastructure for 10 GbE connections to minimize electromagnetic interference. In environments with multiple high‑throughput flows, distribute traffic across ports and enable link aggregation on connected devices when supported to increase resilience and throughput. Place the switch in a ventilated area and ensure ambient temperature remains within equipment specifications for reliable continuous operation.
