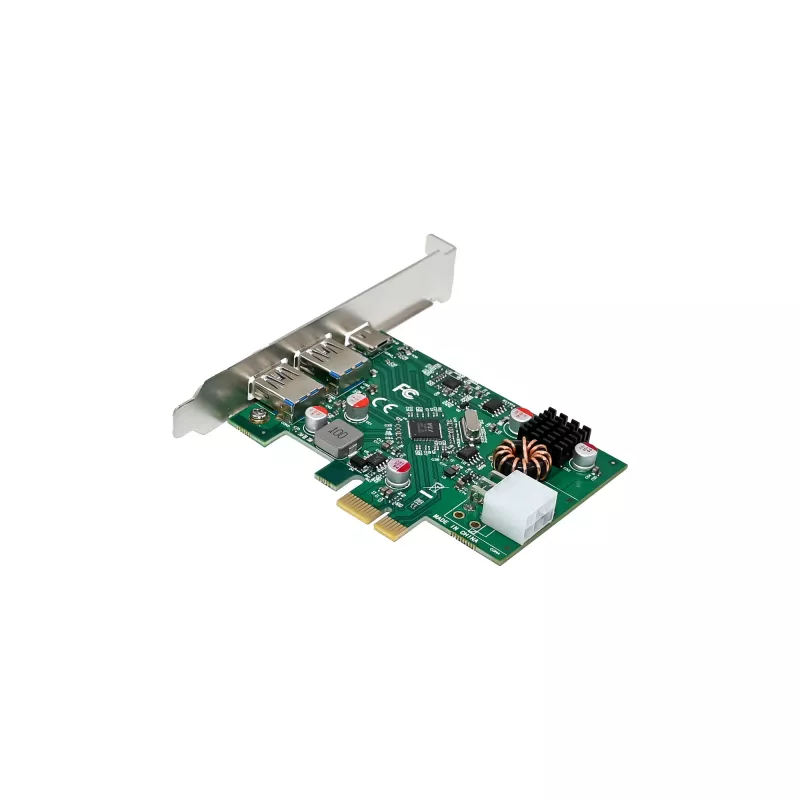

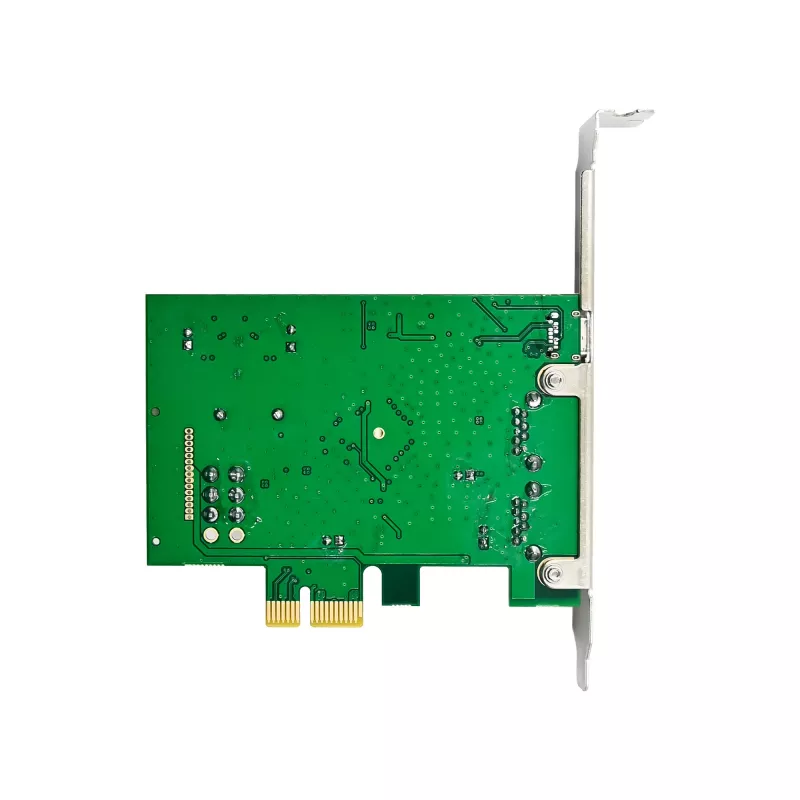

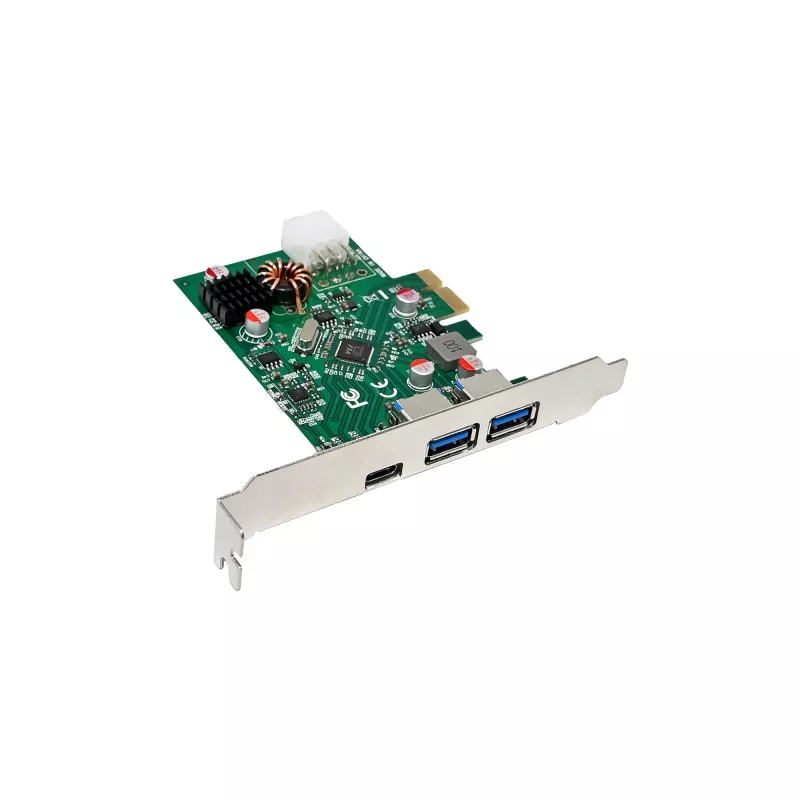

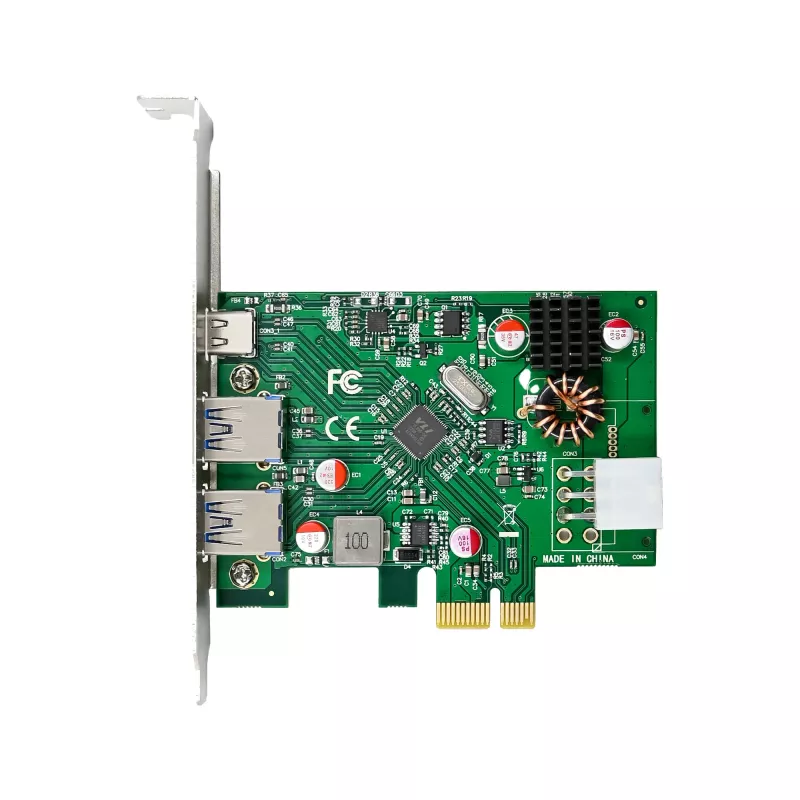

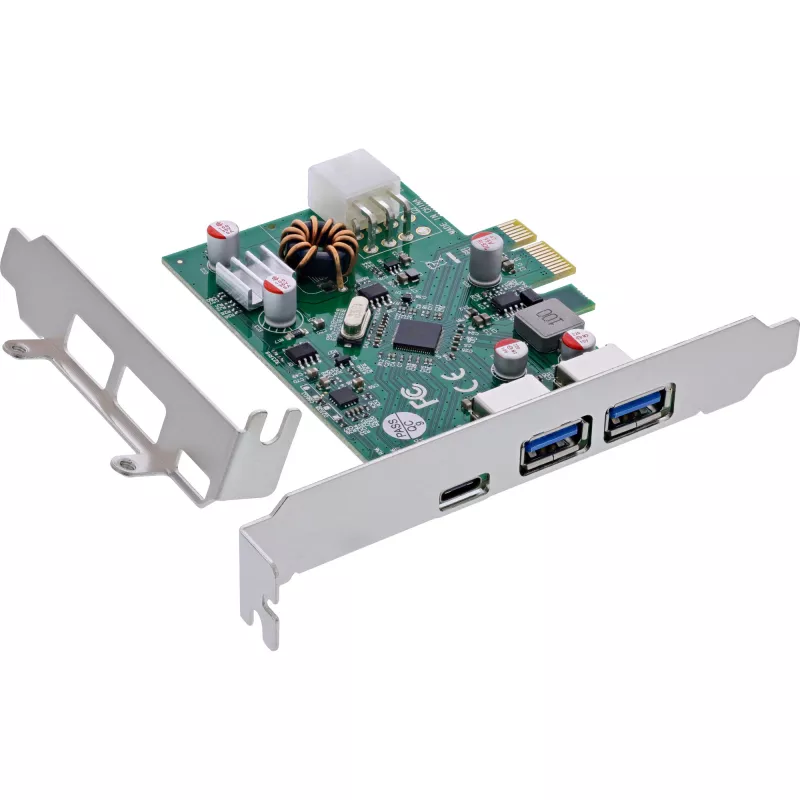

InLine 76661M scheda interfaccia/adattatore interno USB 3.2 Gen 1 (3.1 Gen 1), USB Type-C

Triple USB expansion via PCIe:Two USB-A 3.2 Gen.1 ports and one USB-C port – ideal for mixed peripheral environments.
USB-C with Power Delivery 3.0:Up to 30 W charging power for smartphones, tablets and notebooks – right at your workstation.
High data rates up to 5 Gb/s:For fast file transfer and smooth operation of mass storage devices and USB devices.
6-pin PCIe power connector:Ensures stable power supply – even during intensive use.
Compatible with Windows & Linux:Broad system support, ideal for professional use in mixed infrastructures.

The InLine® 76661M interface card brings modern USB connectivity directly to your workstation, industrial PC or server environment. With two USB-A 3.2 Gen.1 ports and a full-featured USB-C port with Power Delivery 3.0 (30 W charging power), it is ideal for professional users with high demands on data transfer and power supply.
The USB-C port is not only suitable for data communication with modern devices such as docking stations, storage media or adapters – it also supplies power to power-intensive devices such as smartphones, tablets or ultrabooks. The two USB-A ports provide proven interfaces for classic USB peripherals.
The card is based on the stable VIA VL805 chipset, uses PCI Express V2.0 and is additionally powered via a 6-pin PCIe power connector to ensure stable voltage even under full port load.
It is compatible with all common operating systems from Windows XP and Linux from kernel 2.6.x. Ideal for technical workstations, media production, development environments or service providers who want to integrate modern USB technology into existing systems.

Chipset: VIA VL805
Interface: PCI Express V2.0
External connections: 2x USB-A 3.2 Gen.1, 1x USB-C 3.2 Gen.1 with PD3.0
Internal connection: 1x PCIe power (6-pin)
Data rates: 5 Gb/s, 480 Mb/s, 12 Mb/s, 1.5 Mb/s
Power: USB-C max. 30 W (20 V / 1.5 A), USB-A max. 4.5 W (5 V / 0.9 A)
Compatible operating systems: Windows XP or newer, Server 2008 R2 or newer, Linux from kernel 2.6.x
Operating temperature: 0° C – 55° C
Storage temperature: -40° C – 70° C
Humidity: 10% - 90% non-condensing

InLine 76661M. Host interface: PCIe, Output interface: USB 3.2 Gen 1 (3.1 Gen 1), USB Type-C, Host interface gender: Male. Country of origin: China. Data transfer rate (max): 5 Gbit/s. Supplementary power connectors: 1x 6-pin. Windows operating systems supported: Windows 10, Windows 11, Windows 7, Windows 8, Windows Vista, Windows XP, Linux operating systems supported: Kernel 2.6, Kernel 2.6.31, Kernel 2.6.33, Kernel 3.12, Kernel 3.17, Kernel 3.3, Kernel 4.6.4,..., Server operating systems supported: Windows Server 2008 R2, Windows Server 2012, Windows Server 2013, Windows Server 2016, Windows...

How to use

Install the adapter into an available PCIe slot on the motherboard, secure the card in the chassis, and connect the 6-pin supplementary power connector to the system power supply if required for stable operation. After booting, install any necessary drivers according to your Windows or Linux distribution if they are not provided automatically. Connect USB devices to the external USB-A or USB-C ports; use the USB-C port for both data transfer and PD charging when needed.

Recommendations

Ensure the system power supply provides the required current for connected devices when using high-power peripherals; connect the included 6-pin power cable to avoid power-related interruptions. Verify driver compatibility with your operating system before deployment.
