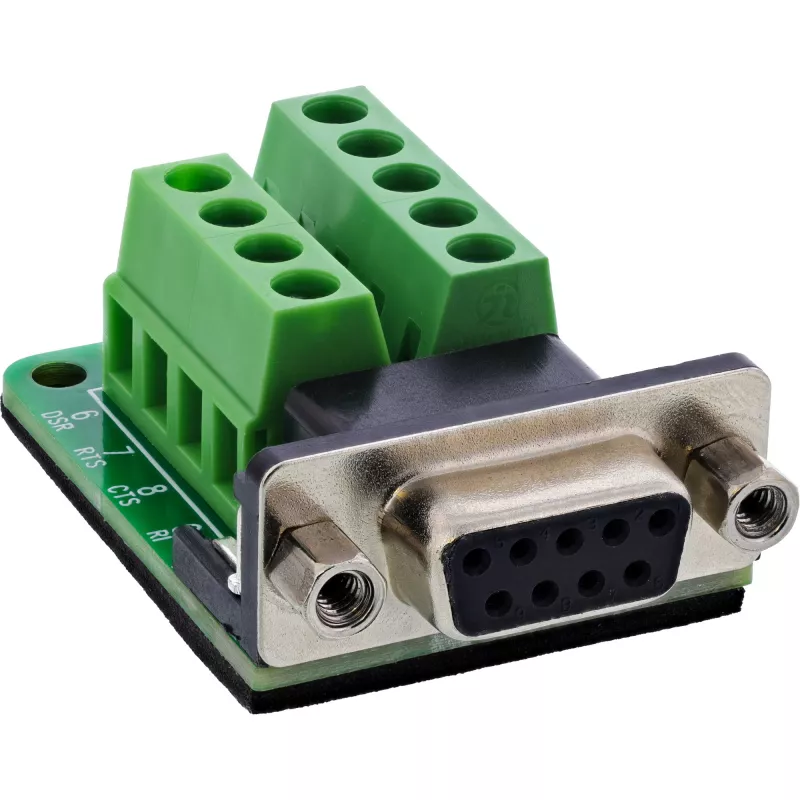

InLine 92501E Connettore cavo morsettiera / D-Sub 9 nero, verde

Time savings during installation:Quick wiring via screw terminals for 12–22 AWG – tool-assisted with flat-head screwdriver ≤ 2.5 mm.
Stable connection thanks to screw lock:The D-Sub-9 socket is equipped with an integrated screw lock and ensures a secure mechanical connection to the matching socket – even in the event of vibration or movement.
Versatile use in industry:Ideal for automation, machine and plant engineering, control cabinet installations, and mobile test and service applications.
Compact, 2-row design: Measuring 45.5 × 31 × 16 mm, the terminal block offers a space-saving arrangement – especially in dense wiring of Sub-D interfaces.
High signal quality:An insulation resistance of ≥ 10 MΩ at 300 V DC and a rated current of 1 A per pin ensure reliable signal transmission – even in continuous industrial applications.

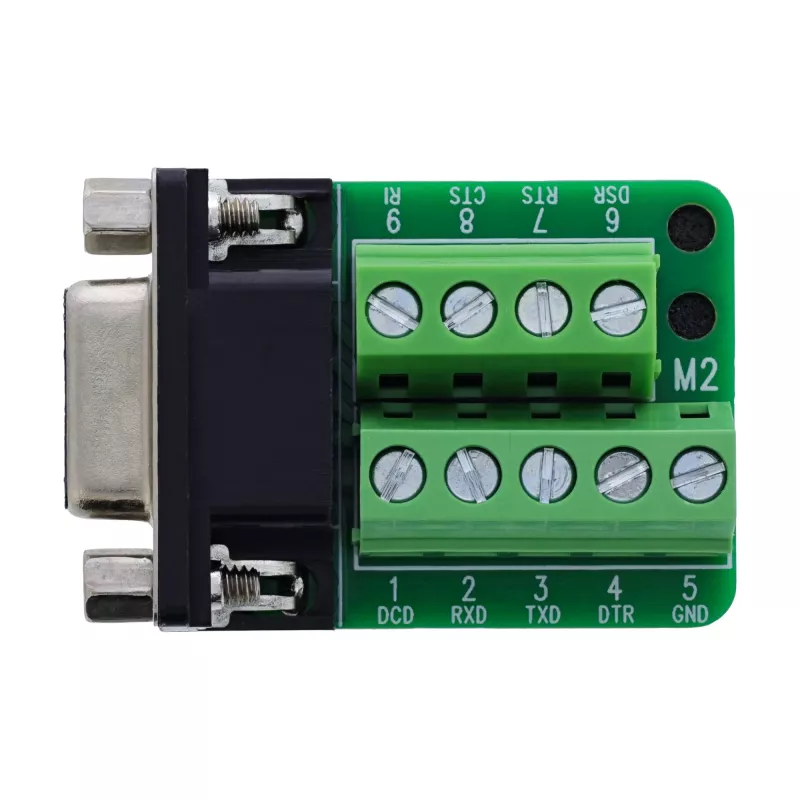

The InLine® terminal block with D-Sub 9 socket in a 2-row design is designed for professional wiring solutions in control cabinet and device construction. The screw terminals with a 5.0 mm pitch enable the secure connection of single wires in the 12–22 AWG range. Assembly is tool-assisted using a flat-blade screwdriver with a blade width ≤ 2.5 mm.
The D-Sub socket can be securely screwed to the mating connector via an integrated screw lock, thus ensuring a vibration-proof connection. An EVA insulating layer provides protection when mounting on conductive surfaces. The compact 2-row design makes the connection block particularly suitable for industrial installations with high packing density – e.g., in control cabinets, machines, or mobile service units.

D-Sub 9 socket:2-row, with integrated screw lock
Connection technology:Screw terminal, 5.0 mm pitch
Connection range:12–22 AWG
Actuation:With flat-blade screwdriver ≤ 2.5 mm
Rated current: 1 A per pin
Max. operating voltage:100 V between two signals
Insulation resistance:≥ 10 MΩ @ 300 V DC
Operating temperature:–10°C to +70°C
Insulation layer:EVA insulation on underside
Dimensions:approx. 46 × 31 × 18 mm (L × W × H)

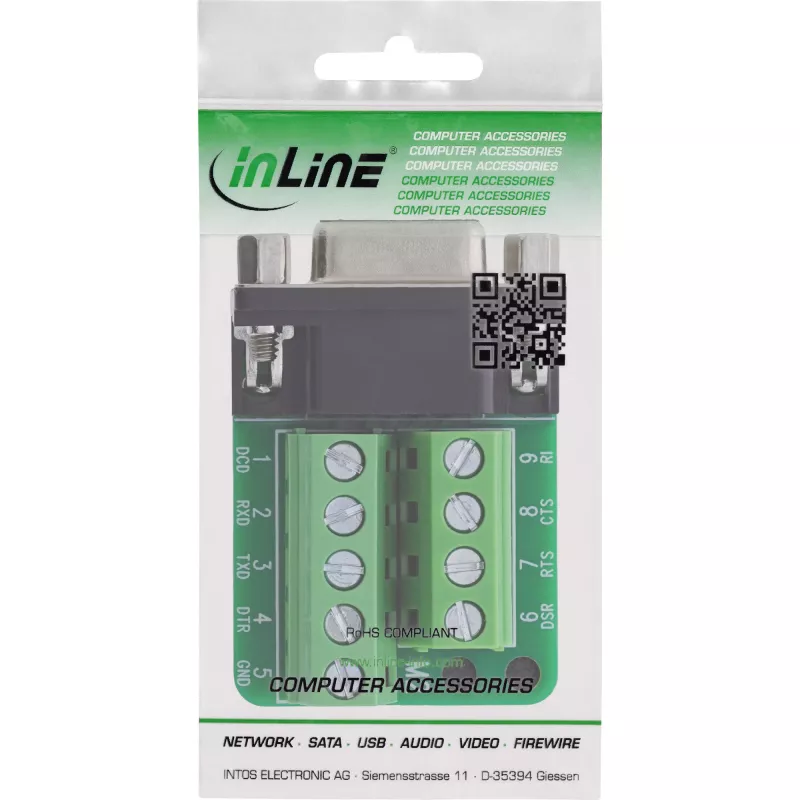

InLine 92501E. Connector(s): Terminal block / D-Sub 9, Product colour: Black, Green, Connector gender: Female/Female. Compliance certificates: RoHS, TÜV mark. Dimensions (WxDxH): 31 x 46 x 18 mm, Weight: 22 g, Width: 31 mm. Quantity per pack: 1 pc(s), Package width: 100 mm, Package depth: 165 mm. Country of origin: Taiwan
