InLine 92504G Connettore cavo USB-A / morsettiera, 5 poli nero, verde

Time savings during installation: Quick wiring via screw terminals for 16–26 AWG – tool-assisted with flat-head screwdriver ≤ 2.5 mm.
Integrated USB cable for flexible applications: The 1-meter connection cable connects systems immediately – without additional accessories or soldering.
Clear terminal assignment & secure contact: 5-pin terminals with pressure plate, clearly labeled 1: –, 2: D+, 3: D–, 4: +, 5: S (shield) – ideal for service, testing, and prototyping.
Versatile use in industry:For fast connection of USB 2.0 signals in test setups, laboratories, commissioning, or troubleshooting – without soldering.
High signal quality:An insulation resistance of ≥ 10 MΩ at 300 V DC and a rated current of 0.7 A per pin ensure reliable signal transmission – even under continuous load and in industrial environments.

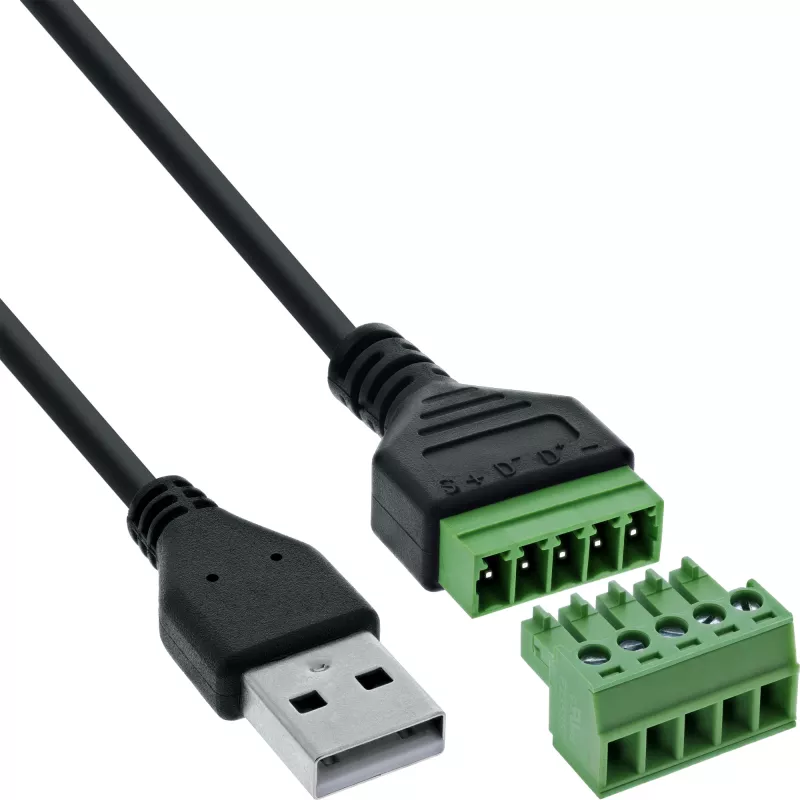

The InLine® USB‑A 2.0 terminal block adapter with permanently integrated connection cable combines a plug-in USB connection with the flexibility of open signal wiring. The USB‑A plug is directly connected to a 5‑pin screw terminal block – ideal for test stations, diagnostic devices, embedded systems, or laboratory applications.

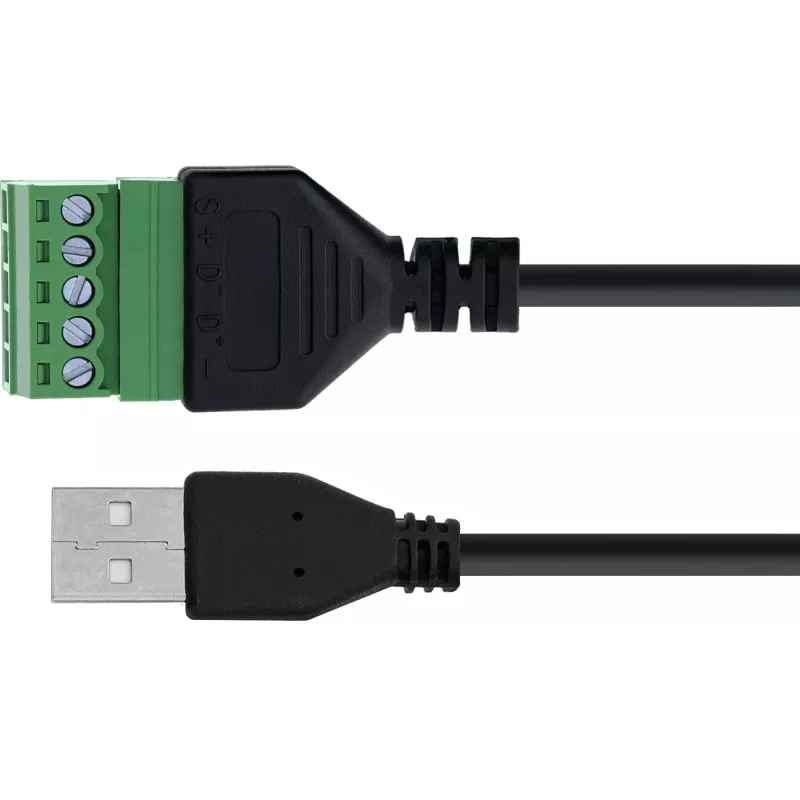

The terminals are clearly labeled (1: ground, 2: D+, 3: D–, 4: voltage, 5: shield) and enable easy and reliable signal assignment. The terminals with a 5.0 mm grid size support wires in the range of 16–26 AWG. Wiring is tool-assisted with a flat-head screwdriver ≤ 2.5 mm.
The approx. 1 m long USB cable saves additional wiring time and allows immediate use without adapters or soldering. An EVA insulating layer protects during installation on conductive surfaces.

USB interface:USB‑A 2.0, plug
Cable length:approx. 1 m (PVC, permanently integrated)
Number of poles / assignment:5 terminals / 1: – / 2: D+ / 3: D– / 4: + / 5: S
Connection technology:Screw terminal with pressure plate, 5.0 mm pitch
Connection range:16–26 AWG
Actuation:With flat-blade screwdriver ≤ 2.5 mm
Rated current: 0.7 A per pin
USB operating voltage (VBUS):5 V DC
Test voltage (insulation resistance):300 V AC / 1 minute
Insulation resistance:≥ 10 MΩ @ 300 V DC
Operating temperature:–20 °C to +105 °C
Insulation layer:EVA insulation on underside
Dimensions:Terminal block approx. 50 × 21.2 × 18.4 mm (L × W × H)

InLine 92504G. Connector(s): USB-A / Terminal block, 5-pin, Product colour: Black, Green, Connector gender: Male/Female. Compliance certificates: RoHS, TÜV mark. Dimensions (WxDxH): 20 x 1000 x 14 mm, Weight: 34 g, Cable length: 1 m. Quantity per pack: 1 pc(s), Package width: 100 mm, Package depth: 165 mm. Country of origin: Taiwan

How to use

Strip the USB signal wires to the recommended length, insert conductors into the corresponding labeled terminals (1–5) and tighten the pressure plate screws using a flat‑head screwdriver ≤ 2.5 mm. Connect the USB‑A plug to the host or device. The permanently integrated cable avoids the need for additional adapters or soldering. Ensure the EVA insulating layer contacts any conductive surface to reduce risk of shorting during placement.

Recommendations

Use the adapter for temporary or test connections; for permanent installations follow device manufacturer guidelines. Do not exceed the rated current of 0.7 A per pin and keep operating temperature within –20 °C to +105 °C. Verify correct terminal assignment before powering the USB VBUS (5 V DC).
