InLine 92505A Connettore per cavi RJ45 8P8C / morsettiera 9 poli verde

Time savings during installation:The screw terminal block for 8 wires plus shield allows for quick wiring – tool-assisted with a flat-head screwdriver ≤ 2.5 mm, suitable for 16–26 AWG.
Integrated RJ45 interface for structured wiring: The standardized RJ45 socket (8P8C) enables direct connection to network components – ideal for service work or in test environments.
Space-saving DIN rail mounting:The housing is designed for quick mounting on DIN rails – particularly suitable for structured installations in control cabinets.
Versatile use in industry:For applications in network diagnostics, machine communication, prototyping, control technology, or embedded systems.
High signal quality:An insulation resistance of ≥ 10 MΩ at 300 V DC and a rated current of 1.0 A per pin ensure reliable and secure data transmission – even under continuous load in industrial environments.

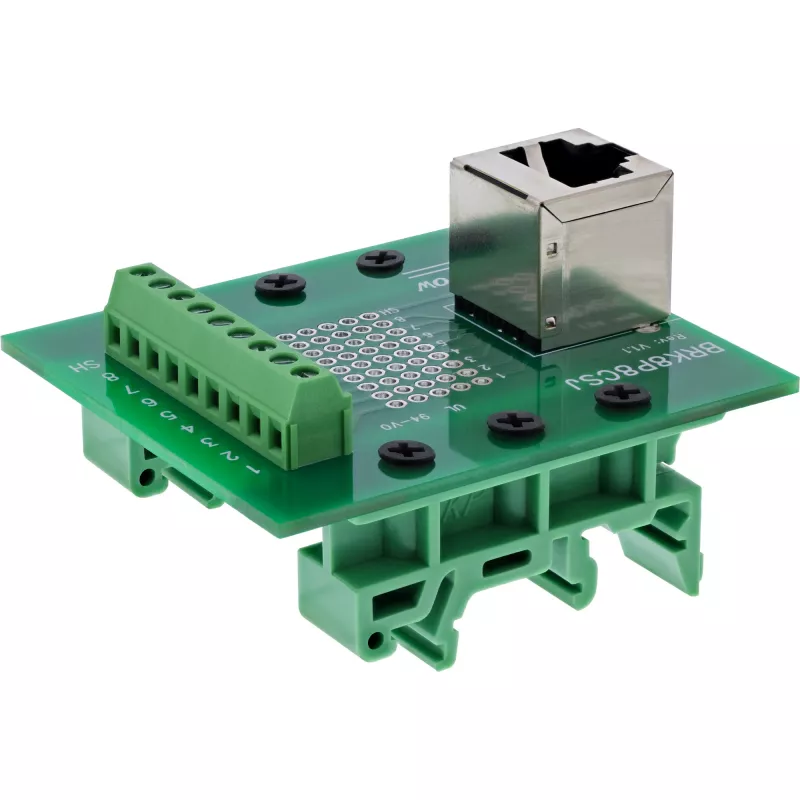

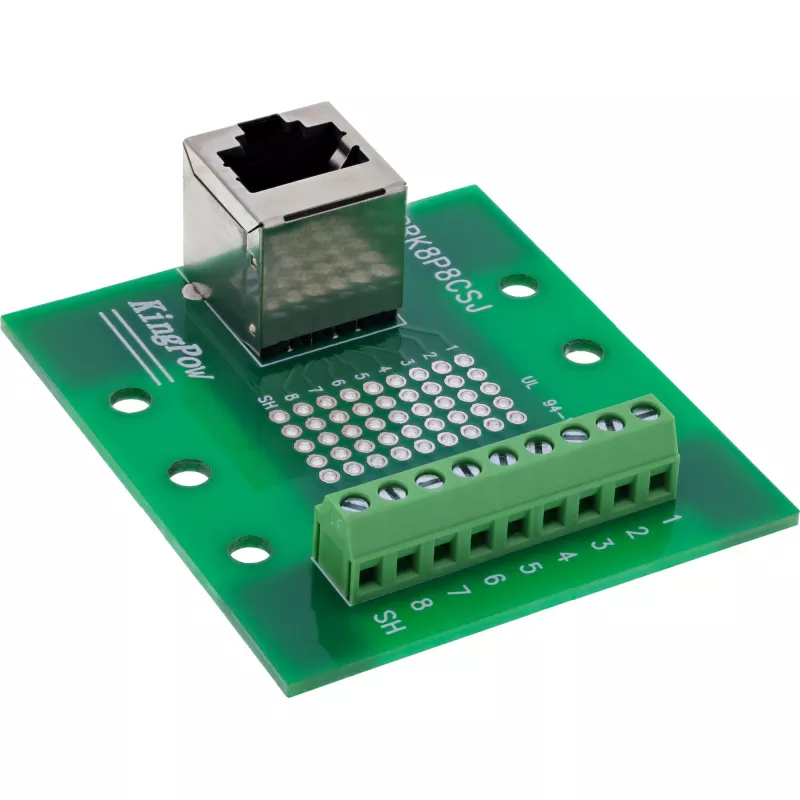

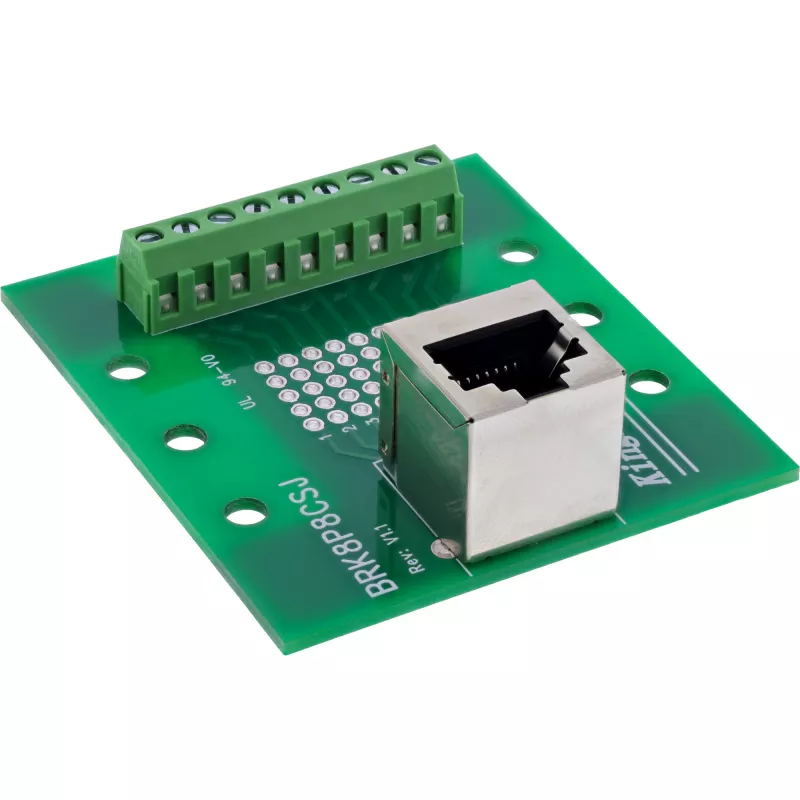

The InLine® RJ45 terminal block with upward-facing socket and side screw terminal strip has been developed for professional use in control cabinets or laboratories. The 8-pin RJ45 socket (8P8C) is firmly integrated into the housing and connects directly to the internal terminal strip.
The eight wires and the additional shield contact can be connected quickly and clearly via the screw terminals accessible from the side. The terminals support stranded wires in the range of 16–26 AWG and can be reliably connected with a flat-blade screwdriver ≤ 2.5 mm.

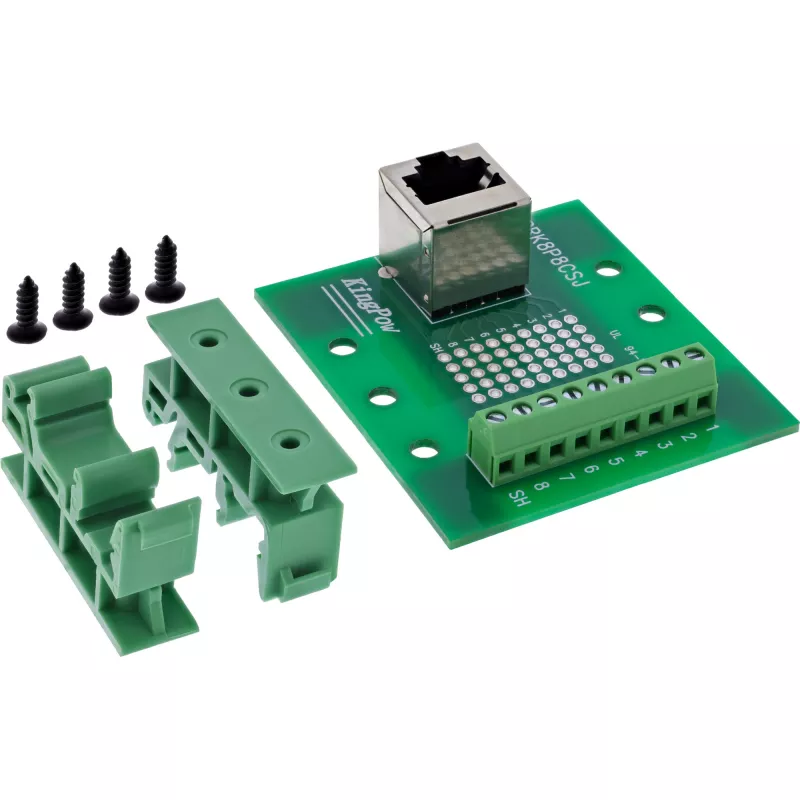

The pre-assembled DIN rail mounting is ideal for structured installations and test setups. 100% tested for short circuits and miswiring.

RJ45 interface:8P8C socket (facing upwards)
Screw terminal strip:9 terminals (8 signals + shield), 5.0 mm pitch, with pressure plate
Connection range:16–26 AWG
Actuation:With flat-blade screwdriver ≤ 2.5 mm
Rated current:1.0 A per pin
Max. operating voltage:100 V between two signals
Insulation resistance:≥ 10 MΩ @ 300 V DC
Operating temperature:–20 °C to +70 °C
Insulation layer:EVA insulation on underside
Mounting:Prepared for DIN top-hat rail
Dimensions:approx. 60 × 54 × 20 mm (W × H × D)

InLine 92505A. Connector(s): RJ45 8P8C / Terminal block 9 terminals, Product colour: Green, Connector gender: Female/Female. Compliance certificates: RoHS, TÜV mark. Dimensions (WxDxH): 54 x 60 x 20 mm, Weight: 21 g, Width: 54 mm. Quantity per pack: 1 pc(s), Package volume: 100 cm³. Country of origin: Taiwan

How to use

Mount the InLine 92505A on a DIN top-hat rail in the control cabinet or test rack. Insert an RJ45 plug into the upward-facing 8P8C socket to connect to standard network devices. For hardwired connections, strip and prepare stranded conductors (16–26 AWG), place conductors into the corresponding screw terminals (eight signal contacts plus shield) and secure them using a flat-head screwdriver with a blade width suitable for ≤ 2.5 mm. Verify connections and apply power only after checking for correct wiring.

Recommendations

Use the adapter primarily for service, testing and temporary wiring changes. Ensure conductor sizes are within the specified 16–26 AWG range and tighten terminals with a properly sized flat-head screwdriver. Avoid exposing the module to temperatures outside –20 °C to +70 °C and observe the 100 V maximum voltage rating between signals.
