InLine 92505D Connettore per cavi 2x RJ45 8P8C / 2x morsettiera 9 morsetti verde

Time savings during installation:Two screw terminal blocks for 8 wires plus shield each enable fast, solder-free wiring – tool-assisted with a flat-head screwdriver ≤ 2.5 mm, suitable for 16–26 AWG.
Dual RJ45 interface with separate signal routing:Two standardized RJ45 sockets (8P8C) are aligned upwards – ideal for structured network wiring where space is limited in depth.

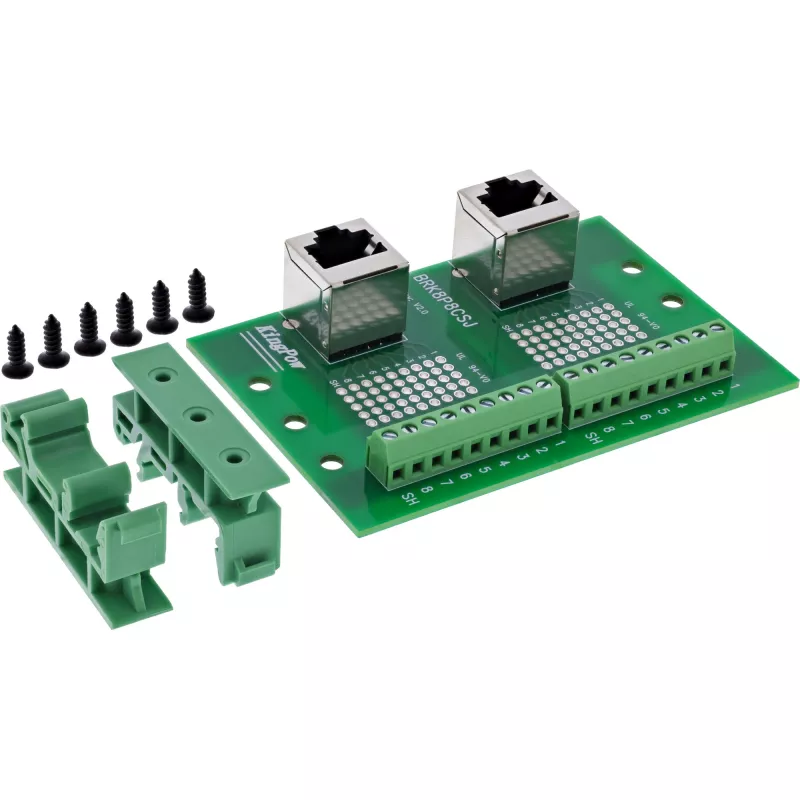

Standard-compliant DIN rail mounting:The housing is prepared for DIN mounting rails and allows space-saving and secure integration into control cabinets.
Suitable for parallel Ethernet lines:Perfect for industrial test setups, redundancy lines, or structured signal distribution in control and test environments.
High signal quality:An insulation resistance of ≥ 10 MΩ at 300 V DC and a rated current of 1.0 A per pin ensure reliable and secure data transmission – even under continuous load in industrial environments.

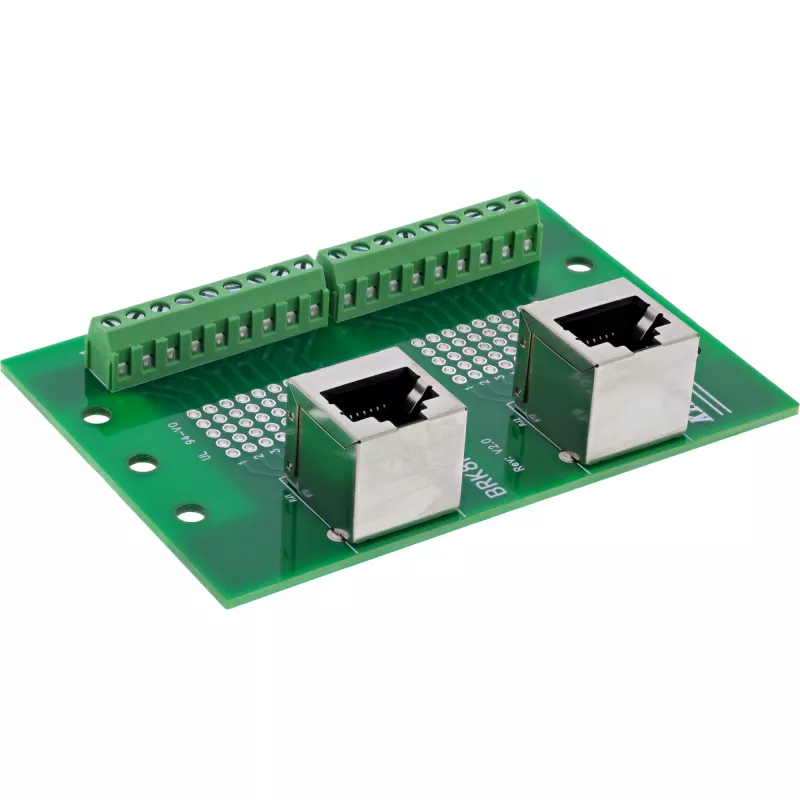

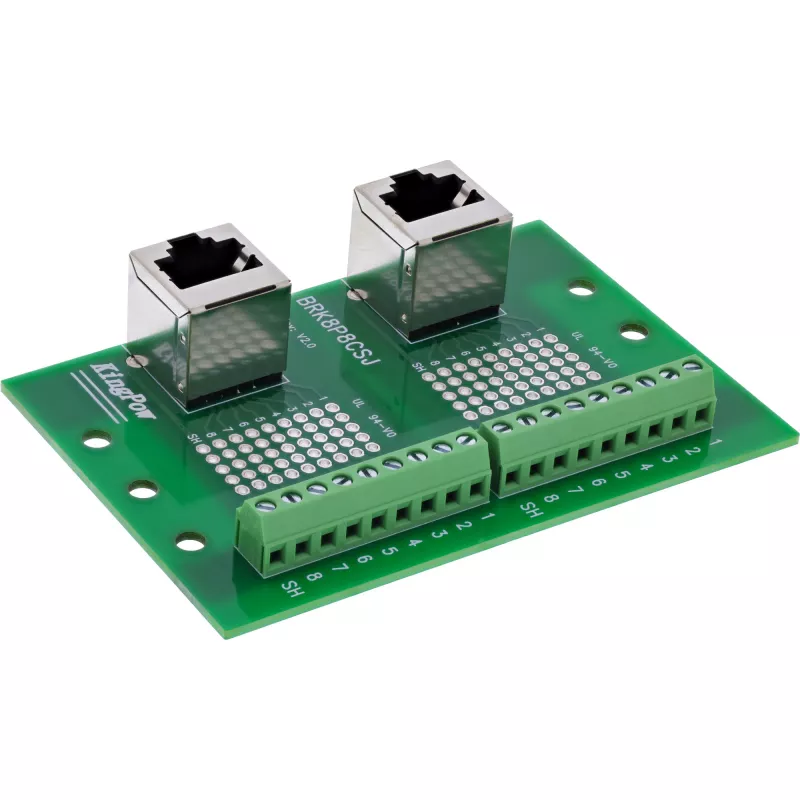

The InLine® RJ45 terminal block with two vertically aligned sockets (8P8C) enables structured, space-saving Ethernet wiring in industrial environments. Each RJ45 socket is fully connected via a separate 9-pin screw terminal strip (8 signals + shield) – ideal for parallel network signals, redundancy paths, or test connections.
The screw terminals are accessible from the side, numbered, and support wires in the range of 16–26 AWG. Wiring is quick and tool-assisted using a flat-blade screwdriver ≤ 2.5 mm.

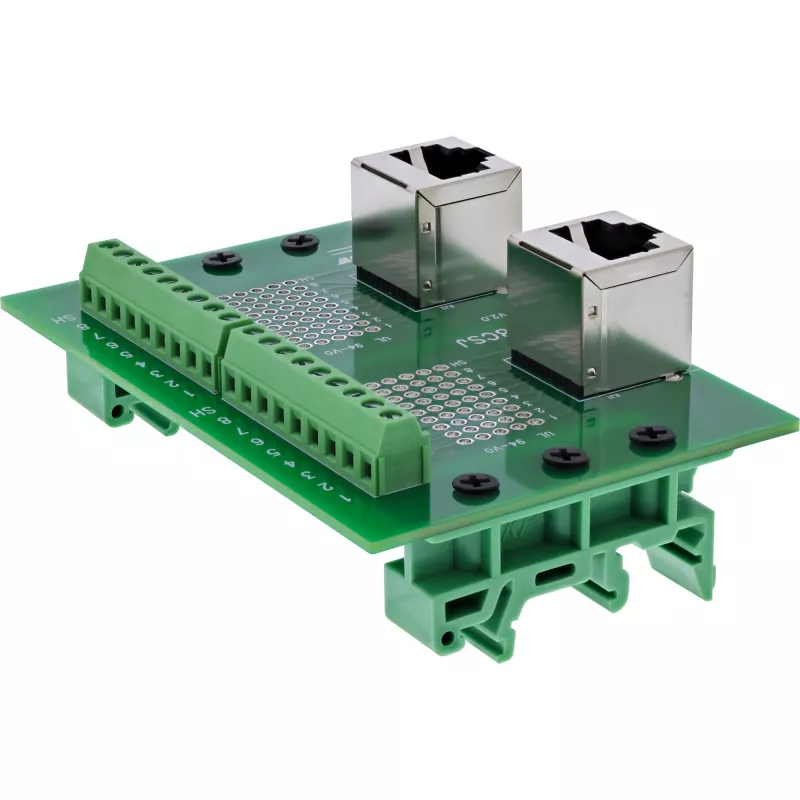

Thanks to the pre-mounted DIN rail clip, the module is immediately ready for standard-compliant integration in the control cabinet or distribution box. The robust design and tested short-circuit and miswiring protection ensure reliable use in continuous industrial operation.

RJ45 interface:2× 8P8C socket (facing upwards)
Screw terminal strip:2x 9 terminals (8 signals + shield), grid dimension 5.0 mm, with pressure plate
Connection range:16–26 AWG
Actuation:With flat-blade screwdriver ≤ 2.5 mm
Rated current:1.0 A per pin
Max. operating voltage:100 V between two signals
Insulation resistance:≥ 10 MΩ @ 300 V DC
Operating temperature:–20 °C to +70 °C
Insulation layer:EVA insulation on underside
Mounting:Prepared for DIN top-hat rail
Dimensions:approx. 60 × 90 × 17 mm (W × H × D)

InLine 92505D. Connector(s): 2x RJ45 8P8C / 2x Terminal block 9 terminals, Product colour: Green, Connector gender: Female/Female. Compliance certificates: RoHS, TÜV mark. Dimensions (WxDxH): 60 x 90 x 17 mm, Weight: 38 g, Width: 60 mm. Quantity per pack: 1 pc(s), Package volume: 100 cm³. Country of origin: Taiwan

How to use

Mount the adapter onto a standard DIN top-hat rail using the pre-mounted clip. Route the Ethernet cables into the upward-facing RJ45 sockets. For wiring to the screw terminals, strip the conductor to appropriate length, insert each conductor into the numbered terminal (8 signals + shield) and secure with a flat-head screwdriver (≤ 2.5 mm). Verify correct pair assignment to match the RJ45 pinout and ensure the shield is connected where required. After wiring, check connections for continuity and secure mounting in the control cabinet.

Recommendations

Use the adapter for temporary joins, test connections, or redundancy lines rather than as a permanent field termination. Ensure wire gauge is within 16–26 AWG and keep operating voltage within specified limits. Regularly inspect connections in continuous industrial operation to maintain signal integrity.
