InLine Adattatore 9 pin Sub-D maschio RJ45 femmina metallizzato 68889M

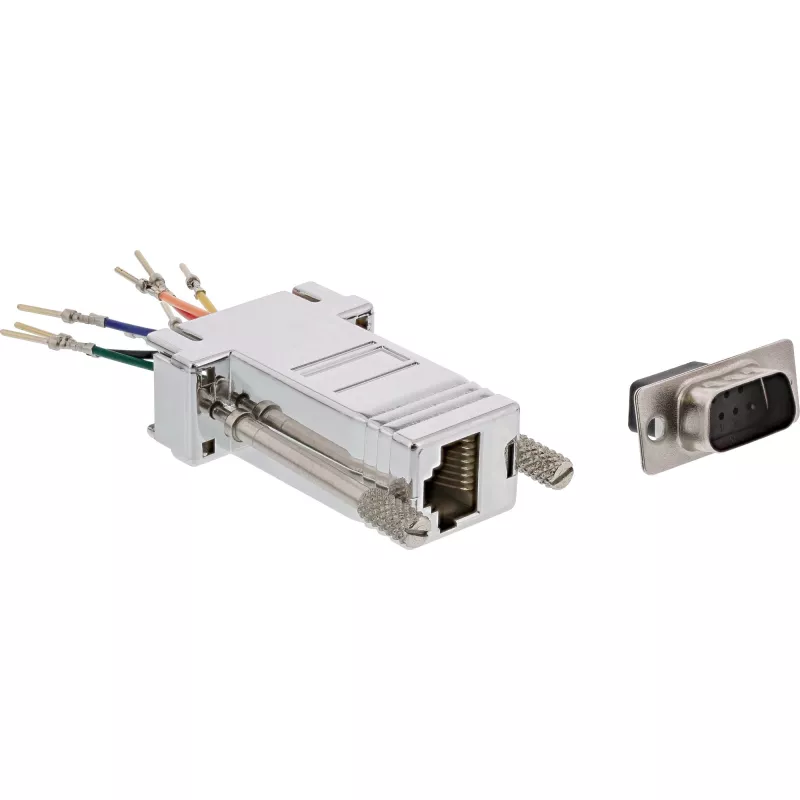

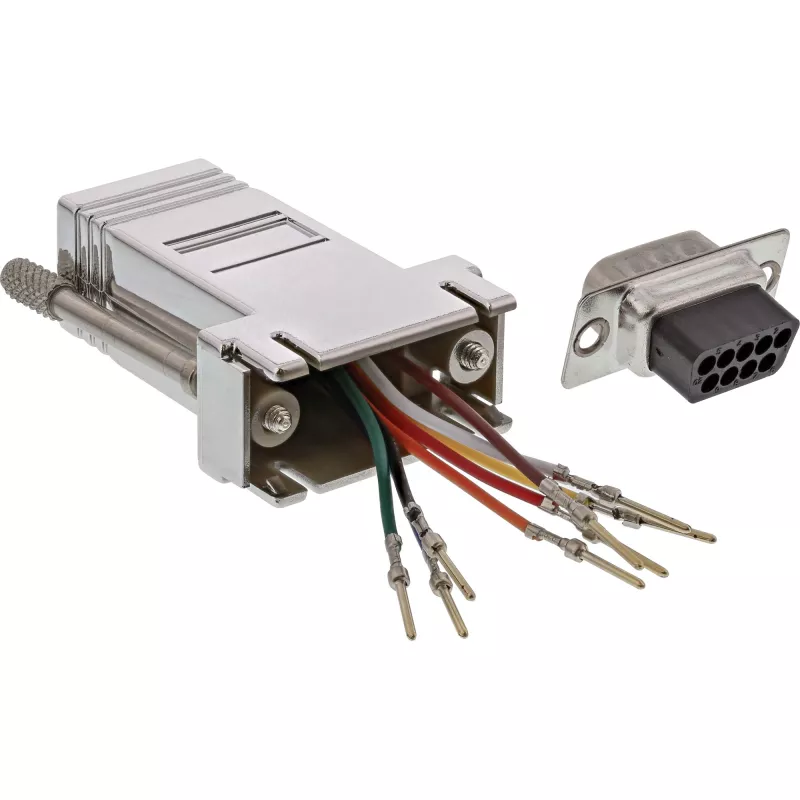

The InLine Adapter 9 Pin Sub-D male to RJ45 female (68889M) is a compact interface adapter with a metal-coated plastic housing and a female RJ45 socket. It provides a simple means to connect devices with a 9‑pin Sub‑D male connector to an RJ45 terminated cable or device. Pins on the Sub‑D plug are not fixed and can be assigned as required by the user or system.

Advantages

The metal-coated housing offers enhanced mechanical protection compared to plain plastic, while the compact form factor saves space in confined installations. The adapter’s design supports flexible pin assignment on the 9‑pin Sub‑D contact, allowing adaptation to different signal configurations. A standard RJ45 female socket ensures compatibility with common network and patch cables.

Suitable for

• Converting a 9‑pin Sub‑D connection to an RJ45 cable
• Use in industrial or test setups requiring custom pin mappings
• Temporary or semi‑permanent connections where a compact adapter is needed

Key specifications

• Model: InLine 68889M
• Connector A: 9‑pin Sub‑D (male) — pins not fixed, user-assignable
• Connector B: RJ45 (female)
• Housing: metal-coated plastic
• Colour: Grey
• Brand: InLine
• Category: Cable interface and gender adapters
• EAN: 4043718092109

How to use

Insert the 9‑pin Sub‑D male plug into the adapter and secure any retention screws if applicable. Plug an RJ45 cable into the female RJ45 socket. Assign the Sub‑D pin connections according to the wiring scheme required by your equipment; because pins are not pre‑wired, verify continuity and mapping with a multimeter or wiring diagram before applying power or signals.

Recommendations

Check the pin assignment and signal compatibility before use. Avoid exposing the adapter to heavy mechanical stress or moisture despite the metal coating. For permanent installations, consider using fixed‑wired adapters or a custom cable assembly to ensure long‑term reliability.
