InLine® adattatore DC, 3,5 x 1,35 mm, connettore maschio/femmina, angolare, bianco

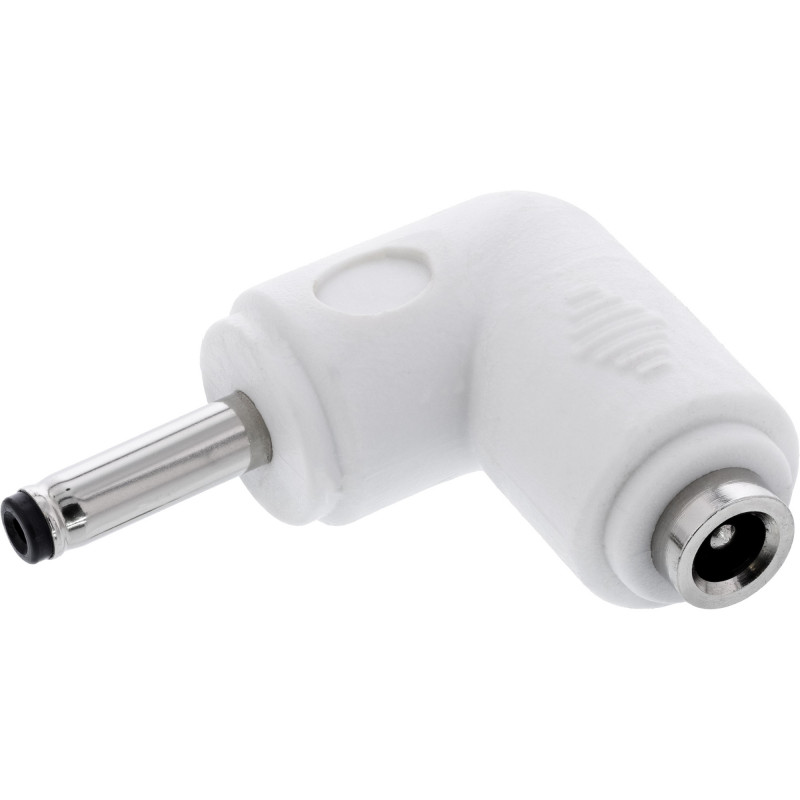

The InLine® DC adapter with 3.5 x 1.35 mm plug and socket features an angled design that directs the connected cable to the side, reducing space required in front of the device connection. It connects a 3.5 x 1.35 mm DC male connector to a DC female socket of the same size, allowing an existing power connection to be extended without replacing the cable. Ideal for confined installation spaces, the 90° design facilitates cable routing behind devices, close to walls, or within compact enclosures.

Key features

• Angled DC adapter for space-saving and tidy cable management
• Connects a 3.5 x 1.35 mm DC male connector to a DC female socket of the same size
• 90° design facilitates cable routing behind devices, close to walls, or within compact enclosures
• Passive adapter rated for 12 V, maximum 2 A, and up to 24 W
• Does not alter voltage or current of the connection
• Easy to retrofit between a compatible power supply and device connection

Specifications

• Brand: InLine®
• MPN: 26899G
• Product colour: White
• Connection 1: DC male plug
• Connection 2: DC female socket
• Connector size: 3.5 x 1.35 mm
• Type: Angled
• Operating voltage: 12 V
• Maximum operating current: 2 A
• Maximum power: 24 W
• Housing material: PVC
• Metal sleeves: Nickel-plated
• Signal: Power
• Country of origin: China
• Customs tariff number: 8536699099
• EAN Barcode: 4043718350063
• Manufacturer information: INTOS ELECTRONIC AG, Siemensstrasse 11, 35394 Gießen, Deutschland, [email protected]
