InLine® adattatore DC, 5,5 x 2,1 mm, connettore maschio/femmina, angolare, bianco

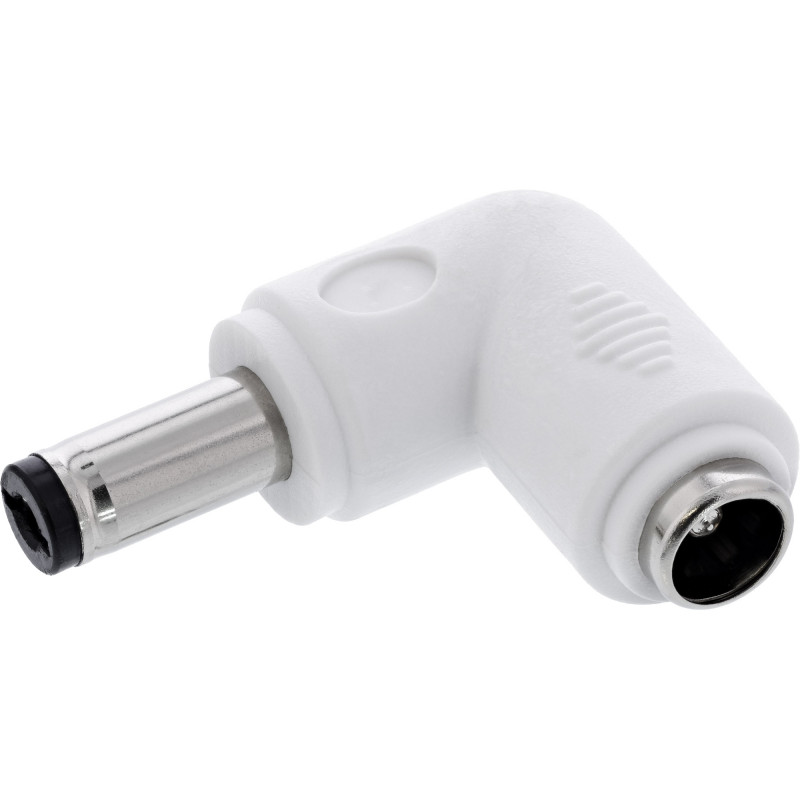

The InLine® DC adapter with 5.5 x 2.1 mm plug and socket is an angled adapter designed for space-saving cable management. It connects a DC male plug to a DC female socket of the same size, allowing you to extend an existing power connection without replacing the cable. The 90° design directs the cable to the side, making it ideal for confined spaces such as behind devices or within compact enclosures.

Key features

• Angled 90° design for space-saving cable routing
• Connects a 5.5 x 2.1 mm DC male plug to a 5.5 x 2.1 mm DC female socket
• Passive operation – does not alter voltage or current
• Easy to retrofit between power supply and device
• Suitable for installations, test setups, and equipment racks

Specifications

• Brand: InLine®
• MPN: 26899E
• Product colour: White
• Connection 1: DC male plug (5.5 x 2.1 mm)
• Connection 2: DC female socket (5.5 x 2.1 mm)
• Operating voltage: 12 V
• Maximum operating current: 2 A
• Maximum power: 24 W
• Housing material: PVC
• Metal sleeves: Nickel-plated
• Type: Angled
• Article dimensions: 2.40 cm (W) x 1.00 cm (H) x 3.00 cm (L)
• Net weight: 4 g
• EAN: 4043718350049
• Country of origin: China
