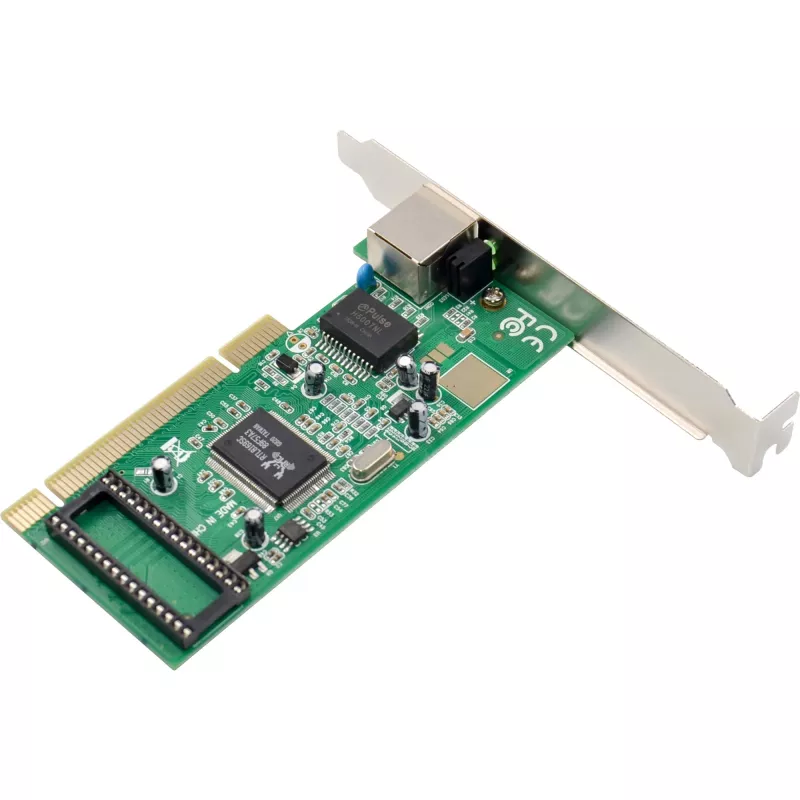

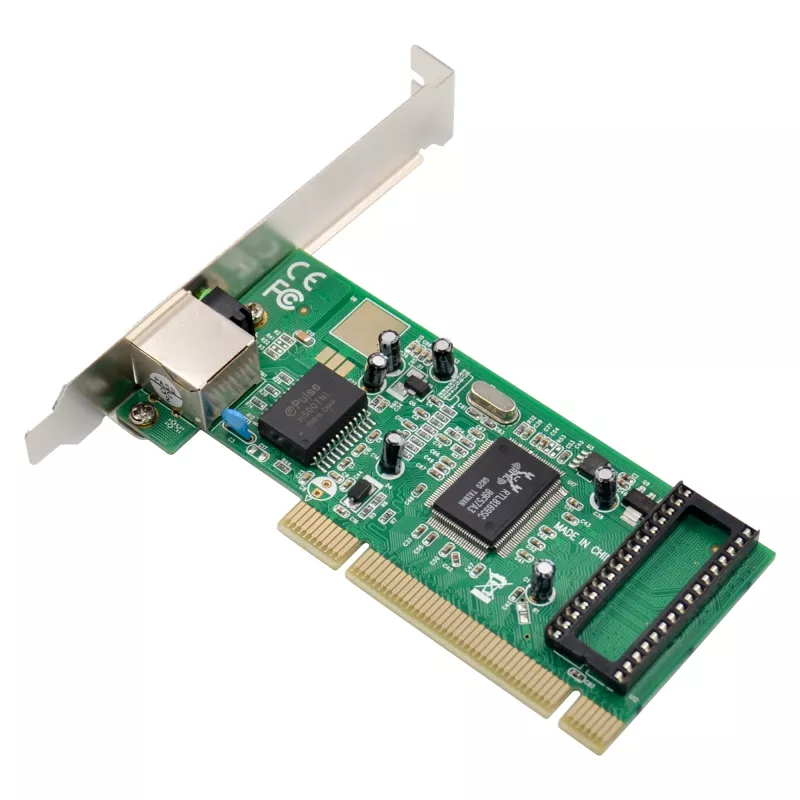

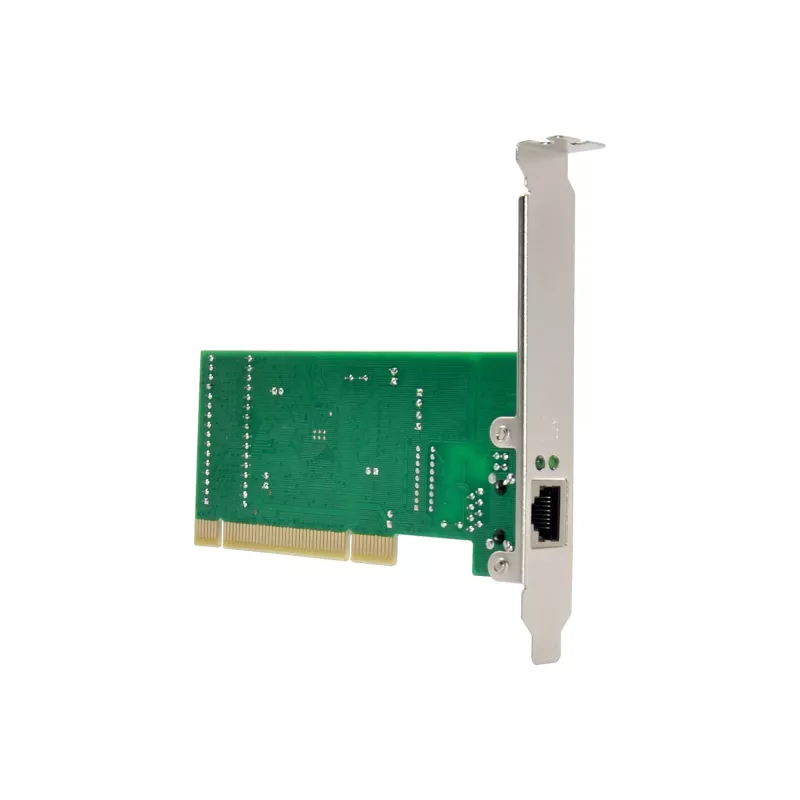

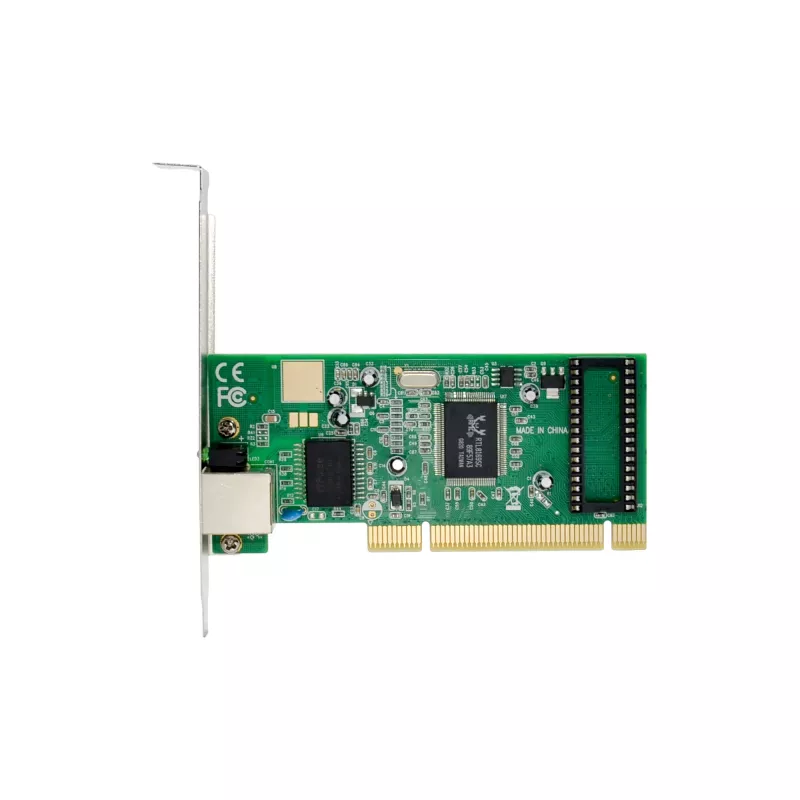

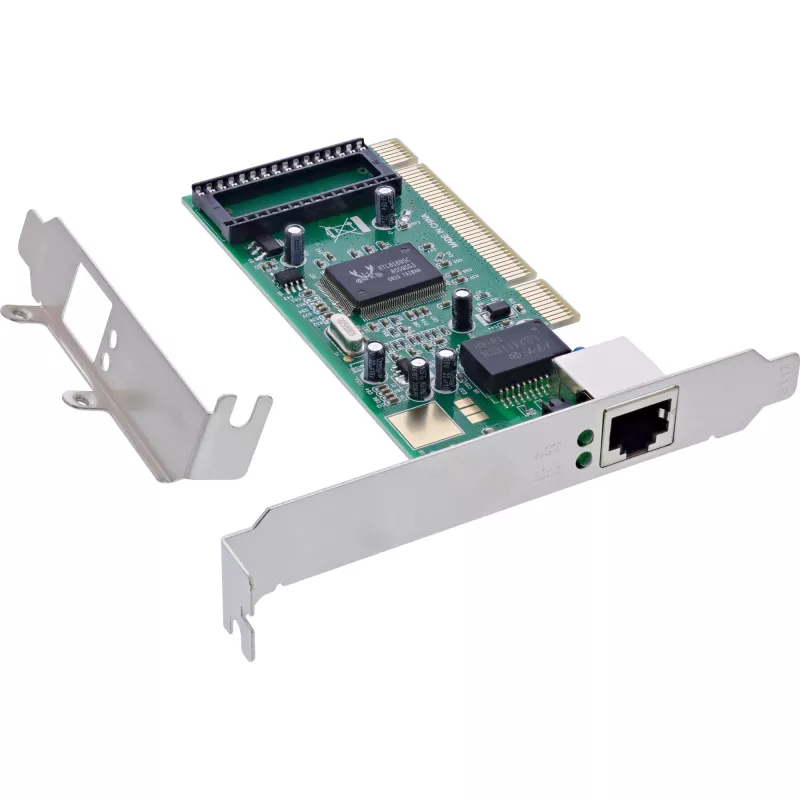

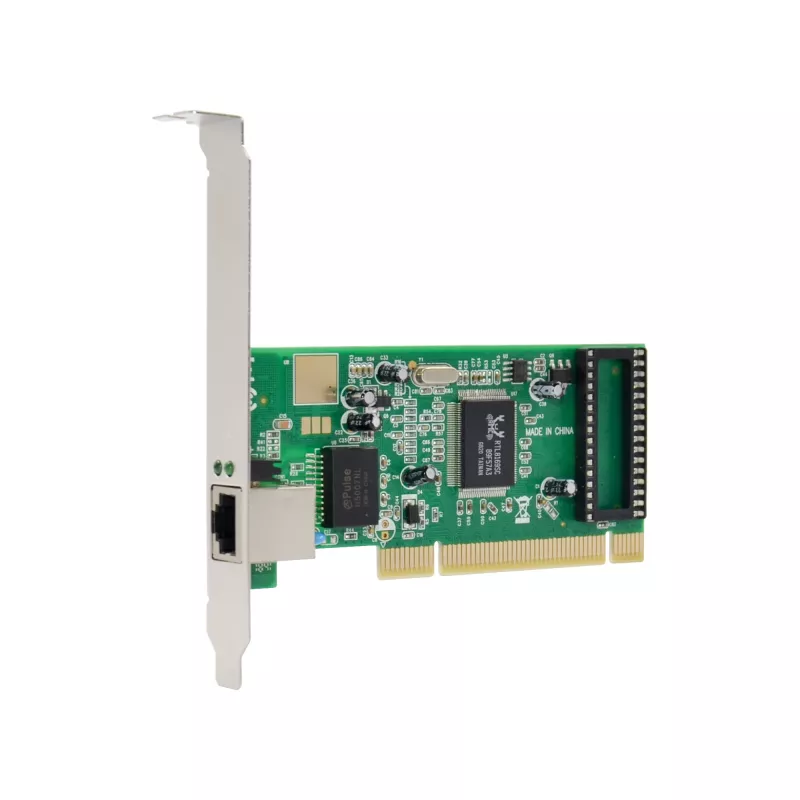

InLine adattatore Gigabit Ethernet PCI 1x RJ45 interfaccia host PCI

Powerful 10/100/1000BASE-T network card with Realtek RTL8169SC chipset
Supports 1 Gb/s data transfer rate over existing CAT.5e or higher copper cabling
Compatible with PCI V2.2 (32/64-bit, 33/66 MHz) slots
Supports Wake on LAN, VLAN tagging and ACPI power management
Broad driver support for Windows, Linux and macOS

The InLine® Gigabit PCI network card offers a powerful and cost-effective solution for connecting to wired networks in the home and office. With a maximum data rate of 1 Gb/s, it is ideal for fast file transfers, media streaming or reliable Internet connections.Thanks to its Realtek RTL8169SC chipset, the card guarantees high compatibility and stability. It can be easily integrated into systems with PCI V2.2 slots (32/64-bit, 33/66 MHz). The network card supports modern network functions such as full-duplex flow control, IEEE 802.1Q VLAN tagging and Wake on LAN (WoL). Crossover detection and auto-correction mode are also part of the range of functions.With support for current operating systems such as Windows, Linux and macOS, the network card is versatile. An optional boot ROM is also supported, making it suitable for special network requirements.
Technical specifications:

Chip set: Realtek RTL8169SC
Interface: PCI V2.2 (32/64-bit, 33/66 MHz)
Transmission rate: 10 / 100 / 1000 Mb/s
Compatible cabling: CAT.5e or higher
Network standards: IEEE 802.3, 802.3u, 802.3ab
Supports: Full-duplex flow control, VLAN tagging, Wake on LAN (WoL), ACPI, Boot ROM (optional)
Crossover detection and auto-correction
Compatible operating systems: Windows 98SE or newer, Server 2003 or newer, Linux kernel ≥ 2.4, macOS X 10.4 or newer
Operating temperature: 0° C – 55° C
Storage temperature: -40° C – 70° C
Humidity: 10% - 90% non-condensing

InLine Gigabit Ethernet PCI Adapter 1x RJ45. Host interface: PCI, Output interface: RJ-45, Host interface gender: Male. Country of origin: Taiwan. Data transfer rate (max): 1 Gbit/s. Windows operating systems supported: Windows 10, Windows 11, Windows 7, Windows 8, Windows 98SE, Windows Vista, Windows XP, Mac operating systems supported: Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High..., Linux operating systems supported: Kernel 2.6, Kernel 2.6.31, Kernel 2.6.33, Kernel 3.12, Kernel 3.17, Kernel 3.3, Kernel 4.6.4,.... Width: 130 mm, Depth: 1.22 mm, Height: 120 mm

How to use

Power off and unplug the PC, open the case, and insert the adapter into an available PCI slot. Secure the card and close the case. Connect an Ethernet cable (Cat.5e or higher) to the RJ45 port and to your network switch or router. Power on the PC and install the required drivers for your operating system if they are not installed automatically. After driver installation, configure network settings in the operating system as needed.

Recommendations

Use quality Cat.5e or Cat.6 cabling for reliable gigabit performance and keep cable runs within 100 metres. Ensure you install drivers matching your Windows or macOS version and place the card in a properly ventilated desktop to avoid thermal issues.
