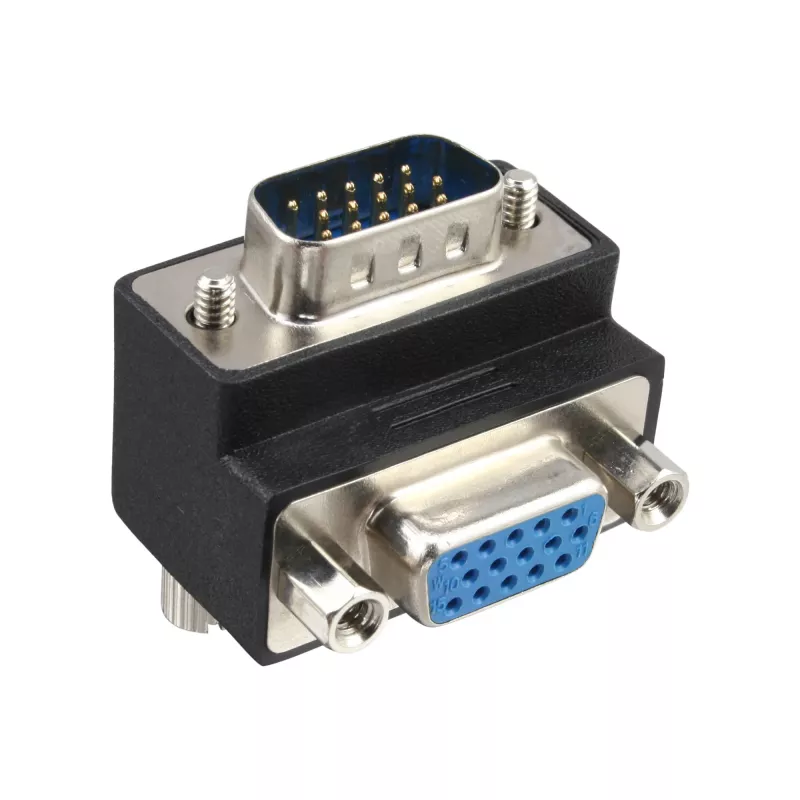

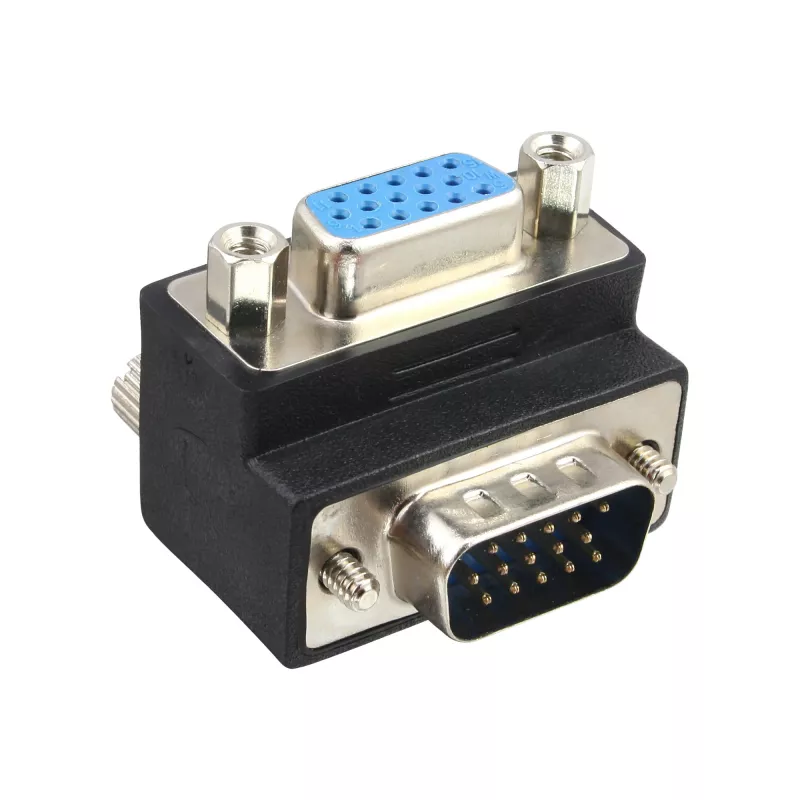

InLine adattatore VGA 90° 15 Pin maschio / femmina, InLine, 37248I

This InLine VGA Adapter 90° 15 Pin male / female provides a right-angle VGA connection designed for installations with limited space behind the display, for example wall-mounted monitors. It features a 15-pin male-to-female D-sub interface with nickel-plated contacts and a black housing to ensure reliable signal contact and durability.

Advantages

The 90° orientation reduces the required clearance behind the monitor, preventing cable strain and allowing a neater installation. Nickel-plated contacts improve corrosion resistance and ensure consistent signal transmission. The compact black design is unobtrusive and compatible with standard VGA cables and ports.

Suitable for

• Wall-mounted monitors with limited rear clearance
• Small workstations or tight cabinet installations
• Retrofit connections where a straight plug cannot be fully inserted

Key specifications

• Connector 1: VGA (D-sub) HD female
• Connector 2: VGA 15-pin male
• Orientation: 90° right-angle
• Contacts: nickel-plated
• Colour: black
• Brand: InLine
• MPN: 37248I
• EAN: 4043718195664

How to use

Insert the male end of the adapter into the display's VGA port or attach it to the VGA cable as required. Tighten any screws by hand to secure the D-sub connection. Route the cable so that the right-angle adapter sits comfortably against the monitor housing, avoiding sharp bends or strain on the cable.

Recommendations

For best results, use with standard VGA cables and avoid excessive force when connecting or disconnecting. Periodically check the nickel-plated contacts for debris and ensure the adapter is not subjected to mechanical stress that could loosen the connection.
