InLine cavo convertitore HDMI F a DisplayPort M, 4K, nero/oro, 0,3m

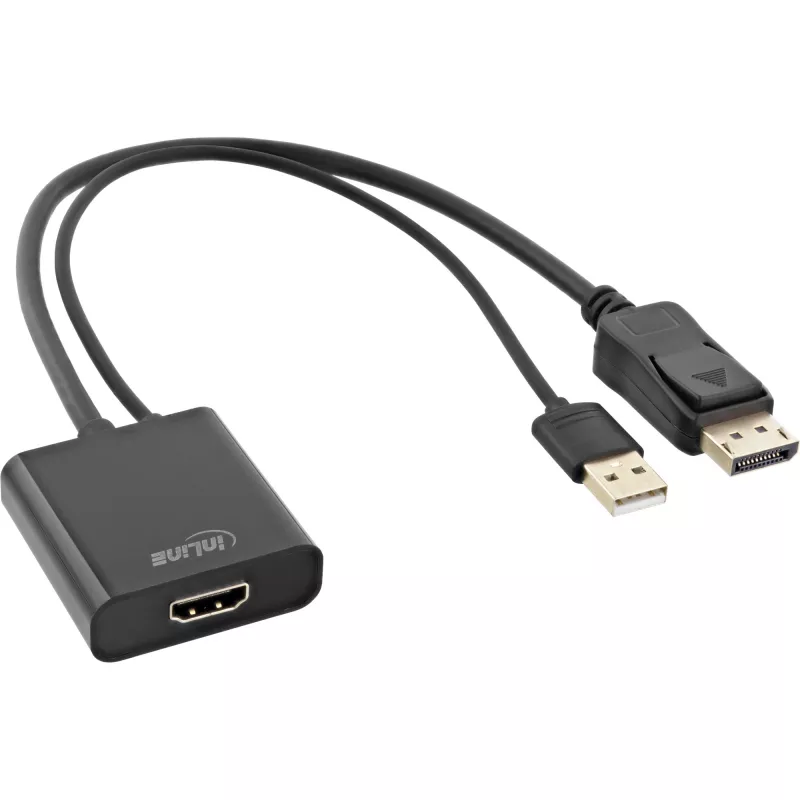

The InLine HDMI F to DisplayPort M Converter Cable 17169P (0.3 m) enables connection of a DisplayPort monitor to a computer or device with an HDMI graphics output. The cable performs an active electronic conversion from HDMI to DisplayPort and supports up to 4K resolution. A separate USB power supply (5V / 500 mA) connected on the HDMI side is required to power the converter.

Advantages

This short converter cable provides a compact solution for connecting HDMI sources to DisplayPort displays without requiring a full adapter box. It supports high-resolution video up to 4K, uses standard HDMI Type A and DisplayPort connectors for broad compatibility, and its 0.3 m length is suitable for tight installation spaces.

Suitable for

• Connecting a laptop or desktop with HDMI output to a DisplayPort monitor
• Use in desks, AV cabinets, or other confined spaces where cable length must be minimal
• Temporary setups where a small converter cable is preferred over larger adapters

Key specifications

• Model: InLine 17169P
• Type: HDMI (female) to DisplayPort (male) converter cable
• Length: 0.3 m
• Power: requires external USB power 5V / 500 mA on HDMI side
• Resolution support: up to 4K
• Connectors: HDMI Type A (F), DisplayPort (M)
• Colour/finish: black with gold contacts
• Brand: InLine

How to use

Connect the HDMI end of the converter cable to the HDMI output of your source device and insert the DisplayPort male connector into the DisplayPort input of the monitor. Attach a USB power cable to the converter's USB power input and connect it to a 5V/500 mA USB power source (such as a USB port or USB charger). After power is supplied, set the monitor input to the DisplayPort source and configure display settings on the source device as needed.

Recommendations

Use a reliable 5V/500 mA USB power source and avoid excessive cable bending. Verify that the source device supports video output over the HDMI port and configure resolution settings to match the monitor’s capabilities.
