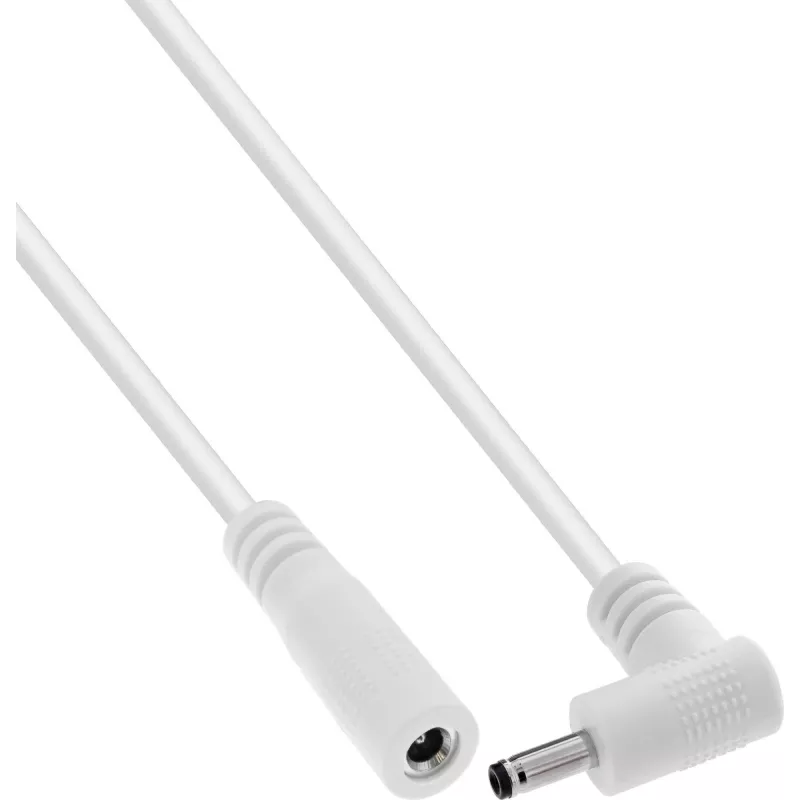

InLine® Cavo di prolunga DC, connettore maschio angolare, 3,5 x 1,35 mm, bianco, 0,2 m

The InLine® DC extension cable with right-angle plug extends existing DC power connections without changing the connector size or electrical characteristics. It features a 3.5 x 1.35 mm DC plug and DC socket, a 2-core AWG 18 cable with PVC sheath, and is suitable for 12–24 V DC applications up to 140 W.

Key features

• Right-angle DC plug and straight DC socket for space-saving connection
• 2-core cable with PVC sheath
• Nickel-plated contact housing
• Unshielded
• White colour

Specifications

• Brand: InLine
• MPN: 26906Q
• Product type: Power Cord
• Cable length: 0.2 m
• Connector dimensions: 3.5 x 1.35 mm
• Connector A: DC plug, angled
• Connector B: DC socket, straight
• Conductor cross-section: AWG 18
• Cable construction: 2-core
• Jacket material: Polyvinyl chloride (PVC)
• Outer cable diameter: 5.0 ± 0.2 mm
• Contact housing: Nickel-plated
• Operating voltage: 12–24 V (DC)
• Maximum power: 140 W
• Product colour: White
• Shielding: Unshielded
• UL: No
• Variant: Without switch
• Design: Angled
• Signal: Power
• Country of origin: China
• Customs tariff number: 8544429090
• EAN Barcode: 4043718349777
