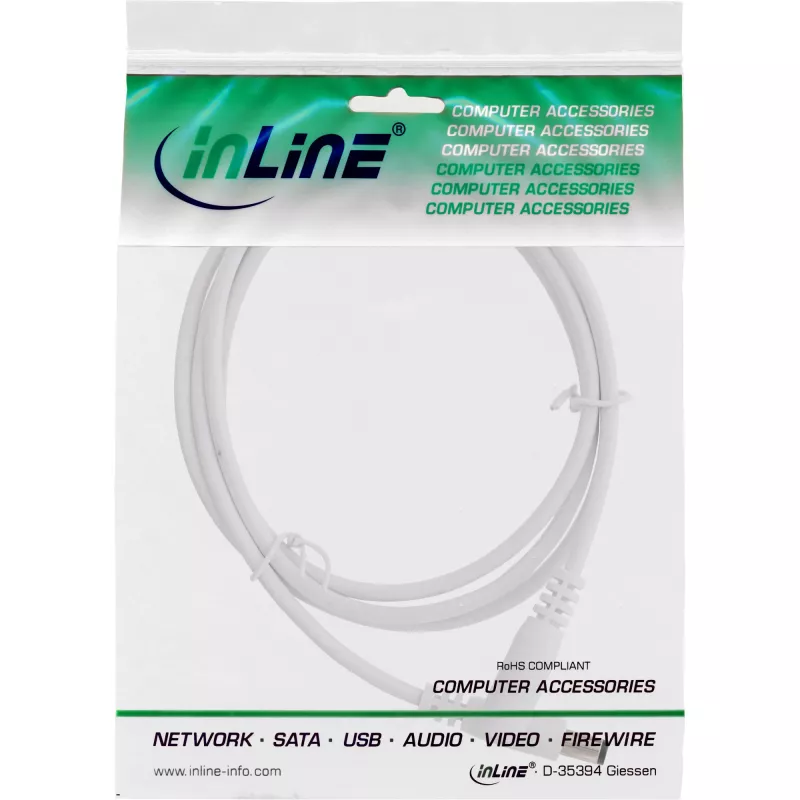

InLine cavo di prolunga DC, connettore maschio/femmina DC 5,5x2,1mm, AWG 18, bianco 0,5m

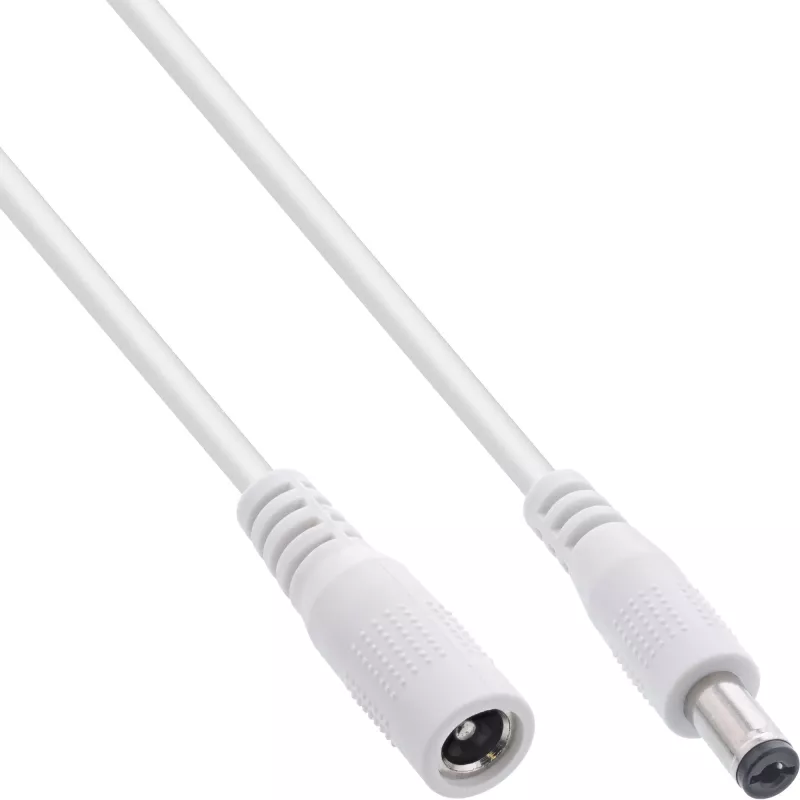

InLine DC extension cable with 5.5 x 2.1 mm male and female connectors, 0.5 m length and white jacket. The cable supports low-voltage power delivery and is intended to extend existing DC power connections for devices that use the common 5.5 x 2.1 mm barrel connector.

Advantages

The cable provides a straightforward way to extend a DC power lead without changing adapters or equipment. With AWG 18 conductors and a rated 12 V / 11.6 A capacity it is suitable for many low-voltage devices. The white outer sheath offers a neutral appearance for installations where colour matching is preferred.

Suitable for

• Extending power to routers, modems and network equipment
• Powering CCTV cameras and small surveillance devices
• Connecting LED drivers and lighting fixtures that use 5.5 x 2.1 mm barrels
• Extension between power adapters and consumer electronics using 5.5 x 2.1 mm DC plugs

Key specifications

• Connector type: 5.5 x 2.1 mm male ↔ 5.5 x 2.1 mm female
• Cable length: 0.5 m
• Conductor size: AWG 18
• Rated voltage/current: 12 V / 11.6 A
• Colour: White
• Brand: InLine, MPN: 26955E, EAN: 4043718308804

How to use

Plug the male 5.5 x 2.1 mm connector into the device or adapter's female DC socket and connect the female end to the corresponding male plug of the other cable or adapter. Ensure connectors are fully seated. Use the cable only with compatible voltages and polarities matching the connected equipment.

Recommendations

Check device voltage and polarity before use. Avoid routing the cable through sharp edges or high-temperature areas. For currents near the rated 11.6 A, inspect the connectors and cable for heat buildup during initial use.
