InLine cavo SAS slim, SFF-8654 a Mini SAS HD SFF-8643, 24Gb/s, 0.5m

High transfer performance:Supports data rates up to 24Gb/s per channel for fast and stable connections.
Robust connection:Equipped with lockable Slim SAS connector (SFF-8654) for secure hold in demanding environments.
Maximum compatibility:Compliant with SAS 4.0 specifications, suitable for HBA cards, RAID controllers, and JBOD systems.
Flexible cable solution:Enables space-saving internal cabling in servers, workstations, and storage systems.
Reliable signal transmission:High-quality workmanship for professional applications in continuous operation.

The InLine® Slim SAS cable with a data transfer rate of up to 24Gb/s per channel offers a powerful solution for internal storage connections in professional IT environments.

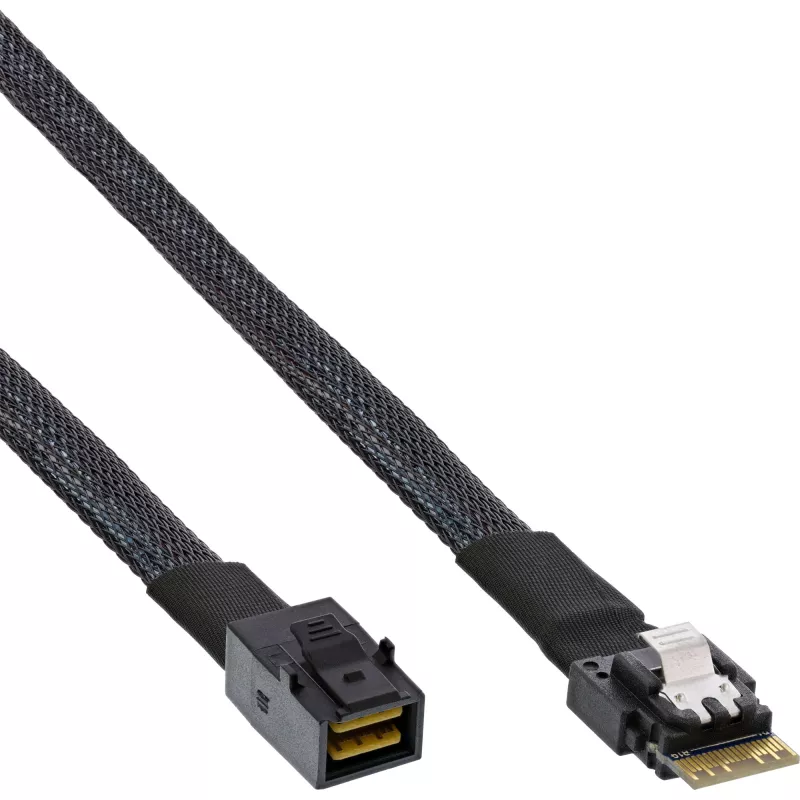

With a Slim SAS 4i connector (SFF-8654) on one end and a Mini SAS HD connector (SFF-8643) on the other, this cable is ideal for use in servers, workstations, or storage systems.
Thanks to its compliance with the SAS 4.0 specification, the cable ensures reliable compatibility with common HBA cards, RAID controllers, and JBOD, DAS, or SAN solutions. The integrated lock on the Slim SAS connector ensures a secure hold, even with vibrations and continuous stress during operation.
The compact design of the cable allows for flexible and space-saving installation in enclosures with limited space. The robust workmanship and high signal quality make the InLine® Slim SAS cable the ideal choice for demanding applications in professional environments.

Interfaces:SFF-8654 (Slim SAS 4i) to SFF-8643 (Mini SAS HD)
Standard:SAS 4.0
Data rate:Up to 24Gb/s per channel
Feature:Connector with locking mechanism
Type:Internal connection cable
Variant:27643A = 0.5 m, 27643B = 1 m

InLine Slim SAS Kabel, SFF-8654 zu Mini SAS HD SFF-8643, 24Gb/s, 0.5m. Cable length: 0.5 m, Connector 1: SFF-8654 male, Connector 2: SFF-8643. Dimensions (WxDxH): 15 x 500 x 10 mm. Package width: 160 mm, Package depth: 185 mm, Package height: 20 mm

How to use

Power down the host system and storage devices before connecting. Insert the SFF-8654 male connector into the controller or HBA port, and the SFF-8643 connector into the Mini SAS HD port on the drive enclosure or backplane. Ensure connectors are fully seated and routed to avoid sharp bends. After installation, power on the system and verify that the controller recognises connected SAS devices.

Recommendations

For reliable operation, use the cable for internal short-distance connections only and avoid excessive bending or strain. Select the 0.5 m length when devices are close to each other to minimise cable clutter and maintain optimal airflow within the chassis.
