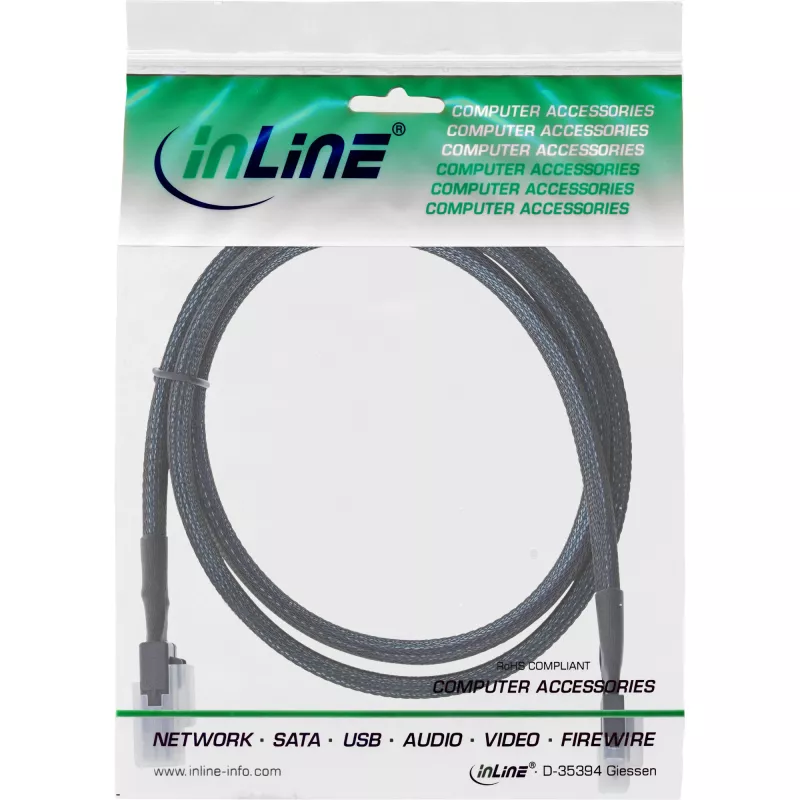

InLine cavo SAS slim, SFF-8654 a Mini SAS SFF-8087, 12Gb/s, 0,5m

High data transfer rate:Supports up to 12Gb/s per channel, meeting the requirements of modern SAS 4.0 environments.
Reliable connection:Securely connects SAS devices such as hard drives to HBA or RAID controllers.
Space-saving design:Slim SAS design enables space-saving cable routing in compact server enclosures.
Secure plug connection:With locking clip for a secure hold and interference-free data transfer.
High compatibility:Compliant with SAS 4.0 SFF-8654 specification, with Mini SAS SFF-8087 connector on the opposite end.

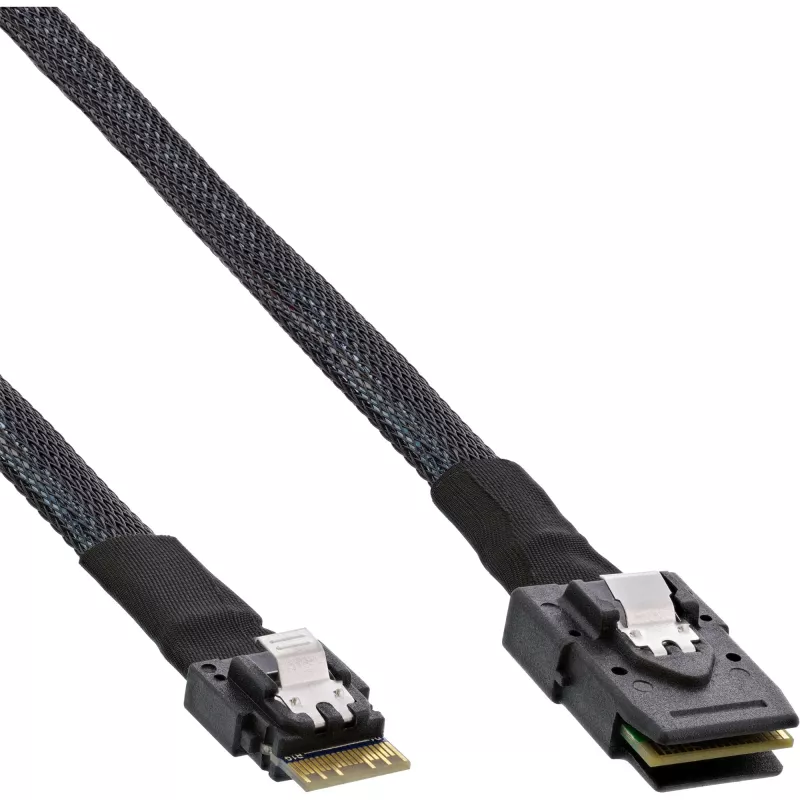

The InLine® Slim SAS cable is the professional solution for connecting internal SAS components in server and storage systems. Equipped with a Slim SAS 4i connector (SFF-8654) on one end and a Mini SAS connector (SFF-8087) on the other, it is ideal for connecting SAS hard drives to HBA cards, RAID controllers, or JBOD systems. Support for transfer rates of up to 12Gb/s per channel meets the highest performance requirements and ensures reliable data communication in demanding IT infrastructures. The robust design with integrated locking clip ensures a secure connection – even during continuous use in data centers or industrial environments. The compact Slim SAS design allows the cable to be laid easily even in confined spaces. This makes it an efficient and durable solution for professional SAS use.

Connector type:Slim SAS 4i (SFF-8654) to Mini SAS (SFF-8087)
Transfer rate:Up to 12 Gb/s per channel
With locking clip:For a secure connection
Specification:Compliant with SAS 4.0 SFF-8654
Use:Internal connection cable, e.g., for servers, JBOD, DAS

InLine Slim SAS cable, SFF-8654 to Mini SAS SFF-8087, 12Gb/s, 0.5m. Cable length: 0.5 m, Connector 1: SFF-8654 male, Connector 2: SFF-8087. Dimensions (WxDxH): 20 x 500 x 10 mm. Package width: 170 mm, Package depth: 220 mm, Package height: 25 mm

How to use

Power off equipment before connecting the cable. Insert the SFF-8654 male connector into the corresponding port on the controller or HBA, and connect the SFF-8087 end to the target backplane or device. Ensure connectors are fully seated but do not force them. After connecting, power on the systems and verify device recognition in the controller firmware or operating system.

Recommendations

Use this 0.5 m slim SAS cable for short internal connections where high-speed 12 Gb/s SAS signaling and space savings are required; avoid tight bends near the connectors and maintain standard ESD precautions when handling internal storage cables.
