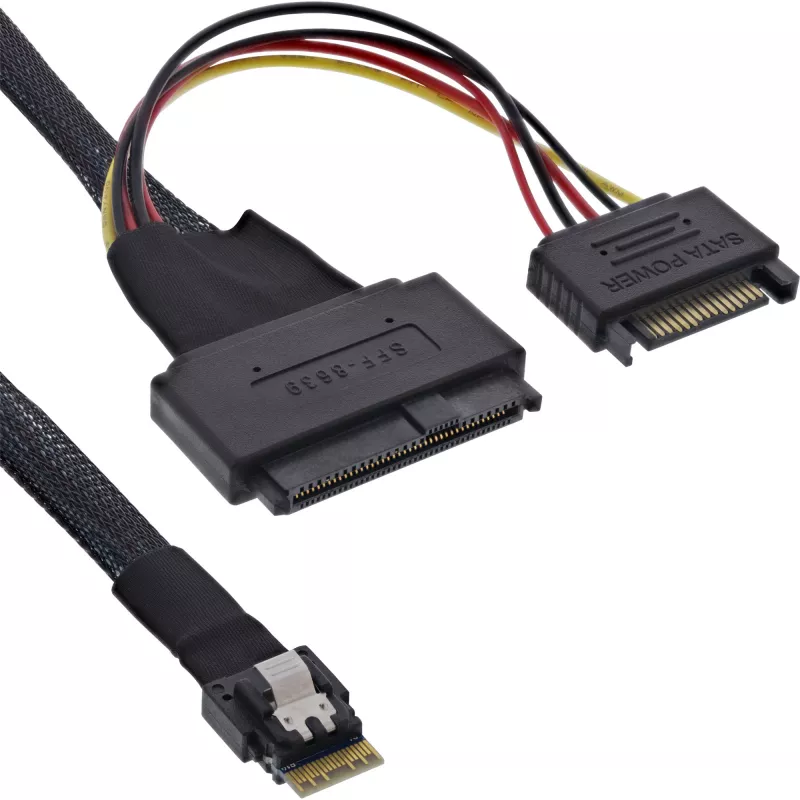

InLine cavo SAS slim, SFF-8654 a U.2 SFF-8639 + alimentazione SATA, 24Gb/s, 1m

Fast U.2 connection:Supports data rates of up to 24Gb/s per channel for reliable transmission of modern SSDs.
Sophisticated combination solution:Combines data and power supply with SFF-8639 and SATA power connectors – ideal for space-saving installations.
High compatibility:Suitable for SAS 4.0 controllers with SFF-8654 connection – efficiently connects U.2 SSDs.
Secure hold:Lockable slim SAS connector for a secure fit even with vibrations during server operation.
Optimized for server environments:Ideal for workstations, JBOD setups, RAID systems, and data centers.

The InLine® Slim SAS cable with U.2 SFF-8639 connector and additional SATA power connector offers a powerful and sophisticated connection solution for use in professional storage environments. It connects a Slim SAS 4i connector (SFF-8654) to a U.2-compatible connector (SFF-8639) and a SATA power supply.
With support for up to 24Gb/s per channel, this cable is ideal for connecting modern U.2 SSDs to SAS controllers, HBA cards, or RAID systems. The combination of data and power connection saves space in the enclosure and enables particularly clean cabling—especially in cramped server configurations.
The lock on the Slim SAS connector ensures a secure hold even during continuous use and vibrations. Compliant with SAS 4.0 specifications, the cable ensures reliable performance in demanding applications in data centers, workstations, or storage solutions.

Interfaces:SFF-8654 (Slim SAS 4i) to SFF-8639 (U.2) + SATA power
Standard:SAS 4.0
Data rate:Up to 24Gb/s per channel
Feature:Combination connector with data and power connection
Type:Internal connection cable for U.2 SSDs
Variant:27644A = 0.5 m, 27644B = 1 m

InLine Slim SAS cable, SFF-8654 to U.2 SFF-8639 + SATA power, 24Gb/s, 1m. Cable length: 1 m, Connector 1: SFF-8654 male, Connector 2: SFF-8639 + SATA. Dimensions (WxDxH): 50 x 1000 x 15 mm. Package width: 130 mm, Package depth: 185 mm, Package height: 20 mm

How to use

Route the cable inside the chassis from the controller or backplane SFF-8654 port to the U.2 drive. Insert the SFF-8654 male connector into the controller's matching socket and connect the SFF-8639 (U.2) plug to the drive. Attach the SATA power connector to a suitable SATA power cable or power supply connector to provide drive power. Secure the cable to avoid strain on connectors and ensure proper airflow within the case.

Recommendations

Use the cable in compatible systems that support SFF-8654 to U.2 connections and observe anti-static precautions when installing components. Avoid tight bends and excessive force on connectors to maintain signal integrity and cable lifespan.
