InLine cavo telefonico per installazione 4 fili massiccio 2x2x0,6mm schermato 100 m

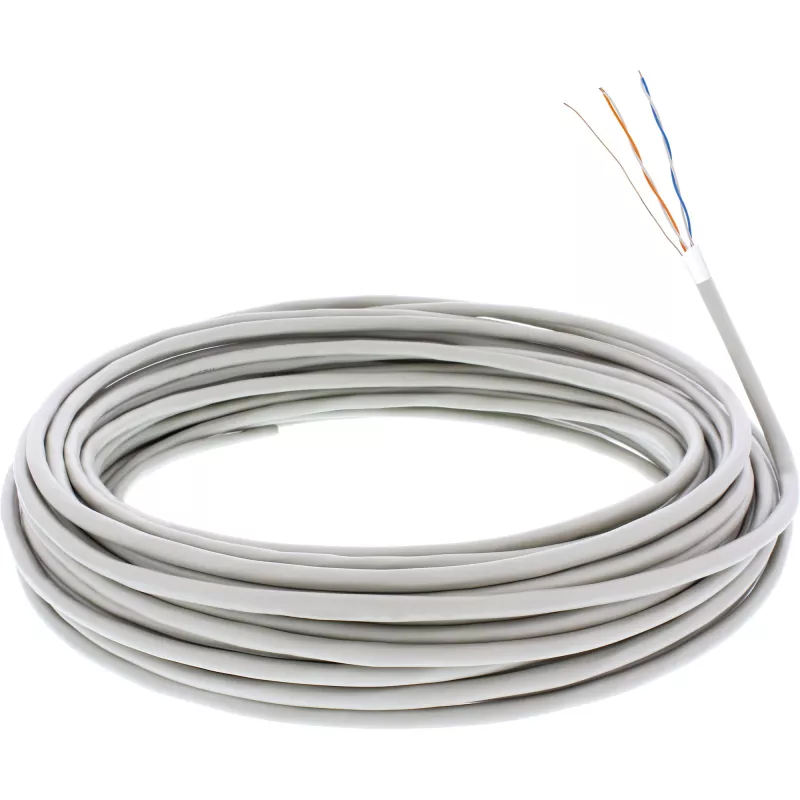

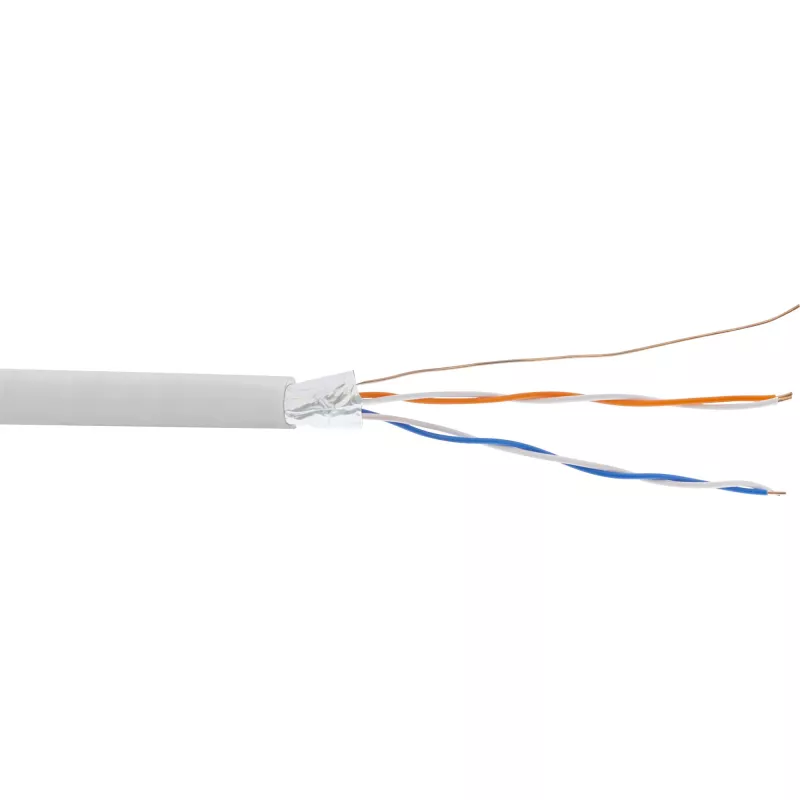

InLine Telephone Installation Cable 4 Wire solid 2x2x0.6mm shielded 100m is a 100 m beige telephone installation cable with four solid conductors arranged as two twisted pairs. Conductors are made of CCA (Copper Clad Aluminum) and the pairs are colour-marked for easy identification. The cable includes an overall foil shield and a drain wire and is sheathed in 0.5 mm thick PVC for mechanical protection.

Advantages

This shielded telephone cable provides reduced electromagnetic interference thanks to its overall foil shielding and drain wire. The CCA construction offers a cost-effective alternative to pure copper while maintaining reliable signal transmission for voice communications. The solid 0.6 mm conductors and colour-marked pairs simplify installation and termination.

Suitable for

• Fixed telephone line installation in homes and offices
• Internal building wiring for PBX and analogue phone systems
• Runs where a shield is required to limit external interference

Key specifications

• Length: 100 m
• Conductors: 4 solid wires (2 pairs)
• Conductor material: CCA (Copper Clad Aluminum)
• Conductor size: 0.6 mm (solid)
• Shielding: overall foil shield with drain wire
• Jacket: PVC, 0.5 mm thickness
• Colour: Beige

How to use

Route the cable through walls, conduits or cable trays to the desired connection points. Strip the outer PVC jacket and separate the foil shield and drain wire before terminating. Terminate the colour-marked pairs to the appropriate terminals of the telephone device, patch panel or punch-down block following standard wiring schemes. Ensure the drain wire is connected to ground where shielding termination is required.

Recommendations

For best results avoid running the cable in parallel with high-voltage power lines over long distances and ensure proper grounding of the drain wire to maintain the shield’s effectiveness. Use this cable for indoor fixed wiring; it is not rated for outdoor burial or direct exposure to weather.
