InLine connettore RJ45 Cat.6A 500MHz, assemblabile sul campo, schermato, con cappuccio a vite

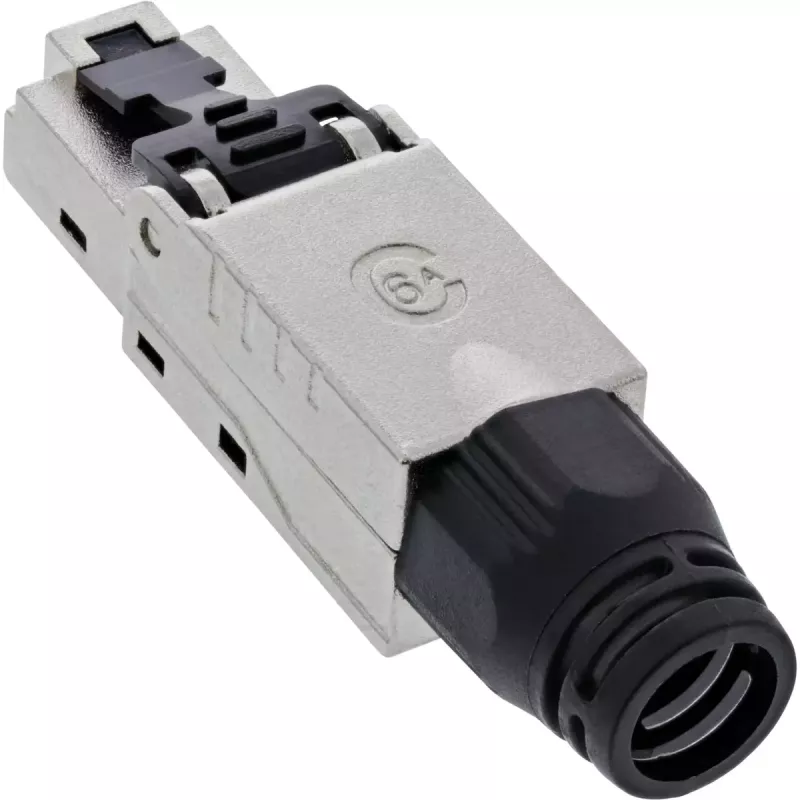

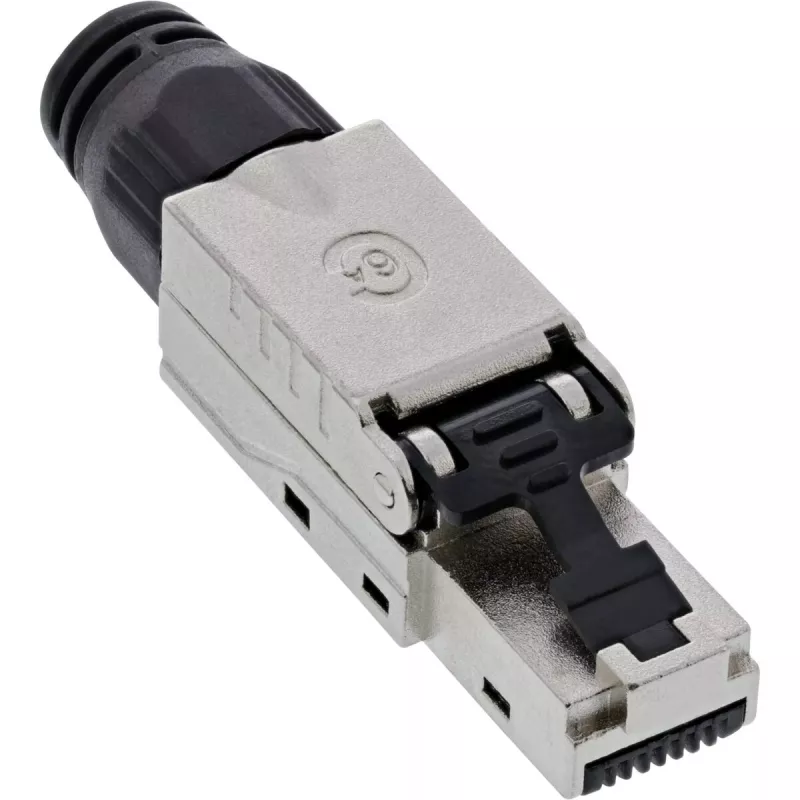

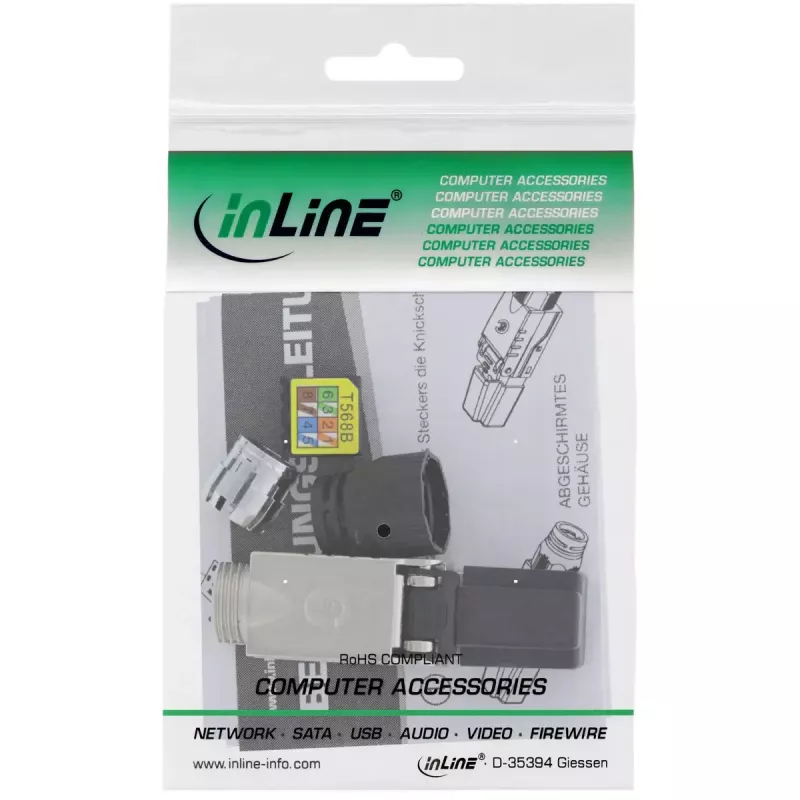

The InLine RJ45 plug Cat.6A 500MHz (model 76204B) is a field-installable shielded RJ45 connector for installation cables with rigid cores. Designed for installation on existing Cat.5e, Cat.6, Cat.6A or Cat.7/7A cables, the connector supports data transmission speeds up to 10 Gbps and provides shielding to reduce interference. The plug has a black and stainless steel finish and fits cables with an outer diameter of approximately 9 mm. Each pack contains one plug supplied in a polybag.

Advantages

This field-installable Cat.6A RJ45 plug offers shielded performance suitable for high-speed networks up to 10 Gbps and frequencies up to 500 MHz. It is compatible with multiple installation cable categories (Cat.5e through Cat.7/7A) with rigid conductors, allowing retrofitting on existing cabling. The metal/stainless steel housing and shielding improve electromagnetic compatibility and mechanical durability during installation.

Suitable for

Key specifications

How to use

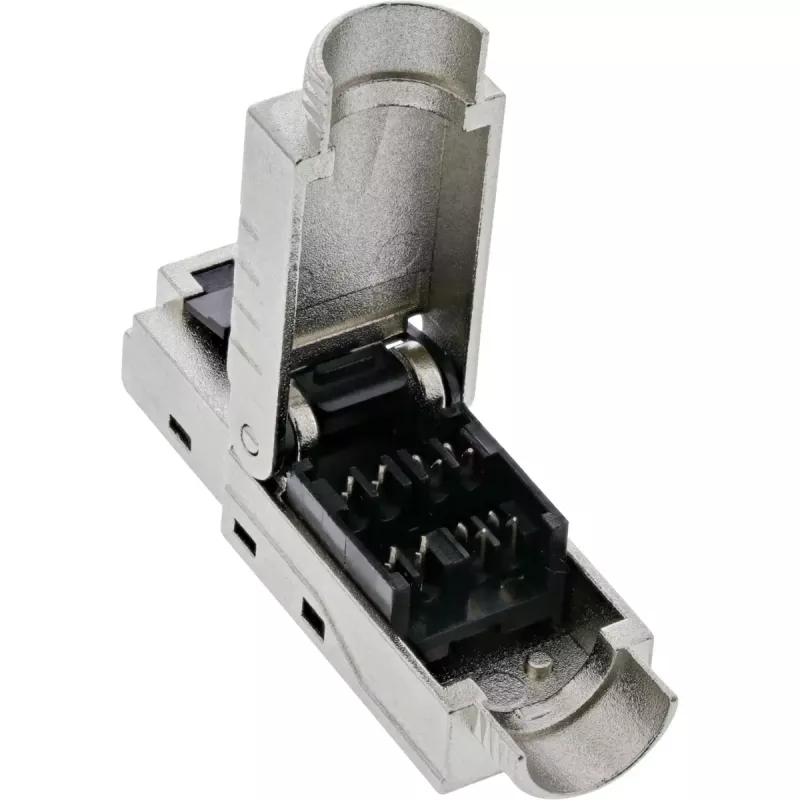

Prepare the installation cable by stripping the jacket to expose the rigid conductors and shielding according to standard termination practices. Insert the individual conductors into the plug following the RJ45 pinout for the chosen wiring (T568A or T568B). Ensure the cable shield is correctly terminated to the connector housing to maintain continuity of shielding. Once the conductors are fully seated, secure the plug onto the cable per the manufacturer's assembly steps and verify the mechanical fit and contact stability. Test the connection with appropriate network test equipment after assembly.

Recommendations

Use this shielded Cat.6A field-installable plug with rigid-core installation cables matching the stated outer diameter and category requirements. Follow standard installation and safety procedures, and verify shielding continuity and signal integrity with proper testing tools after termination.
