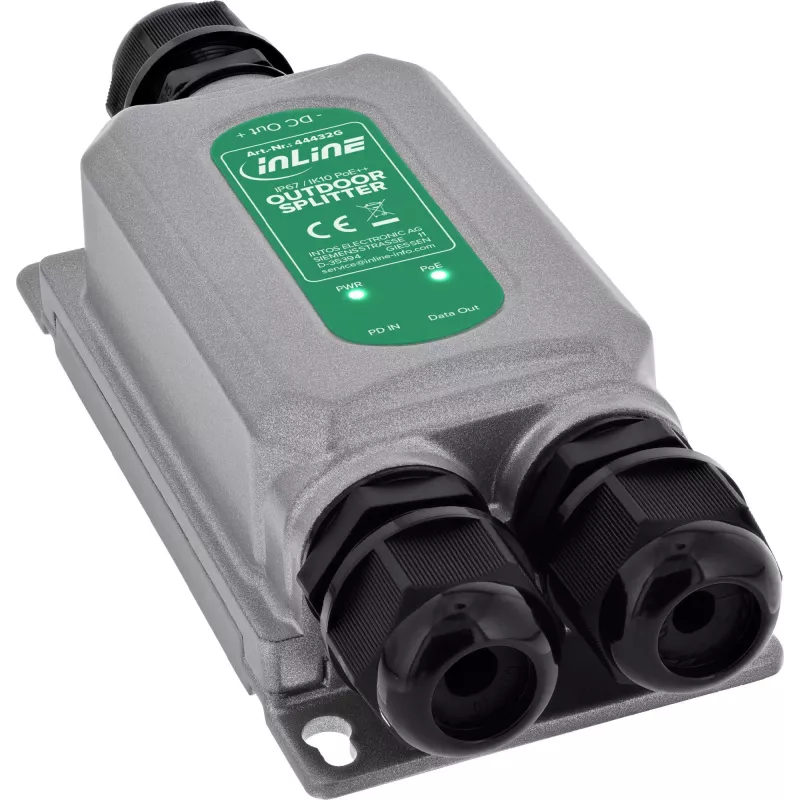

InLine® splitter PoE++ outdoor IP67 IK10 60W 12V Gigabit

Delivering up to 60W of power from a single PoE++ input, this InLine® splitter is engineered for outdoor environments where reliability is non-negotiable. With an IP67 weatherproof rating and IK10 vandal resistance, it withstands dust, water immersion, and physical impact, making it ideal for surveillance, access control, and remote networking in harsh conditions.

Overview

The InLine® PoE++ Splitter (Model 44432G) converts IEEE 802.3bt Type 4 PoE++ input into a regulated 12V DC output and a separate Gigabit Ethernet data port. It supports up to 90W input from PoE++ sources and delivers up to 60W to non-PoE devices such as IP cameras, wireless access points, and IoT gateways. The splitter is backward compatible with 802.3af/at PoE sources, ensuring flexibility in mixed networks.

What stands out

• Outdoor-ready: IP67 dust/waterproof and IK10 impact-resistant metal housing.
• High power output: 60W at 12V DC via 5.5 x 2.1mm barrel jack.
• Gigabit data pass-through: Maintains 10/100/1000 Mbps network speed.
• Wide temperature range: Operates from -40°C to 75°C.
• Easy installation: Wall-mountable design with included mounting kit.

Technical details

• Input: 1x RJ45 PoE++ (IEEE 802.3bt Type 4, up to 90W)
• Data output: 1x RJ45 Gigabit Ethernet
• Power output: 1x DC barrel jack (5.5 x 2.1 mm), 12V DC, up to 60W
• PoE compatibility: IEEE 802.3af/at/bt
• Ingress protection: IP67
• Impact protection: IK10
• Operating temperature: -40°C to 75°C
• Housing: Robust metal
• Mounting: Wall-mountable, mounting kit included

Our verdict

A rugged, high-power PoE++ splitter that bridges the gap between modern PoE infrastructure and legacy 12V devices in outdoor or industrial settings. Its IP67 and IK10 ratings ensure long-term durability, while the Gigabit data port preserves network performance.
