InLine supporto da parete 23105D per monitor fino a 69 cm 27 pollici

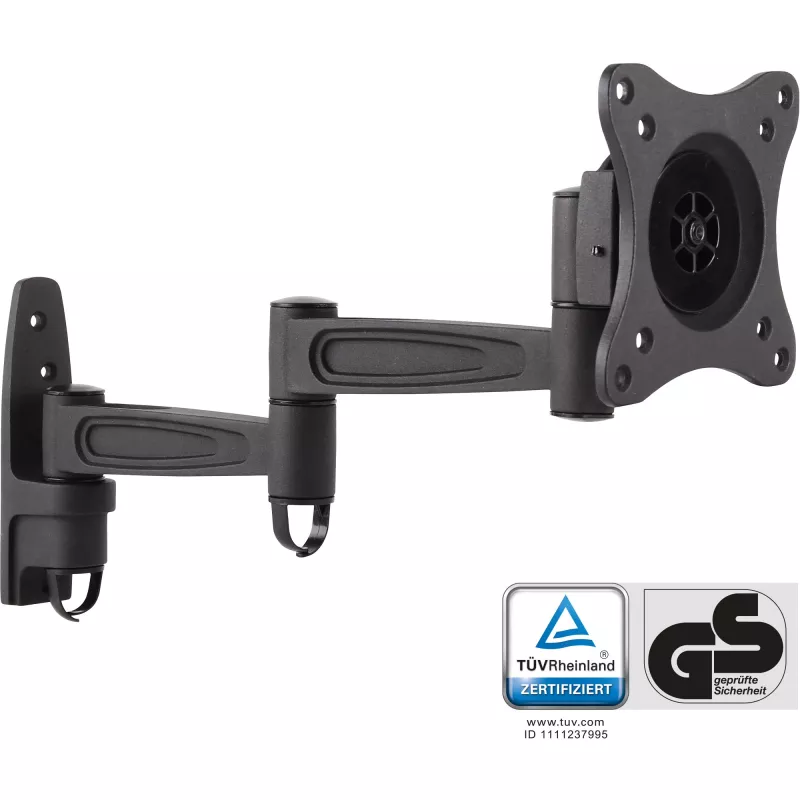

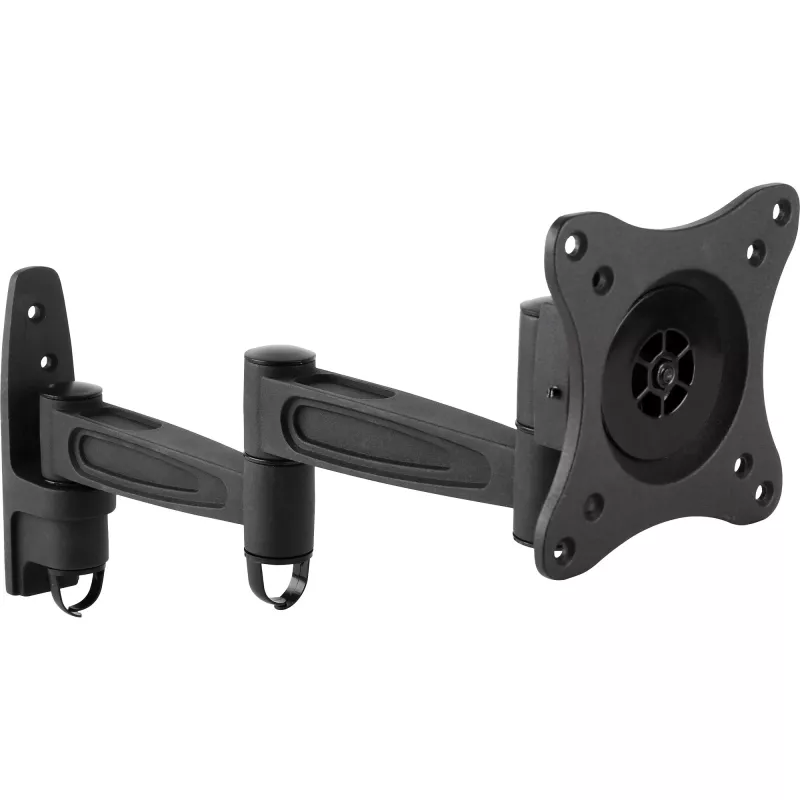

The InLine Wall mount 23105D for monitors up to 69cm 27 inch is a compact, two-part wall arm designed to support a single monitor with a screen size up to 69 cm (27 inches) and a maximum weight of 15 kg. It offers adjustable extension from the wall and flexible tilt and swivel movement to help position the display for comfortable viewing. The mount accepts common VESA patterns for easy attachment and has a black finish that integrates with most office and home setups.

Advantages

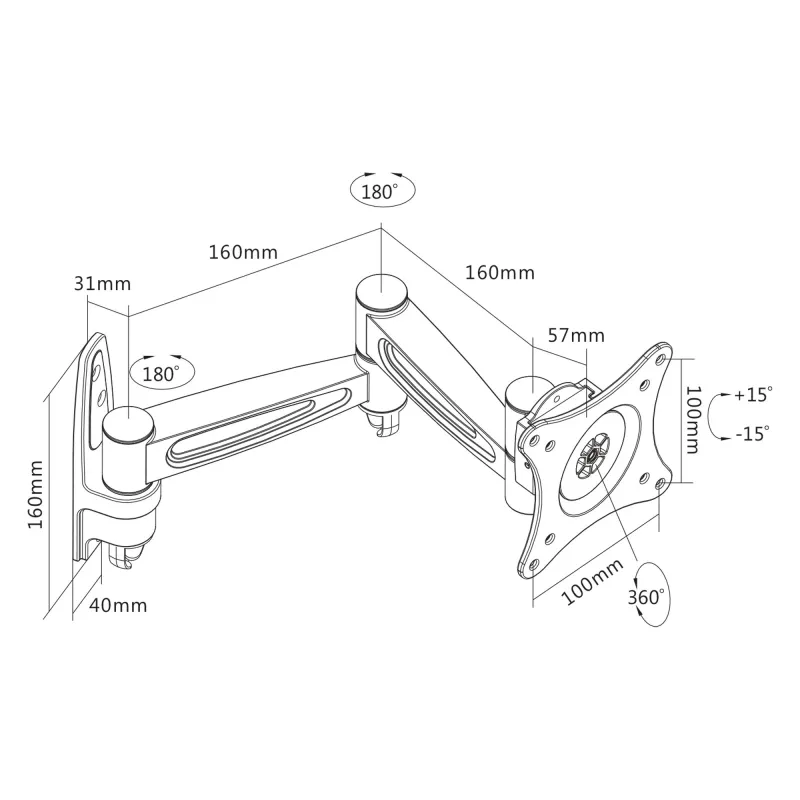

The wall mount provides a two-part articulated arm that extends and retracts to change viewing distance without tools. It supports tilt from -15° to 15° and swivel from -90° to 90°, enabling a wide range of ergonomic adjustments. Rated for loads up to 15 kg and compatible with VESA patterns from 75 x 75 mm to 100 x 100 mm, the mount is suitable for many 27-inch monitors. Its slim profile when retracted saves space and the black design offers a neutral appearance for offices or living spaces.

Suitable for

Key specifications

How to use

Mount the InLine 23105D to a suitable solid wall surface following the included installation guide and using appropriate wall anchors for your wall type. Attach the monitor to the VESA plate, ensuring screws are tightened to secure the display within the specified 75 x 75 mm or 100 x 100 mm pattern and that the monitor weight does not exceed 15 kg. Adjust arm extension, swivel and tilt to obtain the desired viewing angle and height. Periodically check fastenings to maintain stability.

Recommendations

Use appropriate wall anchors for drywall, concrete, or masonry; do not exceed the maximum weight capacity of 15 kg; ensure the mounting surface and fixings are rated for the combined load; avoid using the arm as a handle for moving the monitor abruptly.
