InLine switch matrice HDMI Multi-View 4x4 4 IN 4 OUT Video Wall FullHD

The InLine 4x4 Multi-View HDMI Matrix Switch 57830I connects up to four HDMI sources to four HDMI displays and supports multiple viewing modes including Matrix, PIP (Picture in Picture), PAP, Quad View, Windows mode and a 2x2 video wall. It handles Full HD input and can display a single source across a 2x2 video wall. Control options include front-panel buttons, IR remote, USB (mouse/keyboard) and RS-232. The unit is rack-mountable (19") and comes in a compact black enclosure suitable for presentation, event or home-theater installations.

Advantages

The switch provides flexible routing of four HDMI inputs to four outputs with independent mapping and six selectable display modes for diverse setups. It supports picture-in-picture and multi-window arrangements, a true video-wall mode for 2x2 configurations, and multiple control interfaces (front panel, IR remote, USB and RS-232). Up to eight custom presets can be stored and recalled for fast configuration changes, and an on-screen display (OSD) assists with source selection and programming. Its 19" form factor allows easy mounting in server or AV racks.

Suitable for

• Conference rooms and meeting spaces
• Event and exhibition installations
• Retail digital signage and control rooms
• Home theater systems requiring multiple sources and displays
• Small video-wall setups (2x2)

Key specifications

• Model: InLine 4x4 Multi-View HDMI Matrix Switch 57830I
• Inputs / Outputs: 4 HDMI inputs, 4 HDMI outputs

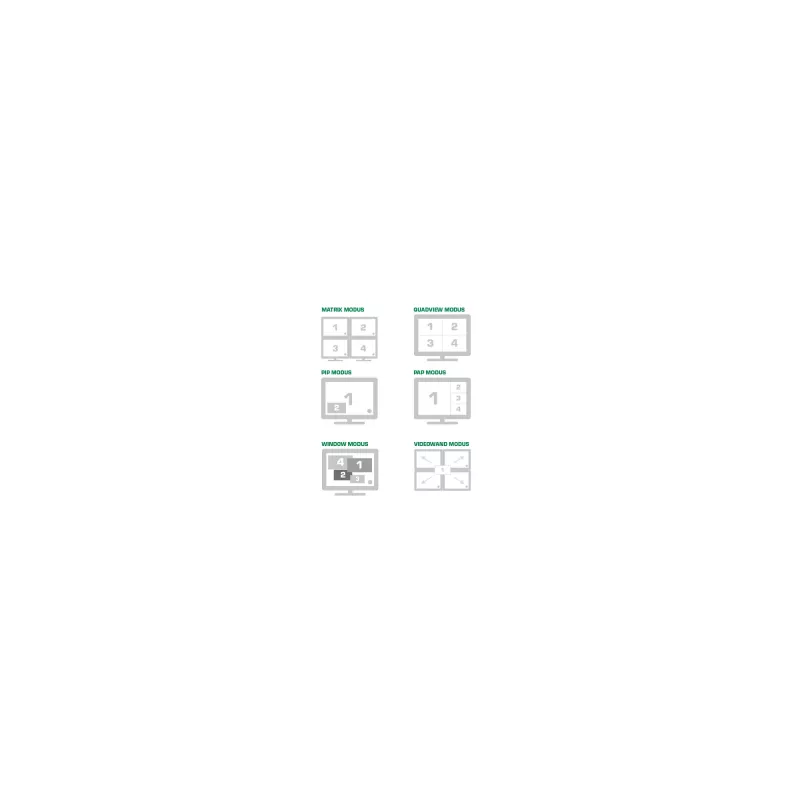

• Supported display modes: Matrix, PIP, PAP, Quad View, Windows mode, Video Wall (2x2)
• Maximum single-display resolution supported: Full HD (1920 x 1080); video wall mode supports combining into 3840 x 2160 (2x2)

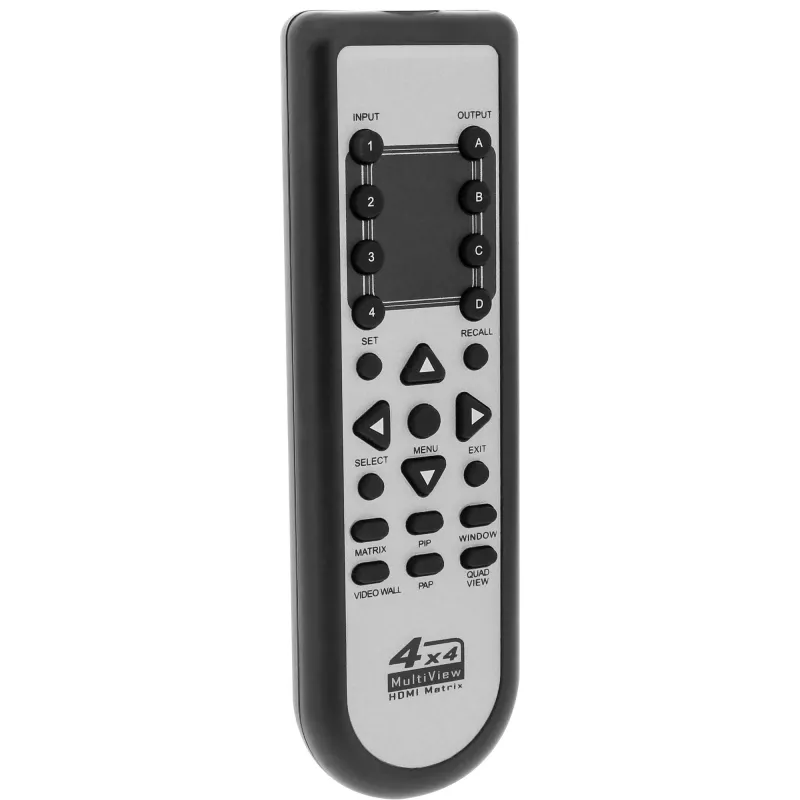

• Control interfaces: Front panel buttons, IR remote, USB (mouse/keyboard), RS-232
• Rack size: 19"
• Colour: Black

How to use

Install the unit into a 19" rack or place it on a stable surface, connect up to four HDMI sources to the input ports and connect up to four displays to the output ports. Use the front-panel buttons, the supplied IR remote, a USB mouse/keyboard or an RS-232 connection to navigate the OSD and select the desired display mode and routing. Configure PIP, PAP, Quad View, Windows or video-wall modes as needed, and save frequently used layouts to one of the eight programmable presets for quick recall.

Recommendations

For optimal results use HDMI cables of appropriate length and quality, ensure source resolutions and display capabilities are compatible with Full HD or combined video-wall resolutions, and verify EDID/handshake behavior when connecting mixed equipment. Save commonly used layouts to presets to streamline switching during presentations or events.
