Antenna omnidirezionale Panorama Antennas LPAMM-BC3G-26-3SP 5 dBi

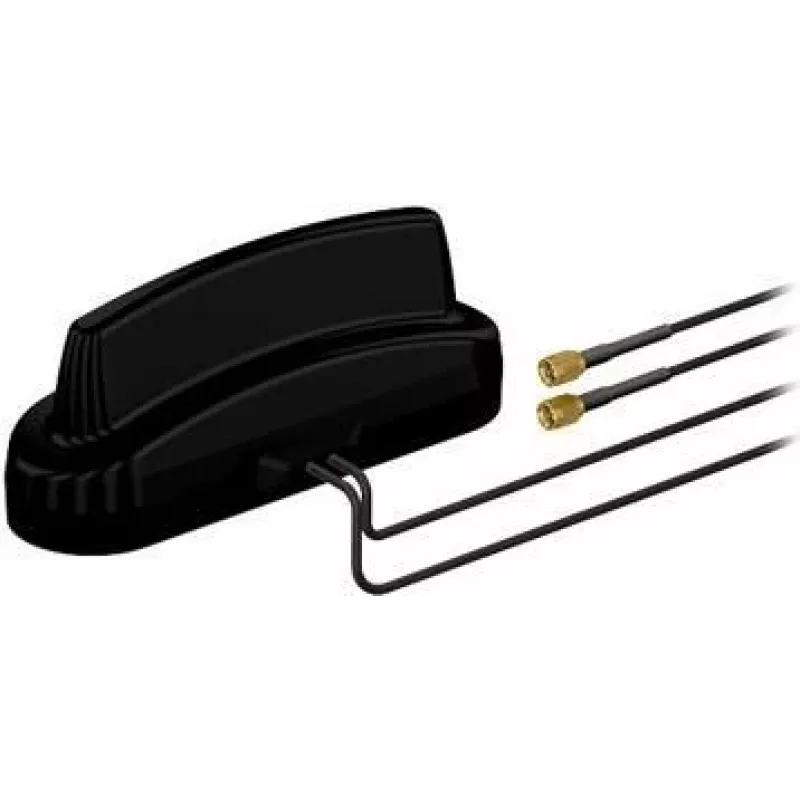

The Panorama Antennas LPAMM-BC3G-26-3SP is an omni-directional MIMO cellular/LTE antenna designed for IoT and M2M use. It covers the frequency range 698–960 MHz and 1710–3800 MHz, provides 5 dBi peak gain and has a 50 Ω impedance. The compact weatherproof housing contains two antenna elements with effective isolation and correlation and is supplied with 3 m cables terminated with SMA plugs for straightforward connectivity.

Advantages

The antenna offers omni-directional reception with MIMO capability in a low-profile, robust housing suitable for outdoor use. It supports the key global cellular and LTE bands within its specified frequency range, delivers 5 dBi gain for improved signal strength, and includes integrated 3 m SMA-cabled connections for plug-and-play installation. The mounting design enables secure, weatherproof attachment through a single-hole bush and an adhesive sealing pad, and it can be mounted on non-conductive panels when required.

Suitable for

Key specifications

How to use

Prepare the mounting surface and, if required, ensure it is non-conductive for the specified mounting option. Feed the integrated SMA-terminated cables through the mounting hole and secure the antenna using the supplied mounting bush and adhesive sealing pad to achieve a weatherproof seal. Connect the SMA plugs to the corresponding modem, router or terminal ports. Position the antenna vertically for omni-directional coverage and ensure the area around the antenna is free of large metallic obstructions for optimal performance.

Recommendations

For best results, mount the antenna at a height and location with clear line-of-sight to the cellular network and away from large metal structures. Verify connector tightness and the integrity of the sealing pad after installation. Use compatible SMA ports and check device documentation for MIMO port ordering where applicable.
