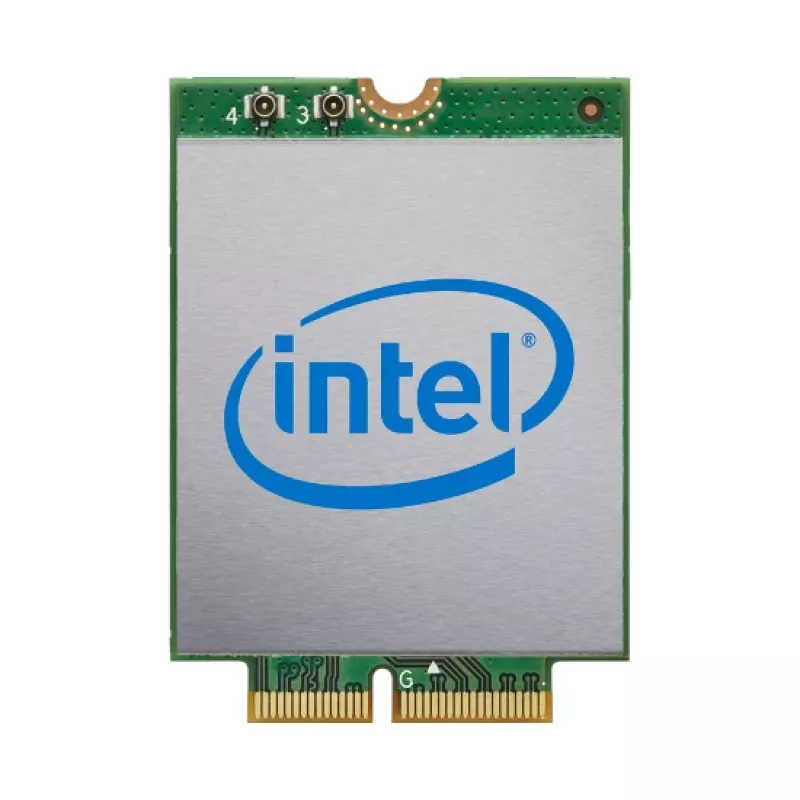

INTEL adattatore di rete - Wi-Fi 6E AX210 - M.2 2230 - 802.11ac 802.11ax Bluetooth 5.2

The Internal WLAN Intel Wi‑Fi 6E AX210 is a PCI Express network card that delivers high-speed wireless connectivity up to 2400 Mbit/s. Compliant with the Wi‑Fi 6 (802.11ax) standard and featuring a 2x2 antenna configuration, this Intel AX210 module is designed for reliable wireless performance and improved efficiency in dense network environments. It supports modern multi-user access methods such as Orthogonal Frequency‑Division Multiple Access (OFDMA) to enable simultaneous low‑data‑rate transmissions from several devices.

Advantages

The Intel Wi‑Fi 6E AX210 provides increased throughput, better spectral efficiency in congested networks, and support for OFDMA for multi‑user communication. Its PCI Express host interface and compact internal form factor simplify installation in compatible desktop or embedded systems. The 2x2 antenna setup balances performance and power consumption for typical consumer and professional use.

Suitable for

• Upgrading desktop or small form‑factor PCs to Wi‑Fi 6 (802.11ax)
• Wireless connectivity in home offices and apartments with multiple devices
• Use in environments with congested Wi‑Fi where OFDMA can improve efficiency

Key specifications

• Brand: INTEL
• Model: AX210.NGWG
• Standard: Wi‑Fi 6 (802.11ax)
• Maximum data transfer rate: 2400 Mbit/s
• Host interface: PCI Express
• Connectivity technology: Wireless
• Form factor: Internal WLAN card
• Weight: 0.0028 kg

How to use

Install the AX210 card into a compatible PCI Express slot on the motherboard following the system manufacturer’s instructions. Ensure antennas or antenna connectors are properly attached if required by your system layout. After physical installation, boot the system and install the appropriate Intel drivers and firmware for the AX210 (available from Intel or your system vendor) to enable full Wi‑Fi 6 functionality including OFDMA support.

Recommendations

For optimal performance, use the AX210 in systems with up‑to‑date drivers and firmware, place the host device to minimize radio obstructions, and pair the card with a Wi‑Fi 6 or Wi‑Fi 6E access point that supports OFDMA and required frequency bands.
