Intellinet 167222 Cat6 FTP RJ45 keystone jack, senza attrezzi, schermato, lega di zinco

With a 50-micron gold-plated contact and a zinc alloy housing, the Intellinet 167222 keystone jack delivers reliable Gigabit Ethernet performance even in high-interference environments. This shielded Cat6 FTP module terminates 22-26 AWG solid or stranded conductors without tools, ensuring fast, consistent installations.

Overview

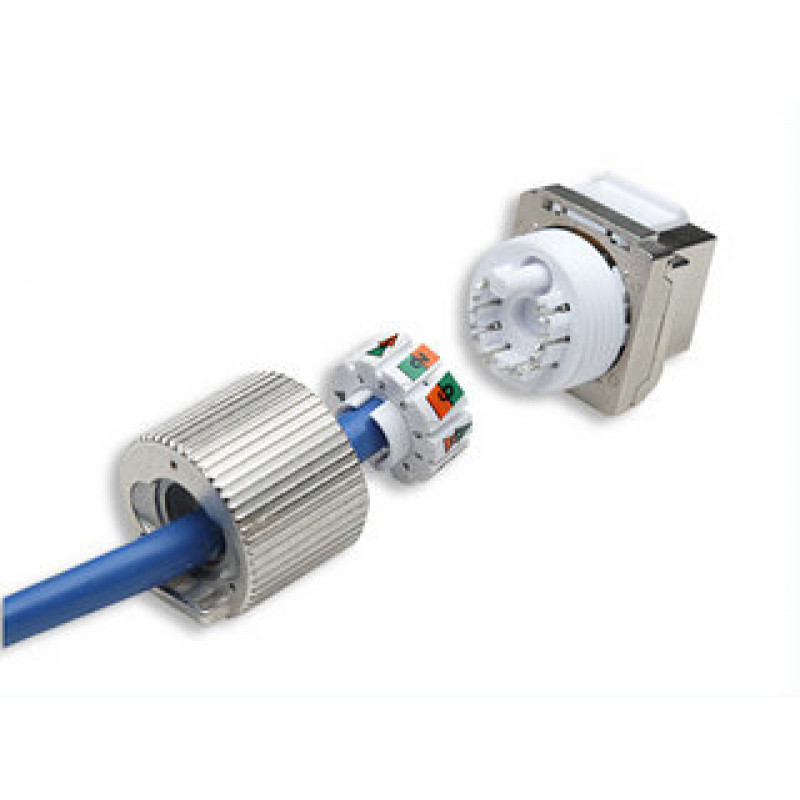

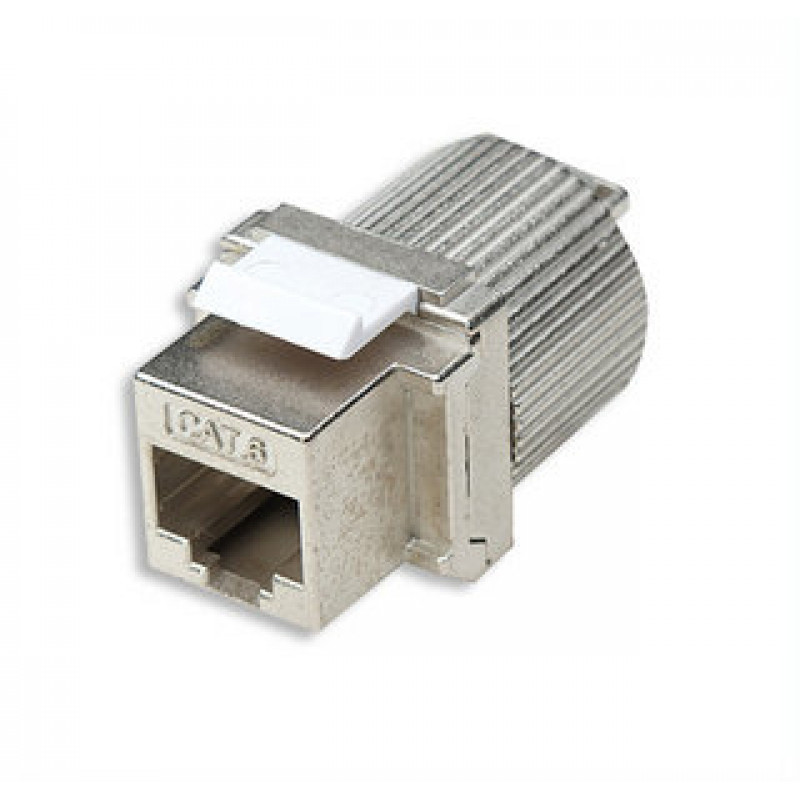

The Intellinet 167222 is a shielded RJ45 keystone module engineered for Cat6 (Class E) networks. Its metal housing provides excellent EMI/RFI protection, making it ideal for environments with high electromagnetic interference. The tool-less IDC termination allows for quick and secure wire connections without the need for a punch-down tool, reducing installation time and ensuring consistent performance.

What stands out

• Shielded FTP design with zinc alloy housing for superior EMI/RFI rejection
• Tool-less IDC termination supports 22-26 AWG solid or stranded wire
• 50-micron gold-plated contacts ensure low contact resistance and corrosion resistance
• Supports PoE, PoE+, and UPoE for powering network devices
• High insertion cycle rating of 750 minimum for long-term durability
• UL 94V-0 flammability rating for enhanced fire safety

Technical details

• Connector type: RJ45 female
• Category: Cat6 (Class E)
• Shielding: FTP (Foiled Twisted Pair), shielded
• Termination: Tool-less IDC, color-coded for T568A/B
• Housing material: Zinc alloy (metal)
• Contact plating: 50 micron gold-plated
• Conductor compatibility: 22-26 AWG solid or stranded
• Flammability rating: UL 94V-0
• Standards compliance: ISO/IEC 11801, EN 50173, TIA/EIA-568-C.2
• Insertion cycles: 750 (minimum)
• Retention strength: 7.7 kg (minimum)
• Operating temperature: -10°C to 60°C
• Humidity: 10% to 90% RH (non-condensing)
• Dielectric withstanding voltage: 1000V AC RMS, 60Hz, 1 min
• Insulation resistance: 500 MΩ min @ 100V DC
• Current rating: 1.5 Amps max

Our verdict

A robust and installer-friendly keystone jack that combines tool-less convenience with metal shielding for dependable Cat6 connectivity in demanding environments.
