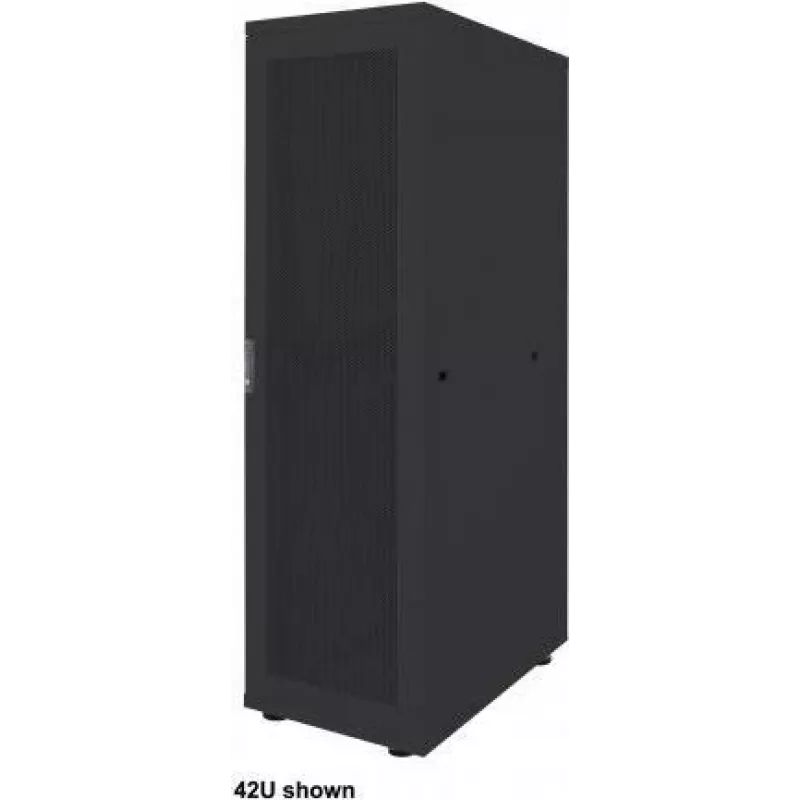

Intellinet Basic armadio di rete a pavimento 19" 26U - nero (RAL 9005) - portata 800 kg

The Intellinet Basic 26U 19" Floor-Standing Network Cabinet is a robust and reliable solution for organizing and securing your network equipment. Designed for professional environments, this cabinet offers ample space for servers, switches, patch panels, and other 19-inch rack-mountable devices. With a static load capacity of 800 kg, it provides exceptional stability and durability. The cabinet features a tempered glass front door and a steel rear door, both lockable, ensuring security and visibility. Removable side panels allow easy access for installation and maintenance. Adjustable mounting rails accommodate equipment of varying depths, while top and bottom cable entries with brush strips keep cables organized and dust-free. Finished in black RAL 9005, this cabinet blends seamlessly into any data center or server room.

Advantages

• High load capacity of 800 kg supports heavy equipment
• Lockable front and rear doors provide security
• Tempered glass front door allows equipment monitoring without opening
• Removable side panels for easy access
• Adjustable mounting rails for flexible equipment installation
• Cable management with brush strips at top and bottom
• Durable SPCC cold rolled steel construction

Suitable for

• Data centers and server rooms
• IT and network infrastructure
• Enterprise and small business environments
• Housing servers, switches, patch panels, and UPS systems

Key specifications

• Rack capacity: 26U
• Rack standard: 19 inch (48.3 cm)
• Cabinet type: Floor-standing
• Colour: Black (RAL 9005)
• Material: SPCC cold rolled steel
• Front door: Tempered glass with steel frame, lockable
• Rear door: Steel, lockable
• Side panels: Removable and lockable
• Static load capacity: 800 kg
• Cable entry: Top and bottom with brush strips
• Mounting rails: Adjustable depth (front and rear)
• Ventilation: Passive, fan unit ready (top panel)
• Protection class: IP20
• Feet: Levelling feet included
• Castors: Optional (not included)
• Steel thickness: Frame 1.2 mm, mounting rails 1.0 mm, panels 0.8 mm
• Compliance: RoHS, CE

Recommendations

For optimal cable management, pair this cabinet with Intellinet patch panels and cable management accessories. Ensure adequate ventilation by installing optional fan units if deploying high-density equipment.
