Interruttore a chiave Eaton M22-WRS-A1

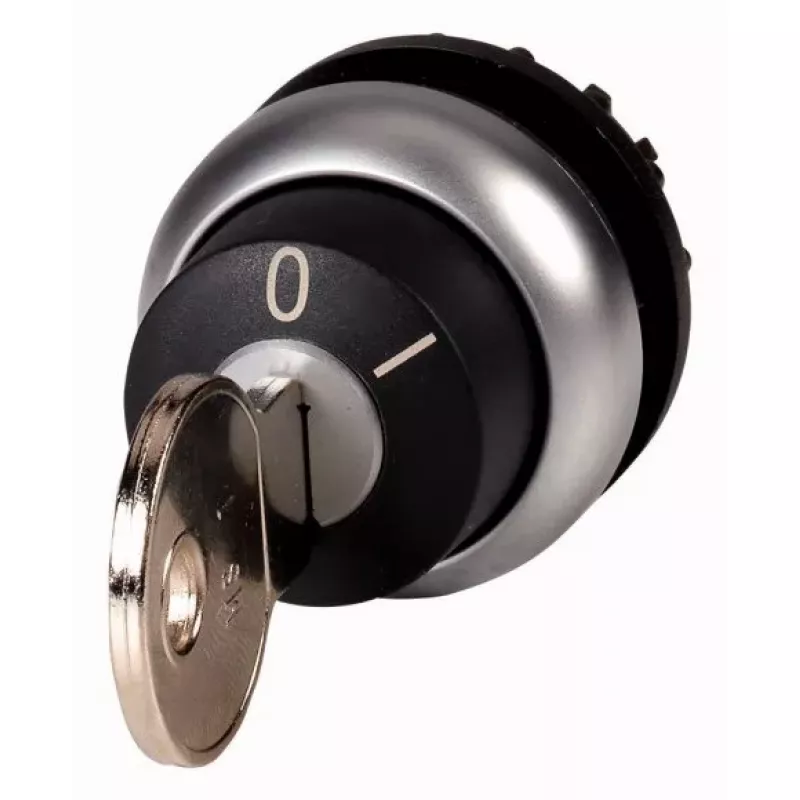

The Eaton M22-WRS-A1 key-operated switch is designed for controlled access and reliable operation in control systems. It has a compact plastic housing finished in black and silver and dimensions of 29.7 mm × 39.6 mm × 29.7 mm, making it suitable for installation in confined panels or cabinets. The switch mechanism is operated by a removable key to prevent unauthorized operation and to provide clear on/off or multi-position control depending on panel wiring.

Advantages

The key-operated design ensures that only authorized personnel can change the switch state, reducing accidental or unauthorized operation. The durable plastic housing offers electrical insulation and resistance to typical workshop or industrial environments while keeping the unit lightweight. Its compact footprint simplifies integration into existing control panels and reduces the need for extra mounting space.

Suitable for

• Access control in machinery and production lines
• Secure power or function enable/disable in control cabinets
• Areas where operator authorization is required
• Small enclosures and retrofit panel applications

Key specifications

• Actuation: key-operated switch mechanism
• Housing material: plastic with black and silver finish
• Dimensions (W × D × H): 29.7 mm × 39.6 mm × 29.7 mm
• Mounting: panel-mountable compact design
• Control type: manual key control for on/off or multi-position configurations (depending on wiring)

How to use

Install the Eaton M22-WRS-A1 into a standard panel cut-out suitable for its dimensions and secure it according to panel mounting instructions. Wire the switch contacts to the control circuit following the system electrical schematic and applicable safety standards. Insert the key and turn to the desired position to change the circuit state; remove the key if required to lock the switch in position. Ensure power is isolated during wiring and maintenance.

Recommendations

Use the key-operated switch in environments where controlled access is necessary. Verify compatibility with your control voltage and contact configuration before installation. Periodically inspect the housing and key mechanism for wear and clean contacts per maintenance procedures to ensure long-term reliability.
